Phaser 6180 Color Laser Printer Service Manual
Drum Erase Lamp (Y/M/C)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1.
Enter the Service Diagnostic menu (page 4-5).
2.
Open the Front Cover.
3.
Remove the Print Cartridges (page 8-9).
4.
Use a paper clip to secure the Interlock Switch.
5.
Perform the Drum Erase Lamp YMC test:

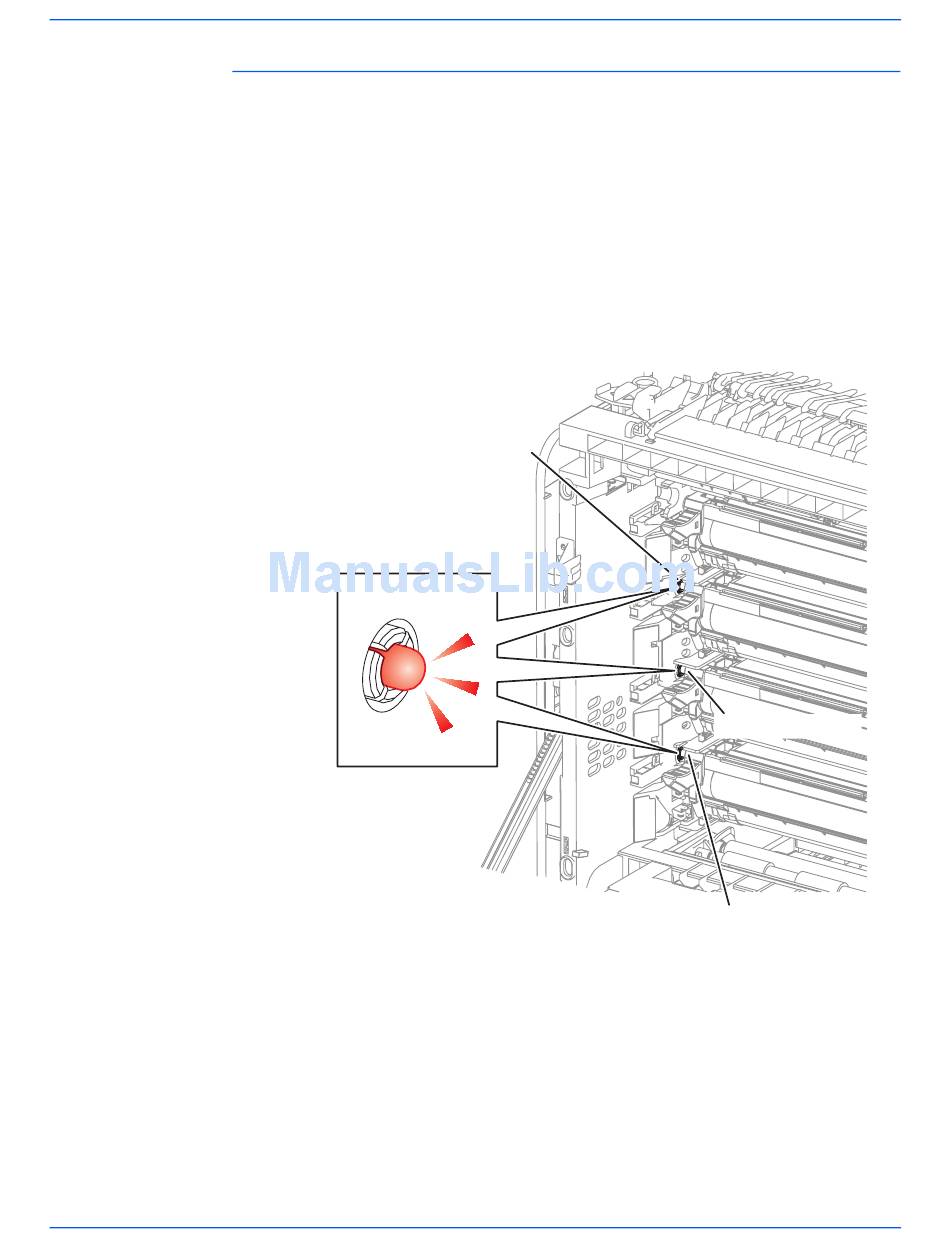

Drum Erase Lamp
6.
Verify that the Lamps are operating.
7.
Press the Cancel button to stop the Drum Erase Lamp YMC test.
8.
Remove the paper clip from the Interlock Switch.
YMC.
Cyan Erase Lamp
General Troubleshooting
Engine Diag
>
Motor Test
Magenta Erase Lamp
Yellow Erase Lamp
s6180-387
>
4-61
