Service Parts Disassembly
32
4.
Hold the knob of the Right Side Guide and move the Guide toward the
inside.
5.
Move the Left Side Guide toward the inside.
6.
While pressing down on the hooks securing the Right Guide, release the
claws from the notches of the Tray Base. Remove the Right Side Guide.
7.
While pressing down on the hooks securing the Left Guide, release the
claws from the notches of the Tray Base. Remove the Left Side Guide.

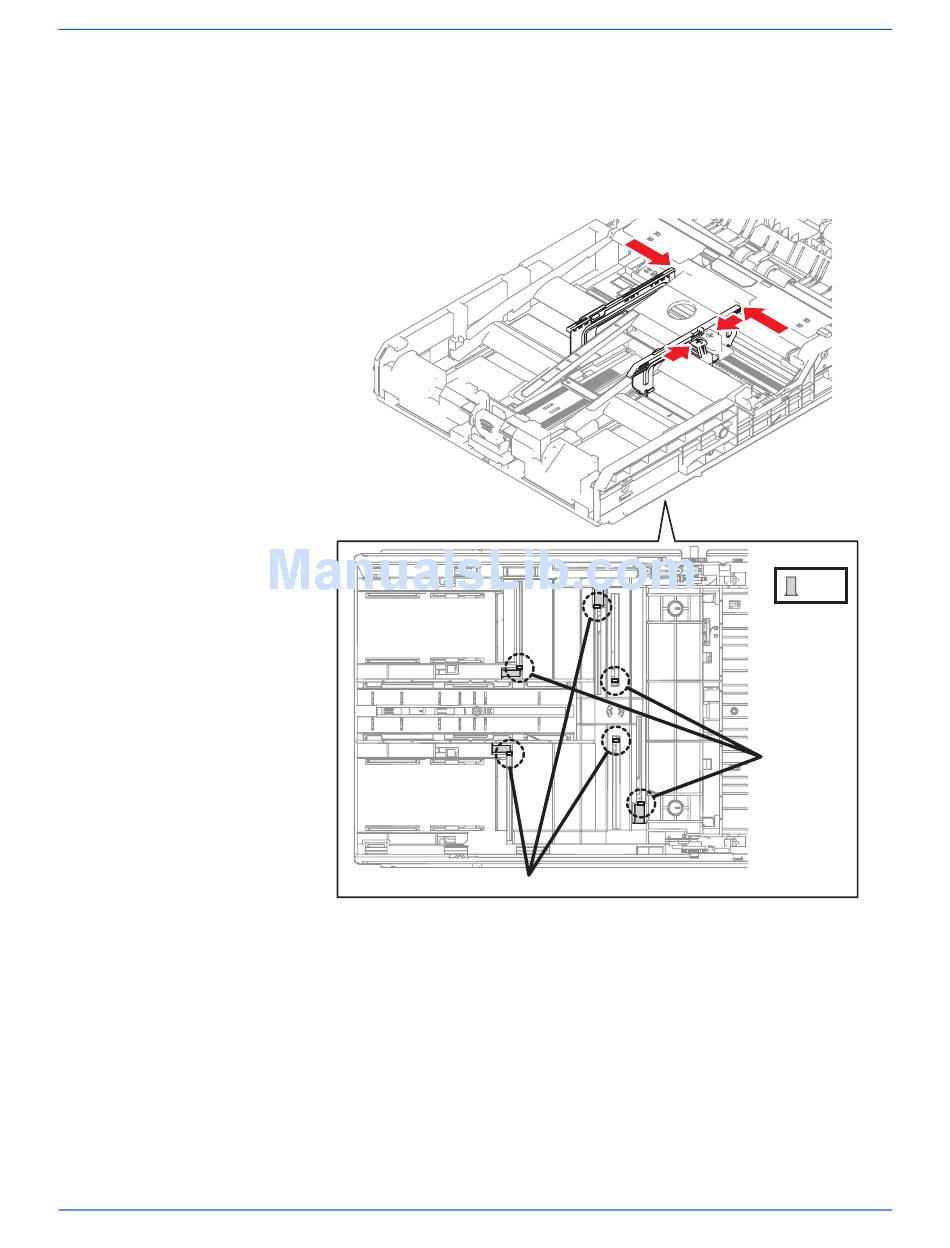

Left Side Guide
Phaser 6180 Color Laser Printer Service Manual
Hook
Right Side
Guide
s6180-187
