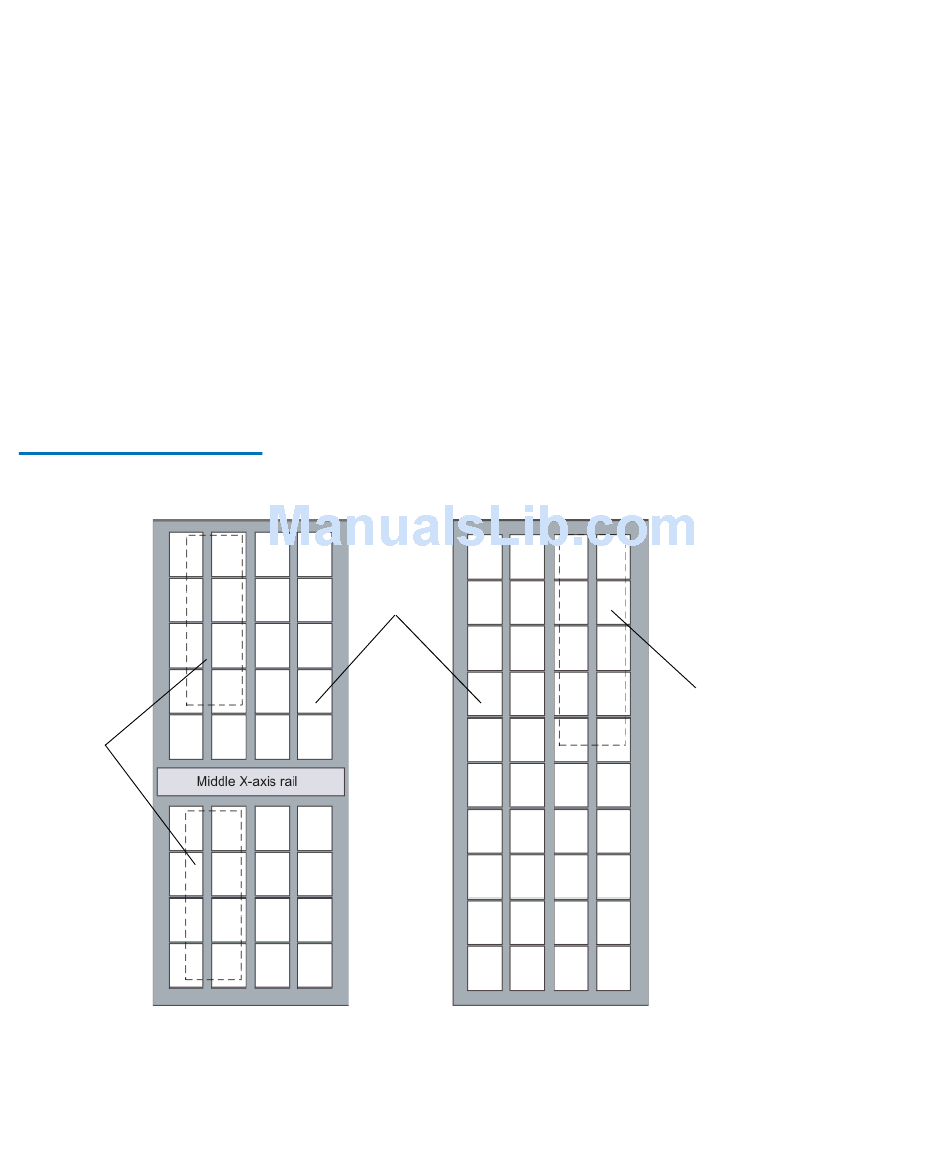

Figure 13 Expansion Module

drive cluster
(optional)
Scalar i2000 User's Guide
expansion modules for a total of eight modules. Expansion modules can
only be added to the right of the control module.
The expansion modules can accommodate the following components:
• I/O management unit (optional)
• Tape drives (optional)
• Cartridge storage
• I/E station
• AC power compartment (required only if drives are added)
If an expansion module contains only cartridges, all power is derived
from the control module.
cartridge
magazines
drive side
I/E station
(optional)
door side
Chapter 3 Description
Expansion Modules
85
