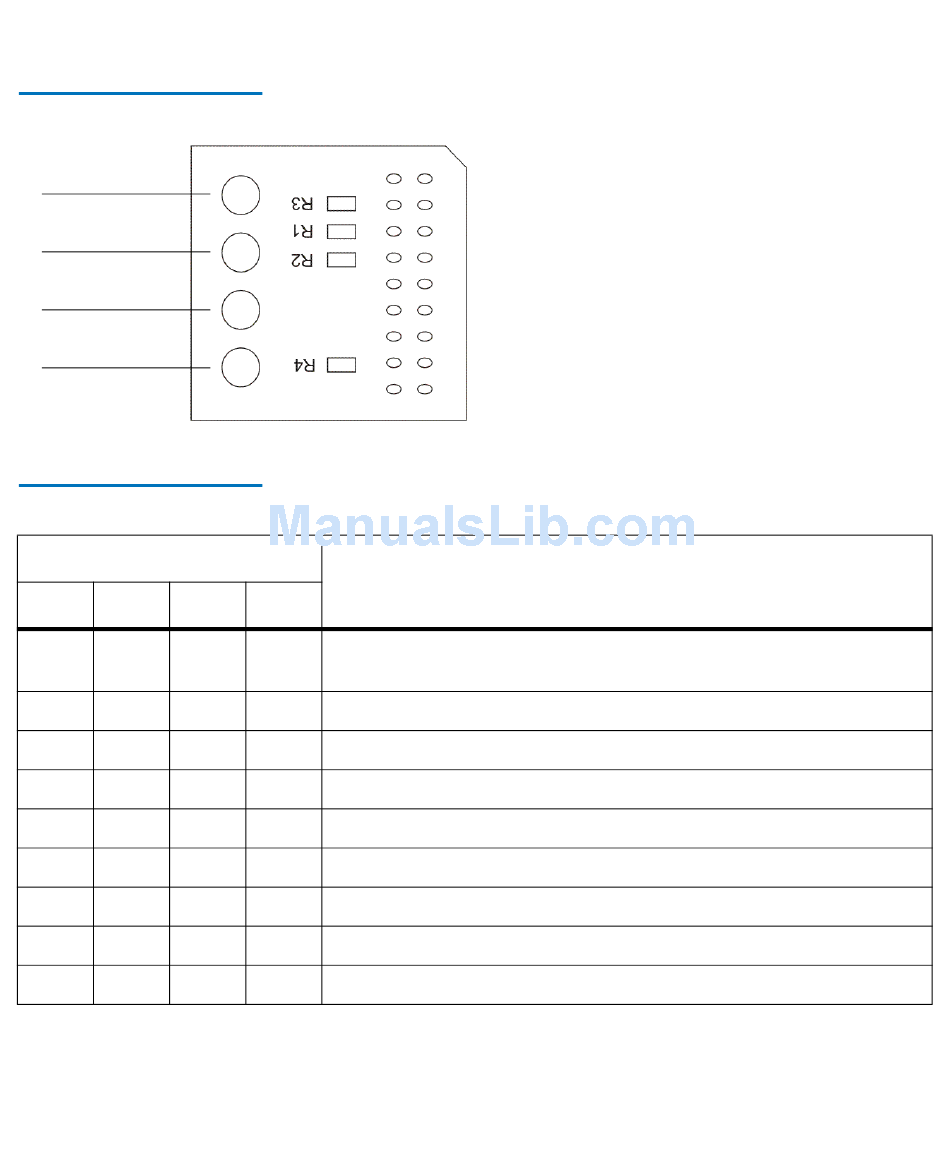

Figure 8 Locations of LBX
Terminator LEDs (Version 01)
4
3
2
1
Table 12 LBX LED Version 01
LED On/Off Combinations
1 2 3
Off Off Off
On Off Off
On On Off
On On On
On On On
On Off On
On On Off
On Off On
On Off Off
Scalar i2000 User's Guide
4 Explanation
Off Robotics are disabled, the access door is open, or the LBX terminator
is misaligned.
Off The library has one control module and no expansion modules.
Off The library has one control module and one expansion module.
Off The library has one control module and two expansion modules.
On The library has one control module and three expansion modules.
On The library has one control module and four expansion modules.
On The library has one control module and five expansion modules.
Off The library has one control module and six expansion modules.
On The library has one control module and seven expansion modules.
