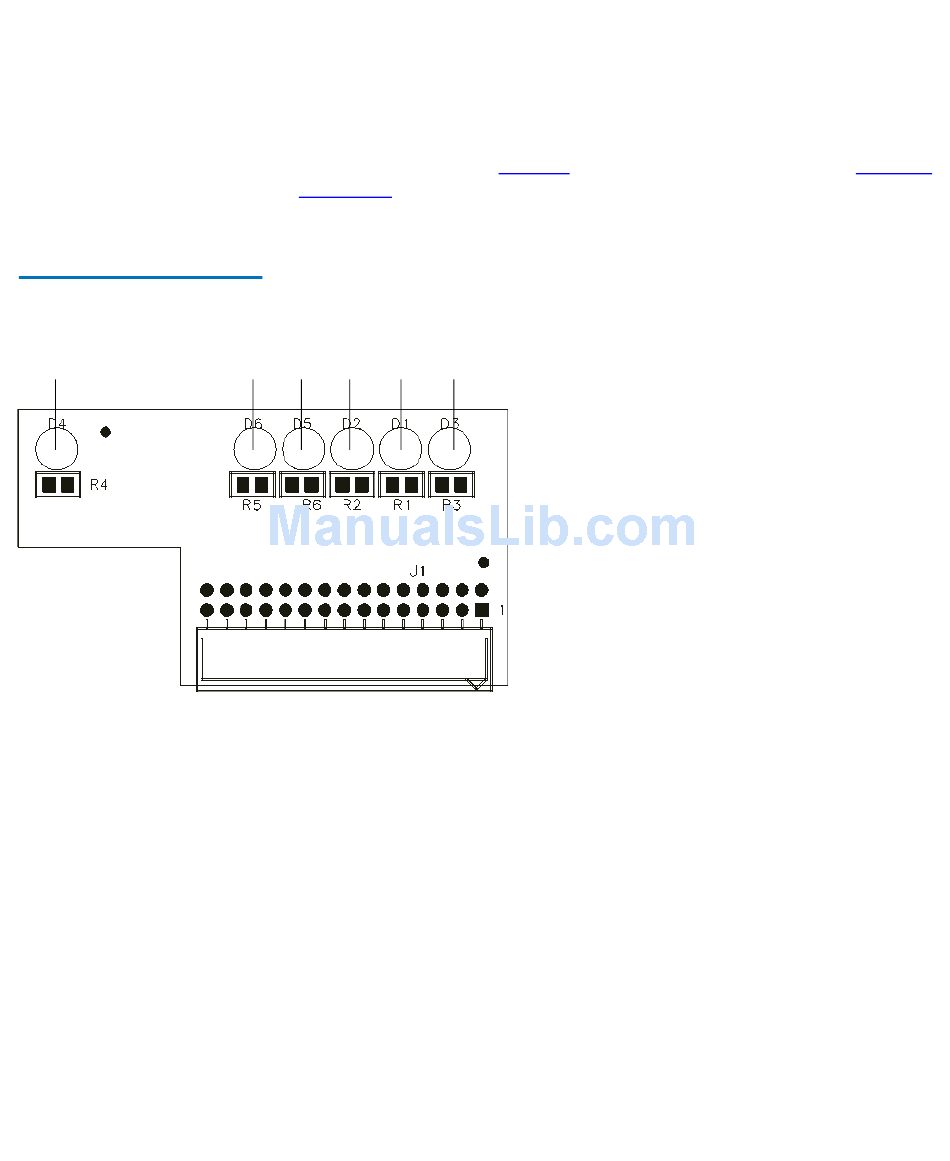

Figure 9 Locations of LBX
Terminator LEDs (Version 03)
1
Scalar i2000 User's Guide
LBX Terminator Version 03 LEDs
The LBX terminator has six green LEDs that indicate the presence of
modules in the library.
on page 69 describes how to interpret LED activity on the LBX
terminator.
2 3 4 5
Chapter 2 Troubleshooting Your Library
Figure 9 shows the locations of the LEDs.
6
Interpreting LEDs
2
Table 13
68
