Quantum scalar i2000 User Manual page 334

Chapter 5 Maintaining Your Library
Maintenance Actions
For information how to e-mail, print, or save text logs, see Mailing, Saving,
and Printing Test Logs on page 313.
There are two ways to run the FRU operational
5
FRU Operational Tests
tests. You can select the FRU test from the Verification Tests dialog box.
Alternatively, you can run the test from the Ticket Details dialog box if
that FRU is supported by the verification tests.

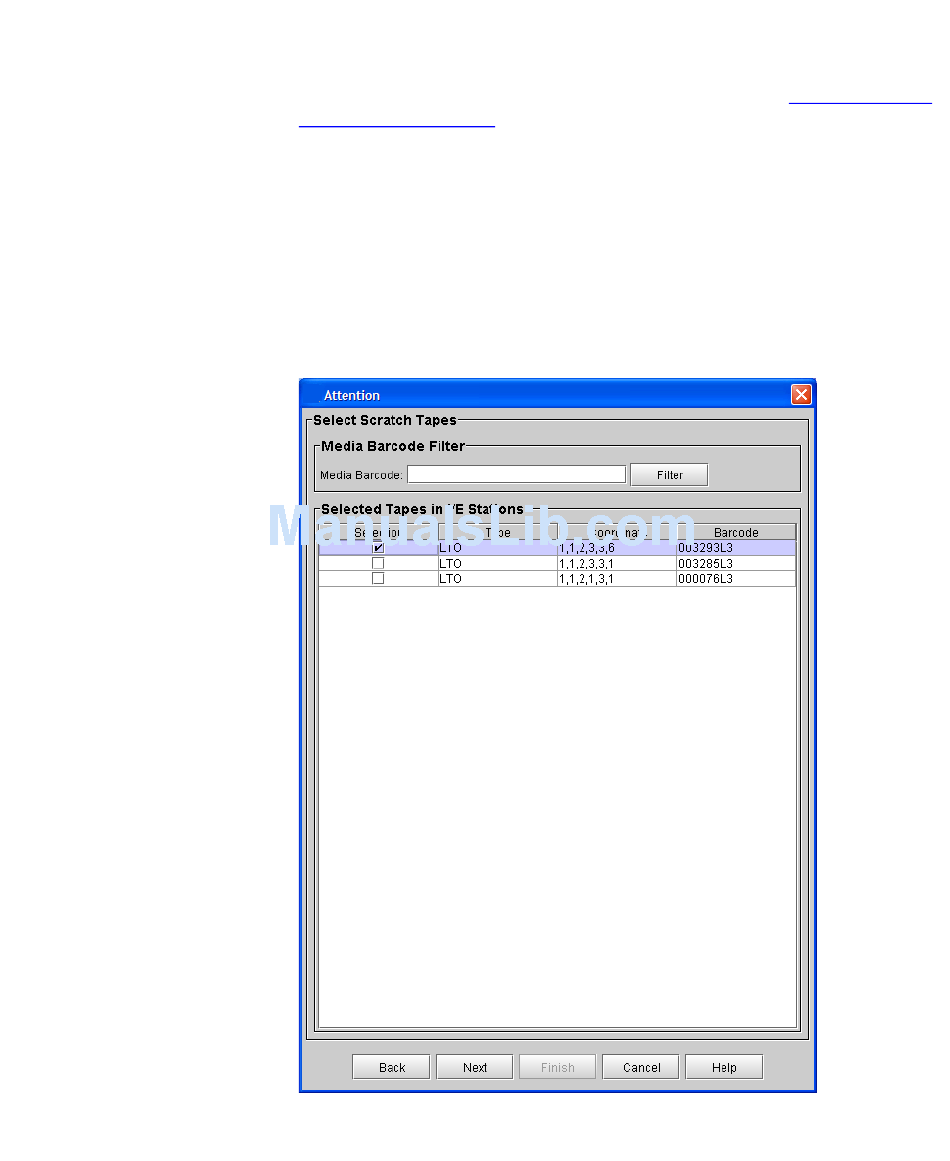

The screens displayed by the FRU operational tests vary, depending on
which subtest was selected. For example, if you click Picker Assembly, IE
Assembly, or Drive Sled Assembly, the following dialog box appears for
selecting a scratch tape.
Scalar i2000 User's Guide 321
