Figure 4 Rear View Of Fibre Channel Drive Sled (Uds-3) - Quantum scalar i2000 User Manual

Figure 4 Rear View of Fibre
Channel Drive Sled (UDS-3)
Scalar i2000 User's Guide

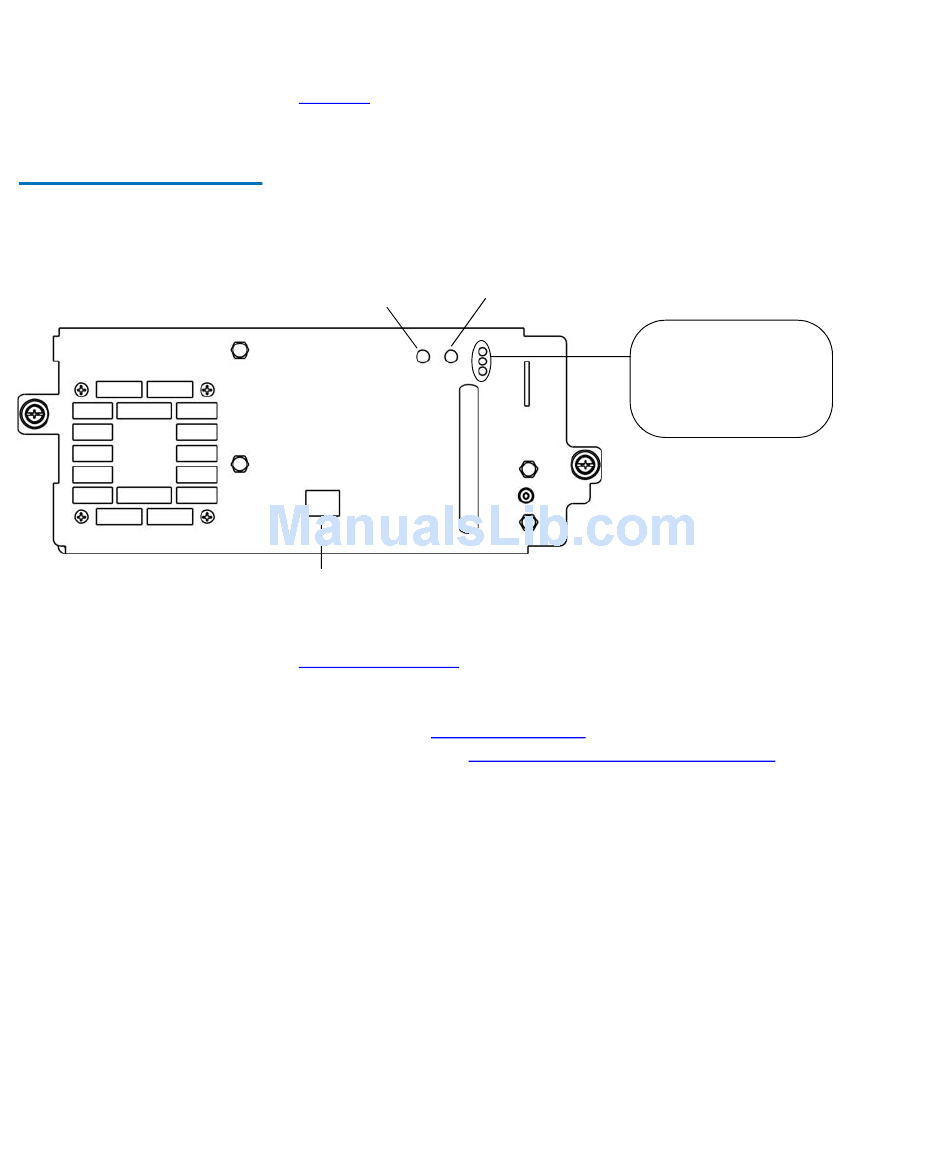

Figure 4 shows the locations of the status LEDs and the Fibre Channel
link LED on the rear of a UDS-3 drive sled.
FC Link
LED for future use
LED
fibre port
Table 6 on page 58
activity that you might see on the rear of a UDS-2 or UDS-3 drive sled.
For a description of how the blade status LEDs appear under normal
conditions, see table 7 on page
drive link LED, see
Chapter 2 Troubleshooting Your Library
describes how to interpret the drive sled status LED
59. For information about interpreting the
Drive Sled Fibre Channel Link LED
Interpreting LEDs
status LEDs:
- top = blue
- middle = amber
- bottom = green
on page 59.
