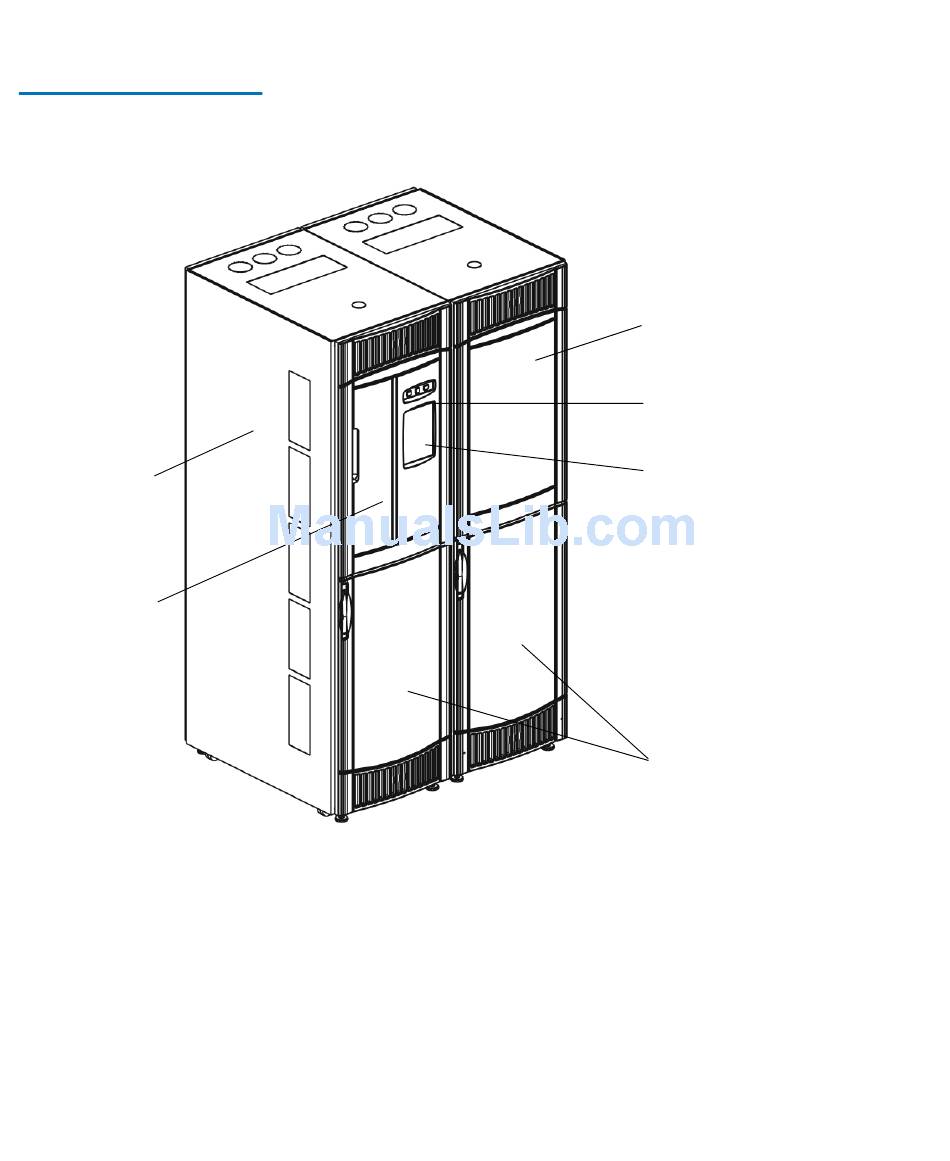

Figure 11 Front View Of A Control Module And Expansion Module - Quantum scalar i2000 User Manual

Figure 11 Front View of a
Control Module and Expansion
Module
control module
I/E station
Scalar i2000 User's Guide
The library is designed for ease of installation, configuration, and field
upgrades. The minimum library configuration consists of one control
module. You can add up to seven expansion modules as storage and tape
drive requirements change. The maximum library configuration can
accommodate from 102 to 3,492 LTO cartridges or from 100 to 2,915 DLT
cartridges, from 1 to 96 tape drives, and from 1 to 8 Import/Export (I/E)
stations.
Chapter 3 Description
expansion module
operator panel
touch screen
access doors
