Quantum scalar i2000 User Manual page 248

Scalar i2000 User's Guide

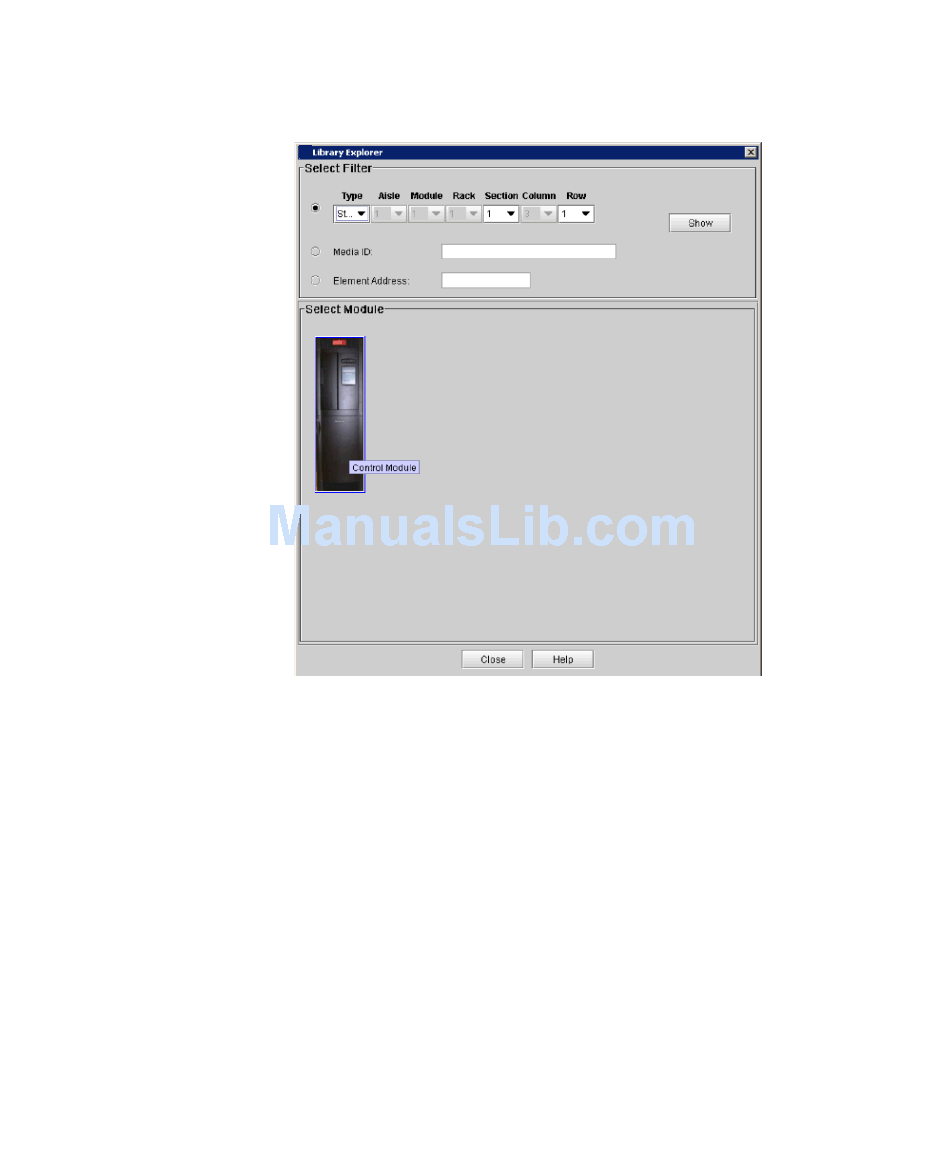

The Library Explorer dialog box appears.
2 You can display library data using either the Select Filter options or
clicking on a particular module in the Select Module area.
• In the Select Filter area, you can search for and display specific
criteria according to device type and location coordinates, or by
Media ID.
• Select the Device Type filter, and then from the Type drop-
down list, click the appropriate device type: IE (I/E Station),
Storage, or Drive. Click Show. The Module dialog box
displays a graphical view of the library elements according to
your Type filter choices.
• To search for a specific cartridge according to the cartridge's
barcode, select the Media ID filter, type the barcode in the
Media ID field, and then click Show. The Module dialog box
displays the specific cartridge highlighted in red within the
module where it is located.
Chapter 5 Maintaining Your Library
Maintenance Actions
235
