I/O Blade Fibre Port Link
LED

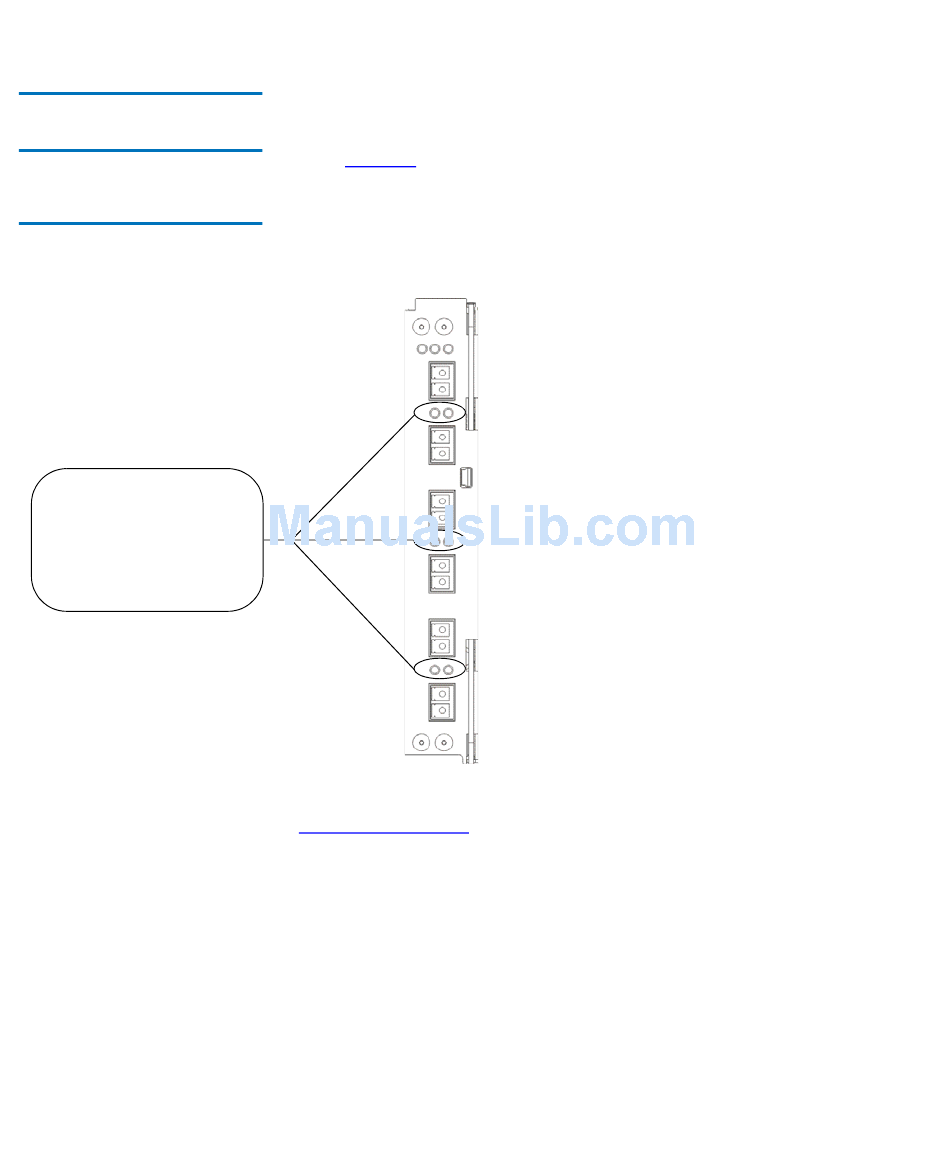

Figure 5 Locations - Colors of
I/O Blade Fibre Port Link LEDs
I/O blade link LEDs
- left = green (belongs
to port below)
- right = green (belongs
to port above)
Scalar i2000 User's Guide
The link LED for an I/O blade fibre port is located next to the port. On the
2 I/O blade faceplate, black lines indicate how each link LED belongs to a
port. Figure 5 shows the locations of the I/O blade Fibre port link LEDs.
Table 10 on page 63
you might see. There are two different models of I/O blade: 6404 and
7404. LED behavior varies based on which model is installed in the
library.
Chapter 2 Troubleshooting Your Library
describes how to interpret the link LED activity that
Interpreting LEDs
62
