Scalar i2000 User's Guide

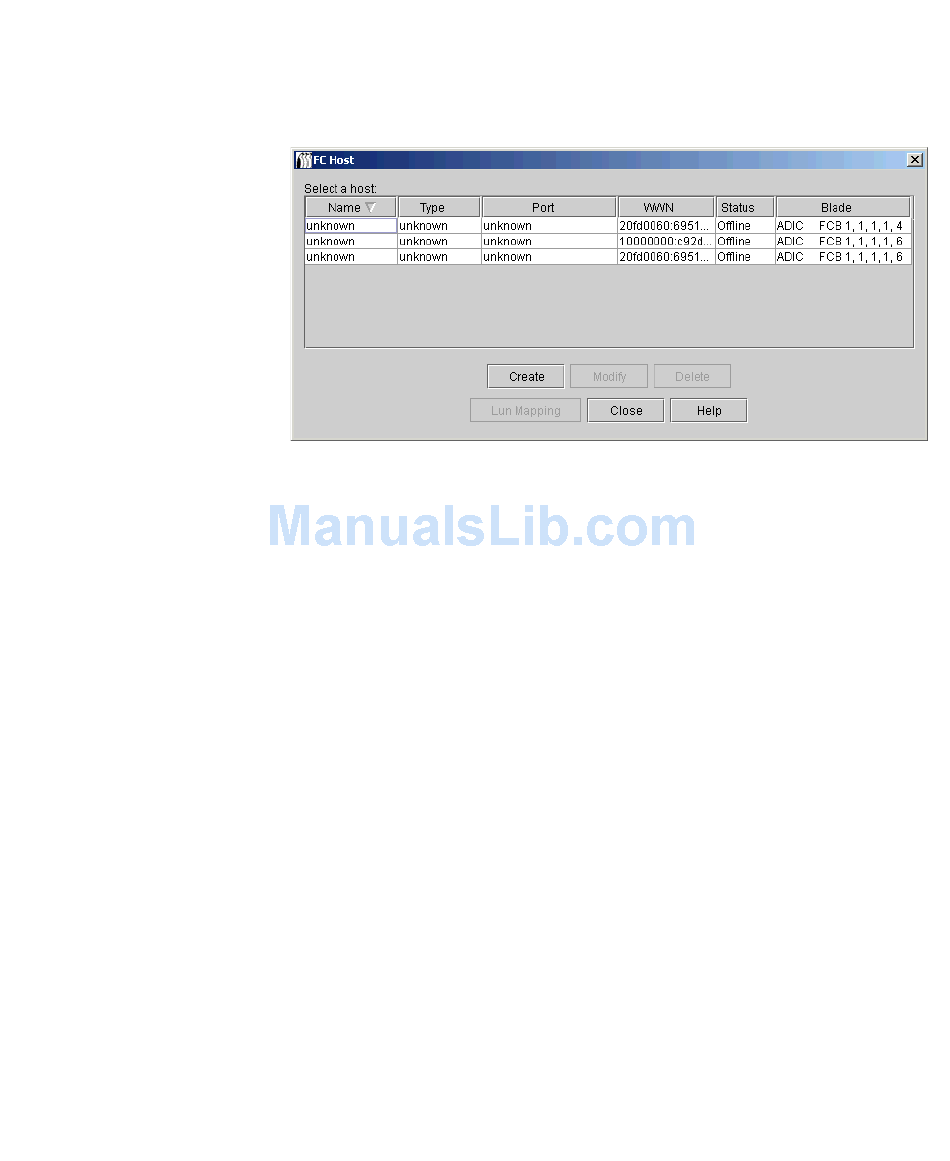

The FC Host dialog box appears.
Unless you have installed HRS on the host, only the host's port, blade, and
World Wide Name (WWN) appear. "Online" status appears when the
host initially registers, though it will not update without HRS. If HRS is
installed, the host's name, operating system, and patch level also appear.
Adding, Modifying, and Deleting FC Hosts
You can add and configure FC hosts without powering down the system.
Manually add an FC host if it was not already connected to the library
when it was turned on.
Adding an FC Host
1 Log on as an administrator.
2 Make sure that you are viewing the physical library. From the View
menu, click the name of the physical library.
3 Click Setup→ Device→ Access→ FC Host.
The FC Host dialog box appears.
4 Click Create.
The Add Host Data dialog box appears.
5 Use the check boxes under Select Blades to select at least one blade
that the host will access.
Chapter 4 Configuring Your Library
Configuring Devices
4
4
158
