Kyocera Mita DC-2560 Service Manual page 98

1AH
2. Paper conveying section

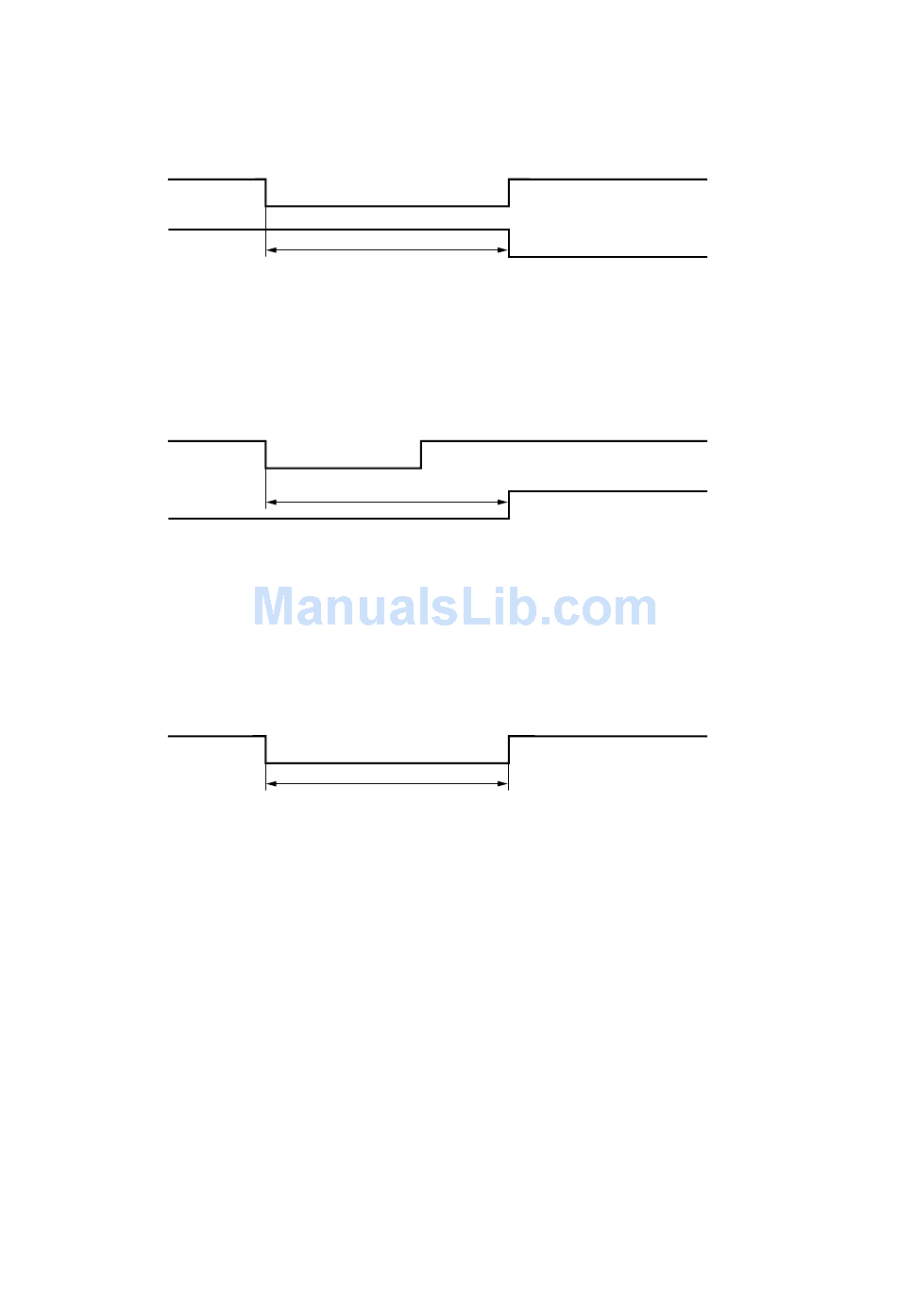

• The registration/transfer (JAM code 30)
The eject switch (ESW) fails to turn off within 3277 ms after the registration clutch
(RCL) has turned on.
RCL
ESW
The registration switch (RSW) fails to turn off within 3850 ms after the registration
clutch (RCL) has turned on.
RCL
RSW
3. Fixing section
• The fixing/eject (JAM code 50)
The eject switch (ESW) fails to turn off within 4118 ms after the eject switch (ESW)
has turned on.
ESW
2-2-4
3277 ms
Timing chart 2-2-6
3850 ms
Timing chart 2-2-7
4118 ms
Timing chart 2-2-8
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
