7. Attach the scanner wire of the machine front to the each pulley with the following
procedure.
1 Run the scanner wire with the round terminal along the groove in the inner
scanner (machine rear) pulley on light source unit 2, from bottom to top.
2 Fit the round terminal of the Step 1 to the pressure adjuster at the right side of
the machine.
3 Run the scanner wire with the ball along the groove in the scanner pulley of the
machine from bottom to top.
4 Run the scanner wire with the ball of the Step 3 along the groove in the outer
scanner (machine front) pulley on light source unit 2, from bottom to top.
5 Hook the ball of the Step 4 onto the tension spring at the left side of the
machine.
Pressure adjuster
Scanner wire drum
Machine front
3-3-46
2
Round terminal
Scanner wire

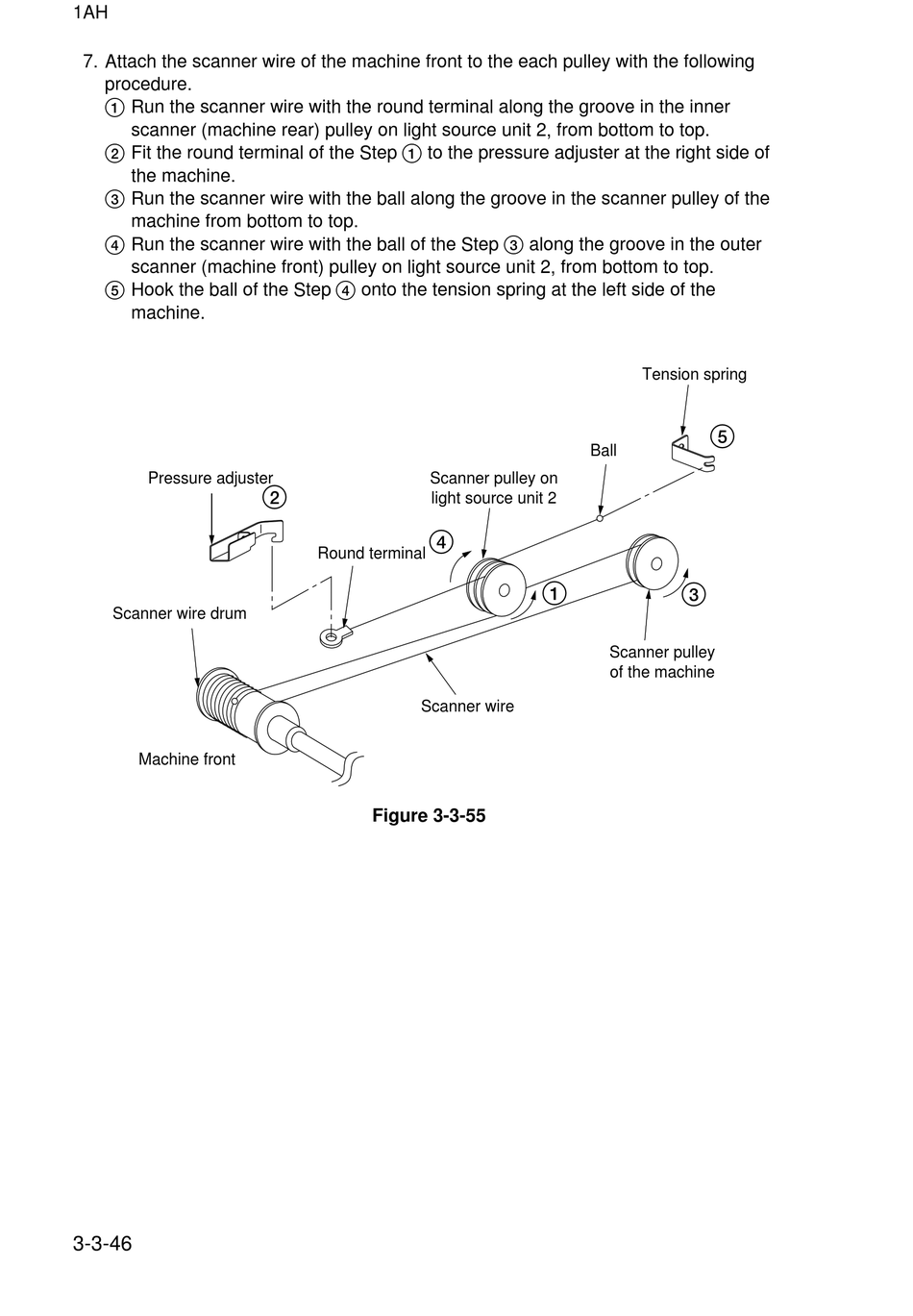

Figure 3-3-55
Ball
Scanner pulley on
light source unit 2
4
1
Tension spring
5
3
Scanner pulley
of the machine
