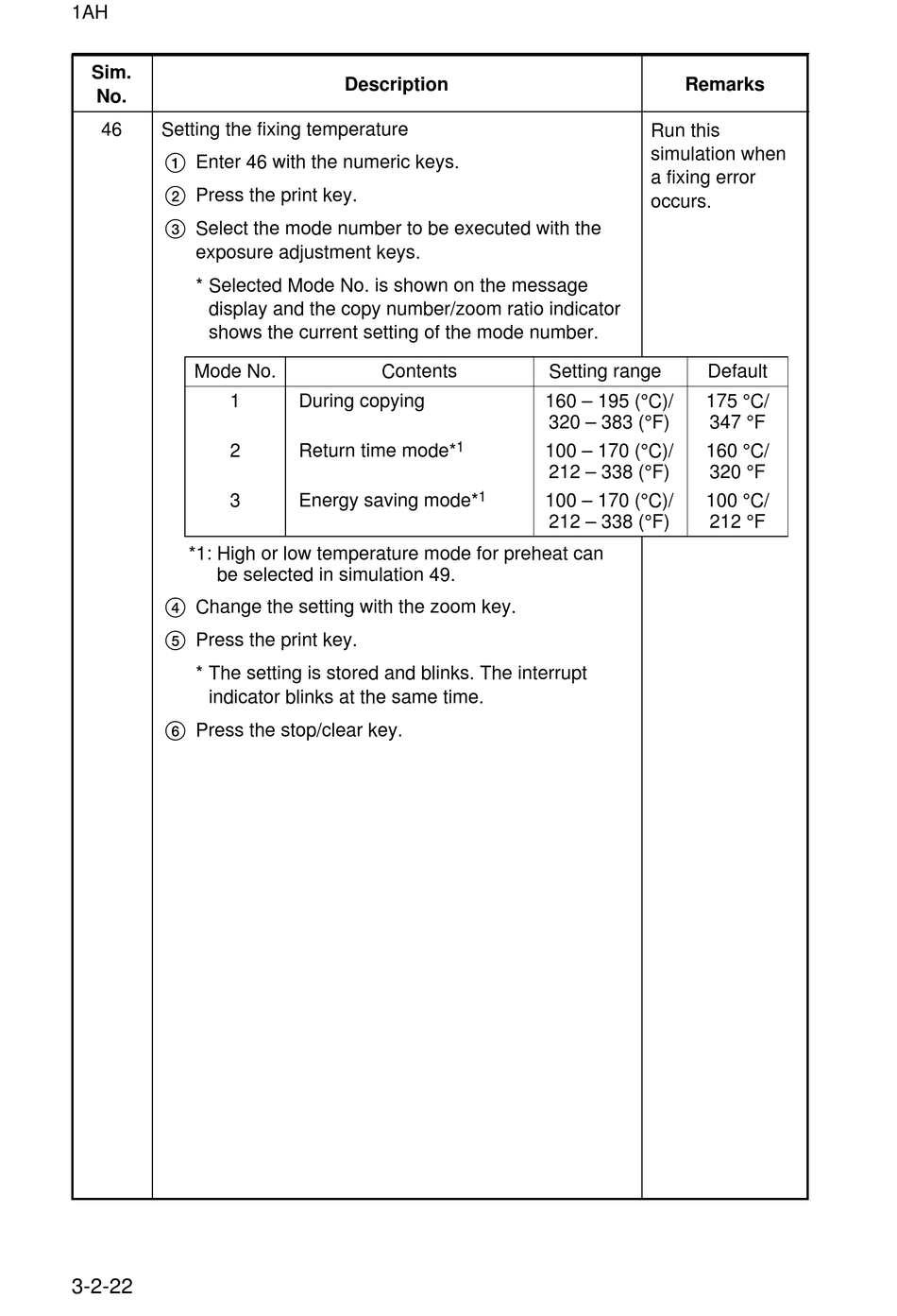

Kyocera Mita DC-2560 Service Manual page 173

1AH
Sim.
No.
46 Setting the fixing temperature
1 Enter 46 with the numeric keys.
2 Press the print key.
3 Select the mode number to be executed with the
exposure adjustment keys.
* Selected Mode No. is shown on the message
display and the copy number/zoom ratio indicator
shows the current setting of the mode number.
Mode No.
1
2
3
*1: High or low temperature mode for preheat can
be selected in simulation 49.
4 Change the setting with the zoom key.
5 Press the print key.
* The setting is stored and blinks. The interrupt
indicator blinks at the same time.
6 Press the stop/clear key.
3-2-22
Description
Contents
During copying
1
Return time mode*
Energy saving mode*
Setting range
160 – 195 (°C)/
320 – 383 (°F)
100 – 170 (°C)/
212 – 338 (°F)
1
100 – 170 (°C)/
212 – 338 (°F)
Remarks
Run this
simulation when
a fixing error
occurs.
Default
175 °C/
347 °F
160 °C/
320 °F
100 °C/
212 °F
