(1-3) Removing the upper paper feed pulley

Procedure
1. Removing the primary paper feed unit. (see page 3-3-109)
2. Remove the two stop rings.
3. Remove the paper feed clutch wires from the notches on the rear of the paper feed
housing.
4. Remove the upper paper feed pulley moving the upper paper feed shaft in the
direction of the arrow as shown (Figure 3-3-107).
* When refitting the upper paper feed pulley, keep the side of the one-way clutch
(blue end) toward the machine front (the opposite side of the gear).

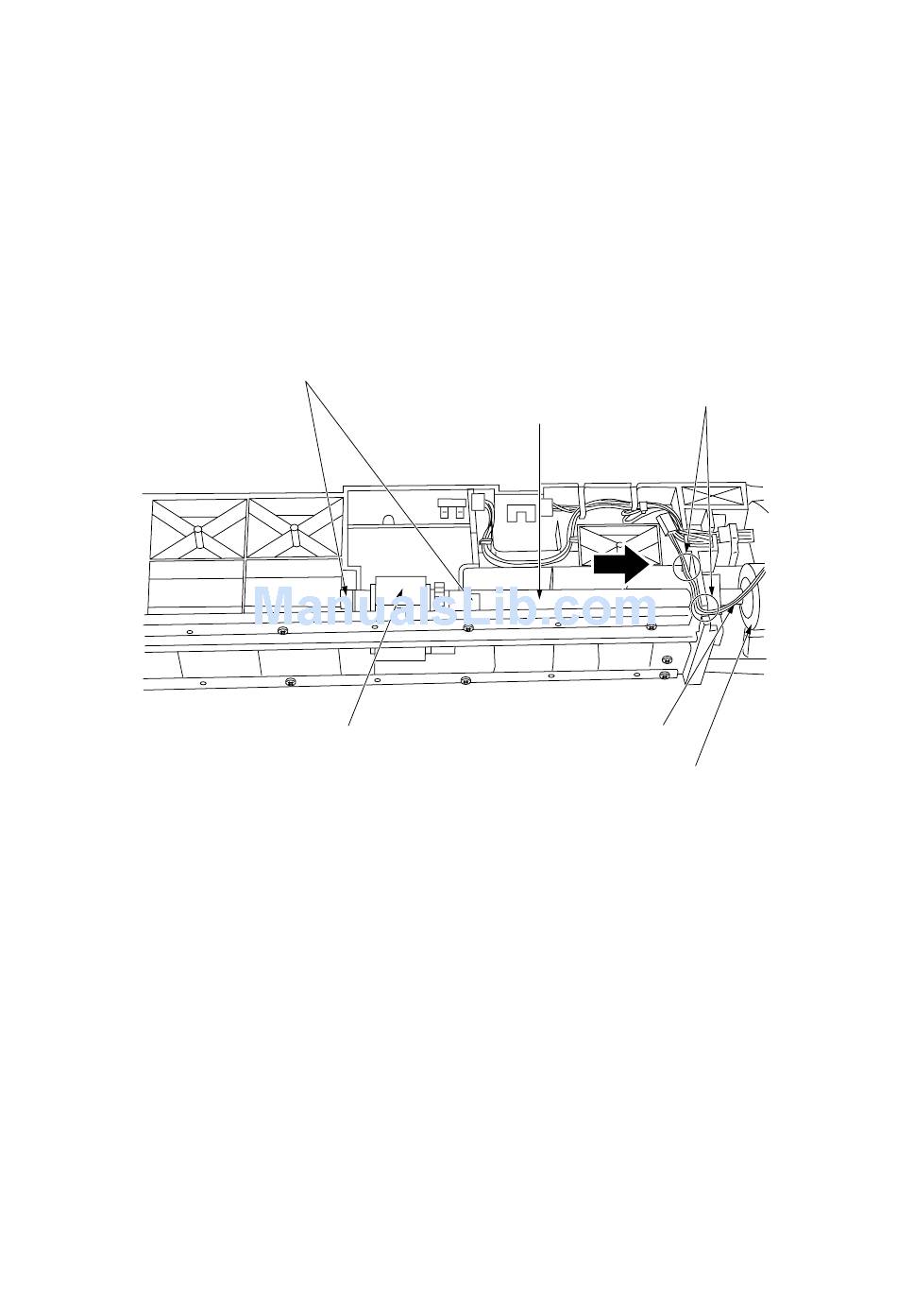

Upper paper feed pulley
5. Refit all the removed parts.
Stop rings
Figure 3-3-107
Upper paper feed shaft
Paper feed clutch
1AH
Notches
Wires
3-3-111
