3. Remove the transfer charger front and rear lids.
4. Remove the ten claws described in the circle, and then take off the separation
guide.
5. Remove the charger wire retainer pins, charger spring and then the charger wires.
Transfer charger rear lid
Charger springs
3-3-80
Separation guide
Charger wires

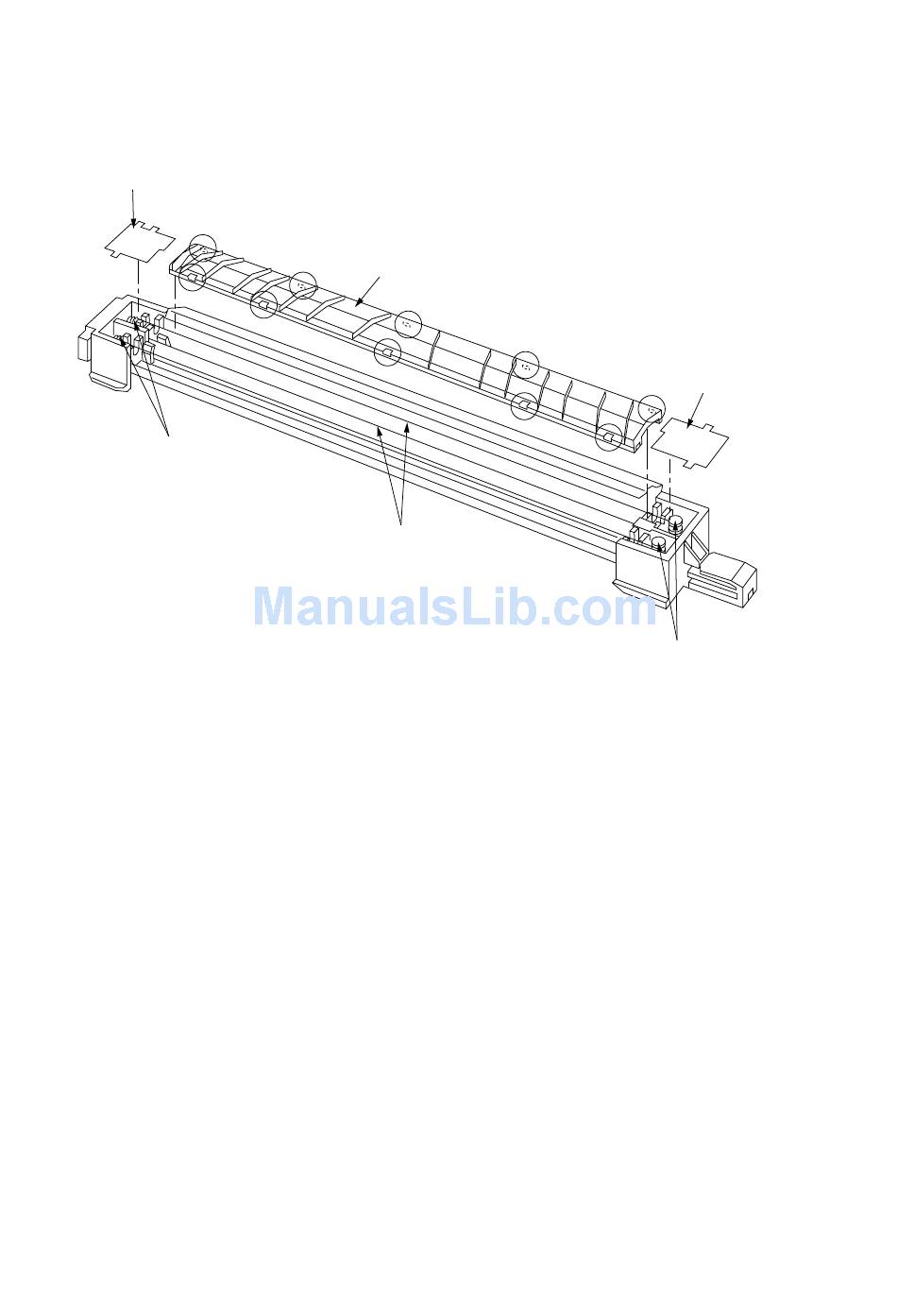

Figure 3-3-73
Transfer charger front lid
Charger wire retainer pins
