1AH
Print key
DUPPTSOL
DUPPPSOL
RFCL
DUPRCL
DUPPCCL
DM
RSW
DUPRSW
DUPPCSW
DUPESW
FCL-U
1-3-54
100 ms
100 ms 275 ms
195 ms
J K LM N O P Q
Automatic exposure mode, original size: A4R/8
copy paper: A4R/8
feed from the 2nd cassette

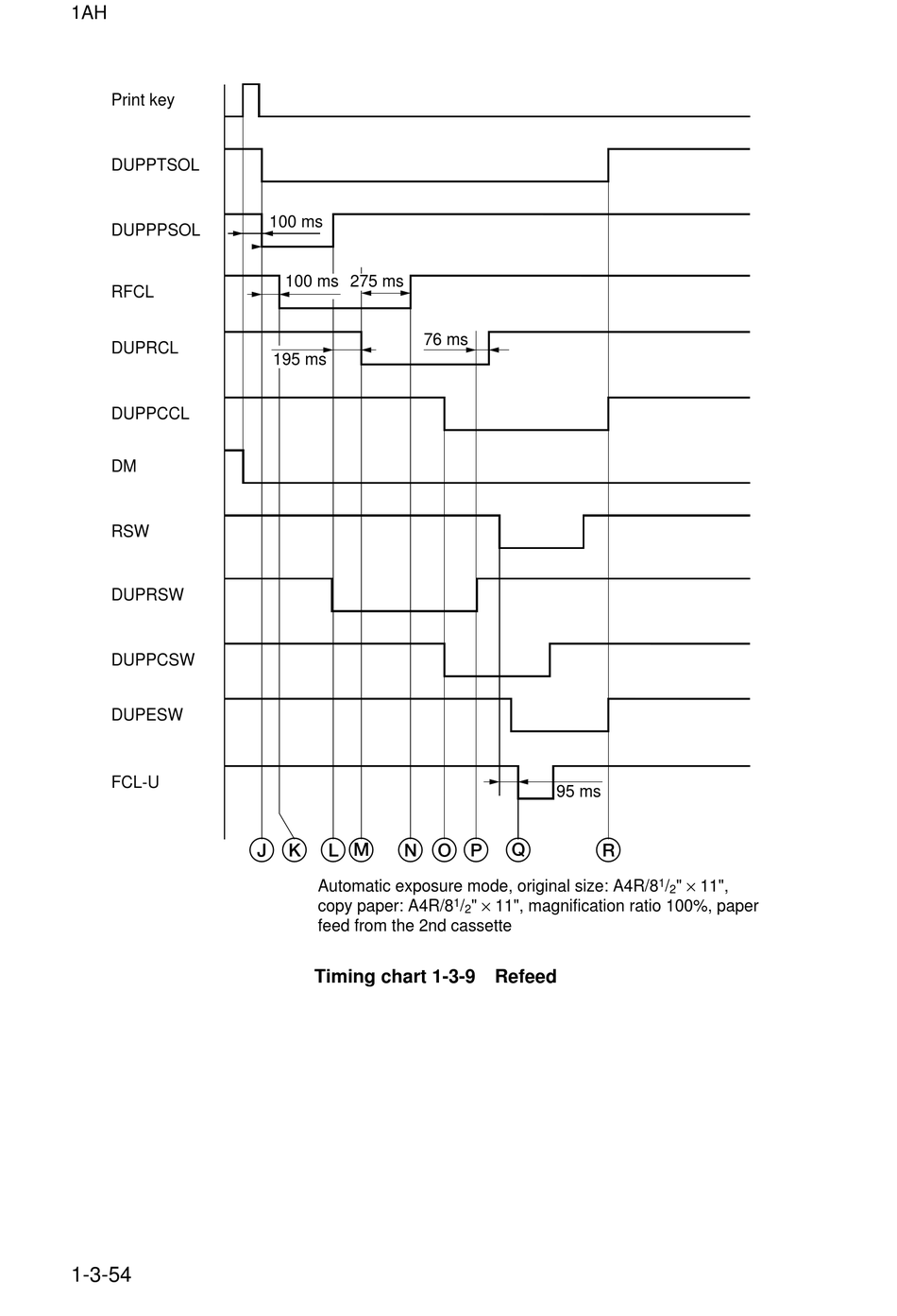

Timing chart 1-3-9 Refeed
76 ms
95 ms
" × 11", magnification ratio 100%, paper
1
/
2
R
" × 11",
1
/
2
