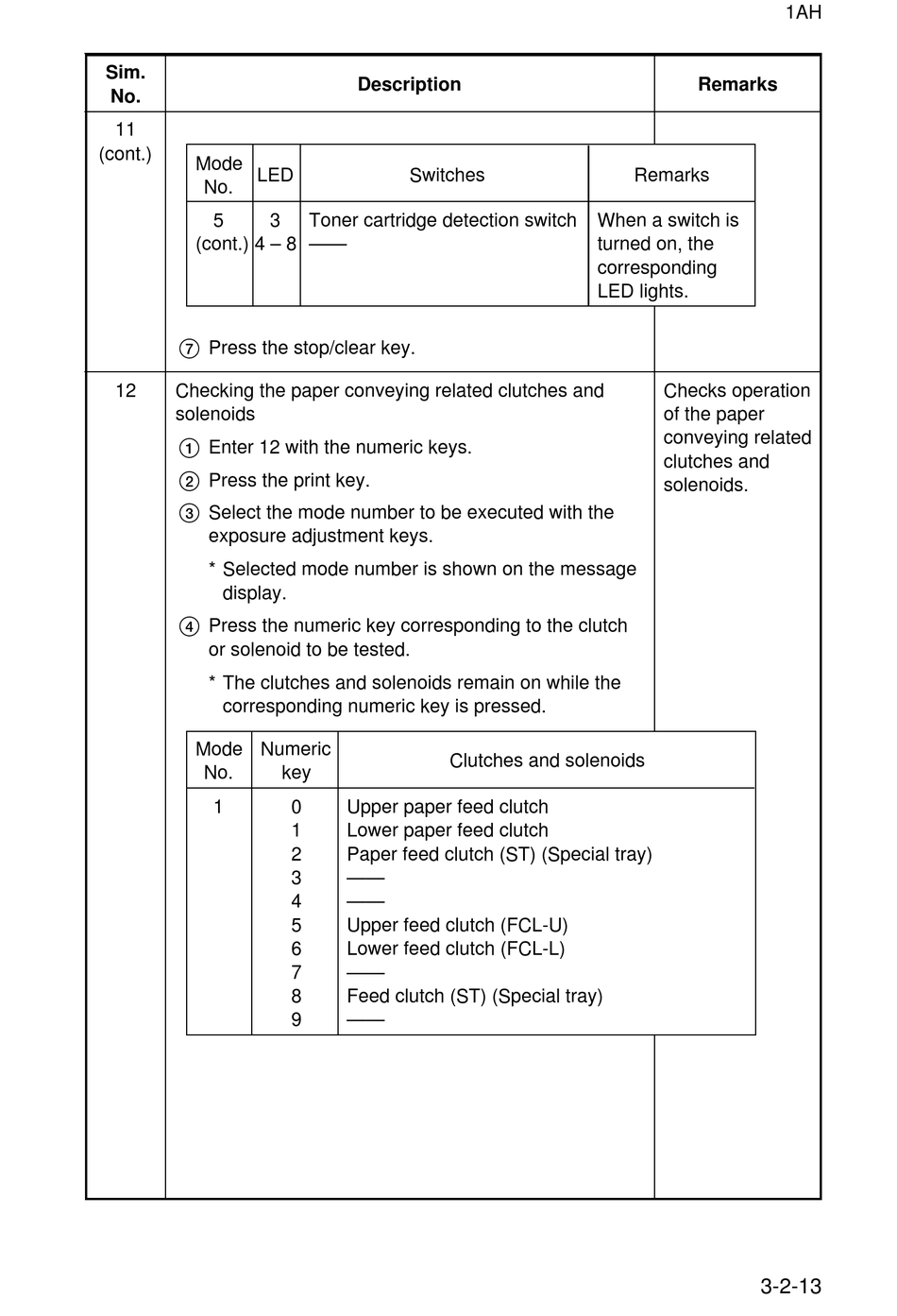

Kyocera Mita DC-2560 Service Manual page 164

Sim.
No.
11
(cont.)
Mode
LED
No.
5
(cont.) 4 – 8 ——
7 Press the stop/clear key.
12 Checking the paper conveying related clutches and
solenoids
1 Enter 12 with the numeric keys.
2 Press the print key.
3 Select the mode number to be executed with the
exposure adjustment keys.
* Selected mode number is shown on the message
display.
4 Press the numeric key corresponding to the clutch
or solenoid to be tested.
* The clutches and solenoids remain on while the
corresponding numeric key is pressed.
Mode Numeric
No.
1
Description
Switches
3 Toner cartridge detection switch
key
0 Upper paper feed clutch
1 Lower paper feed clutch
2 Paper feed clutch (ST) (Special tray)
3 ——
4 ——
5 Upper feed clutch (FCL-U)
6 Lower feed clutch (FCL-L)
7 ——
8 Feed clutch (ST) (Special tray)
9 ——
When a switch is
turned on, the
corresponding
LED lights.
Clutches and solenoids
1AH
Remarks
Remarks
Checks operation
of the paper
conveying related
clutches and
solenoids.
3-2-13
