1AH
8. Take the fixing heater out of the fixing unit rear side.
9. Refit all the removed parts.
3-3-92

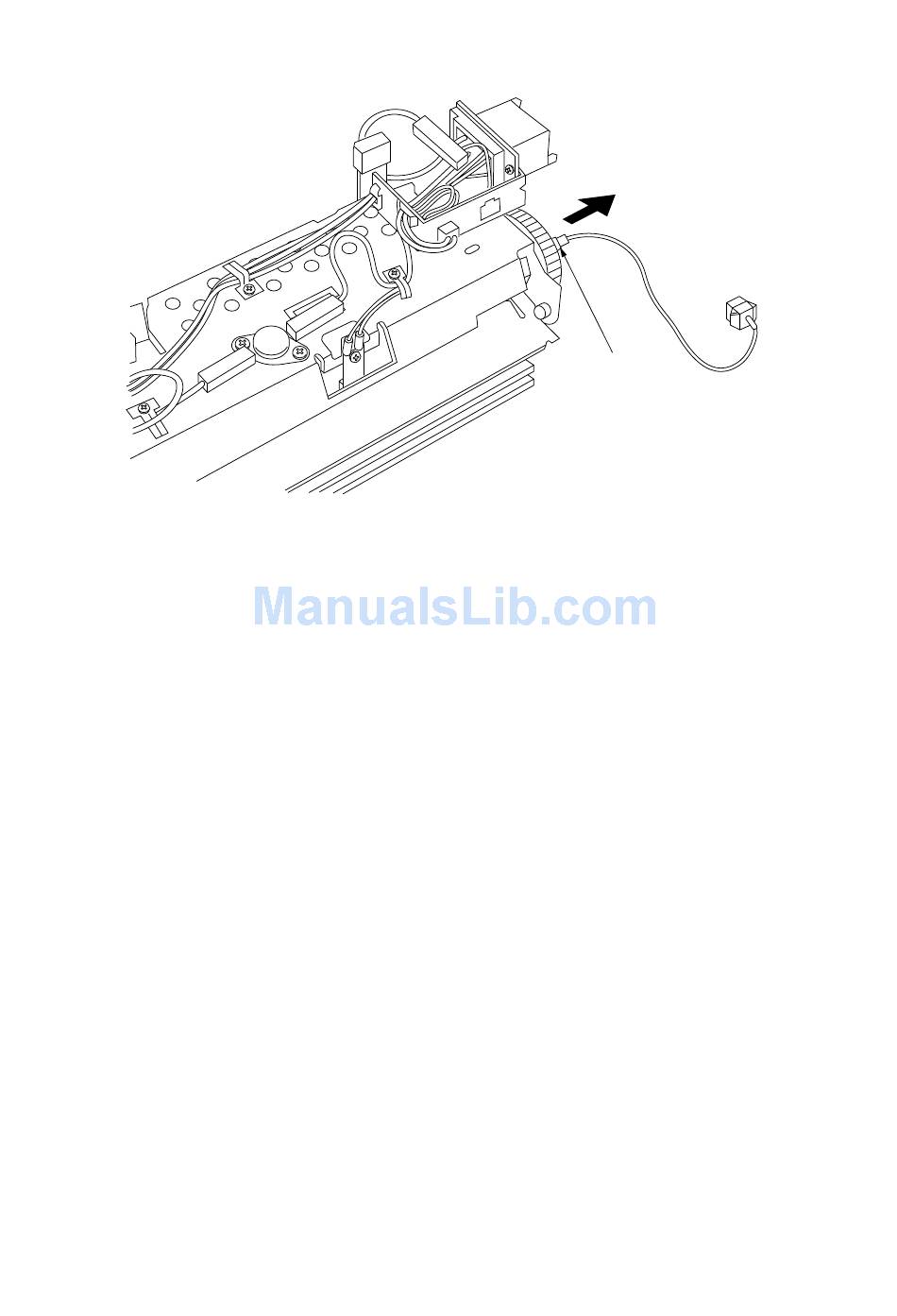

Figure 3-3-86
Fixing heater
