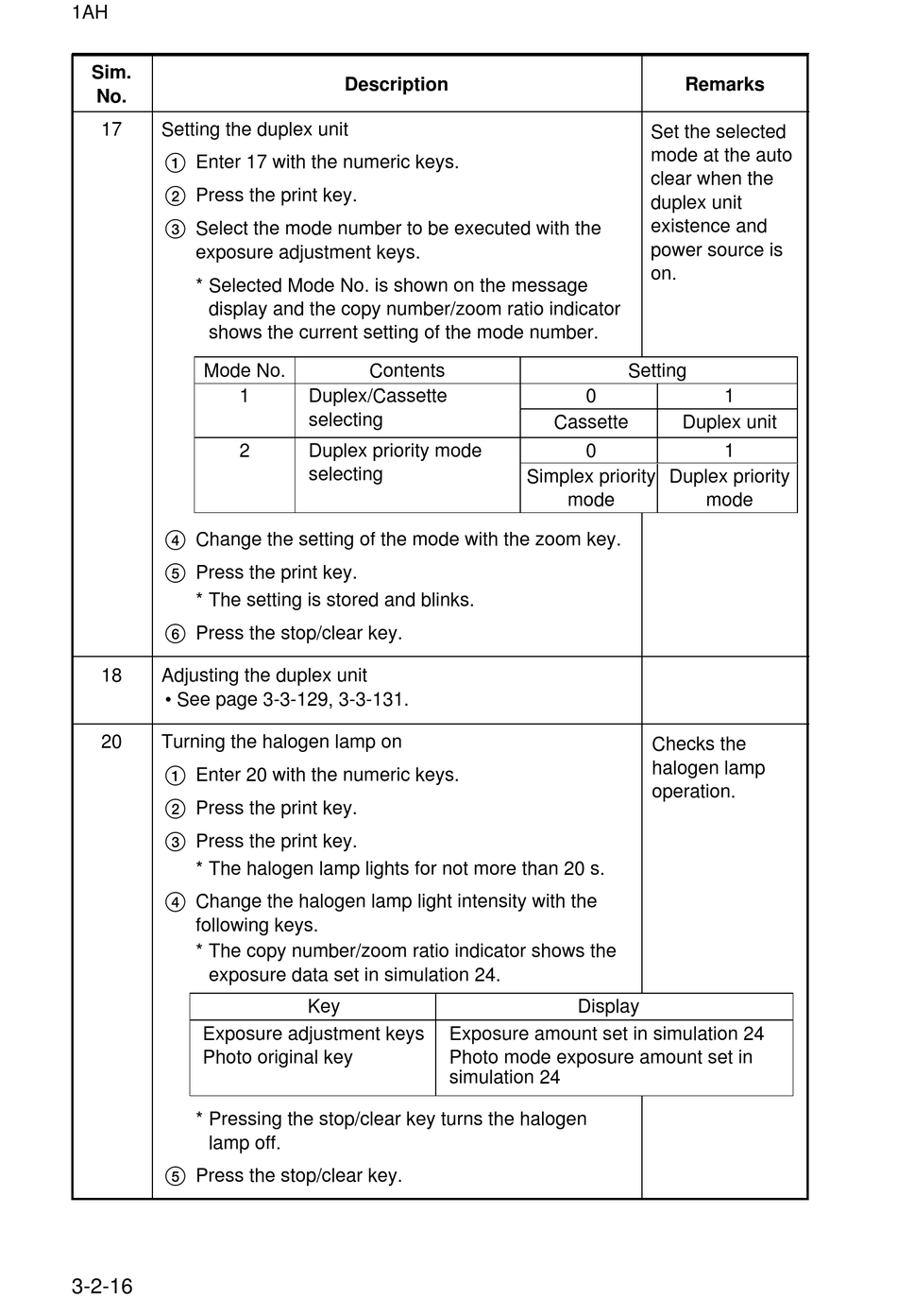

Kyocera Mita DC-2560 Service Manual page 167

1AH
Sim.
No.
17 Setting the duplex unit
1 Enter 17 with the numeric keys.
2 Press the print key.
3 Select the mode number to be executed with the
exposure adjustment keys.
* Selected Mode No. is shown on the message
display and the copy number/zoom ratio indicator
shows the current setting of the mode number.
Mode No.
1
2
4 Change the setting of the mode with the zoom key.
5 Press the print key.
* The setting is stored and blinks.
6 Press the stop/clear key.
18 Adjusting the duplex unit
• See page 3-3-129, 3-3-131.
20 Turning the halogen lamp on
1 Enter 20 with the numeric keys.
2 Press the print key.
3 Press the print key.
* The halogen lamp lights for not more than 20 s.
4 Change the halogen lamp light intensity with the
following keys.
* The copy number/zoom ratio indicator shows the
exposure data set in simulation 24.
Exposure adjustment keys
Photo original key
* Pressing the stop/clear key turns the halogen
lamp off.
5 Press the stop/clear key.
3-2-16
Description
Contents
Duplex/Cassette
selecting
Duplex priority mode
selecting
Key
Exposure amount set in simulation 24
Photo mode exposure amount set in
simulation 24
Remarks
Set the selected
mode at the auto
clear when the
duplex unit
existence and
power source is
on.
Setting
0
Cassette Duplex unit
0
Simplex priority Duplex priority
mode
Checks the
halogen lamp
operation.
Display
1
1
mode
