Install the original holder.
1. Install the original holder to the machine.
Remove the tapes and the pin holding the lens unit.
1. Open the front cover.
2. Remove the tape holding the front paper conveying guide.
3. Remove the tape holding the lens unit pin.
4. Remove the lens unit pin.

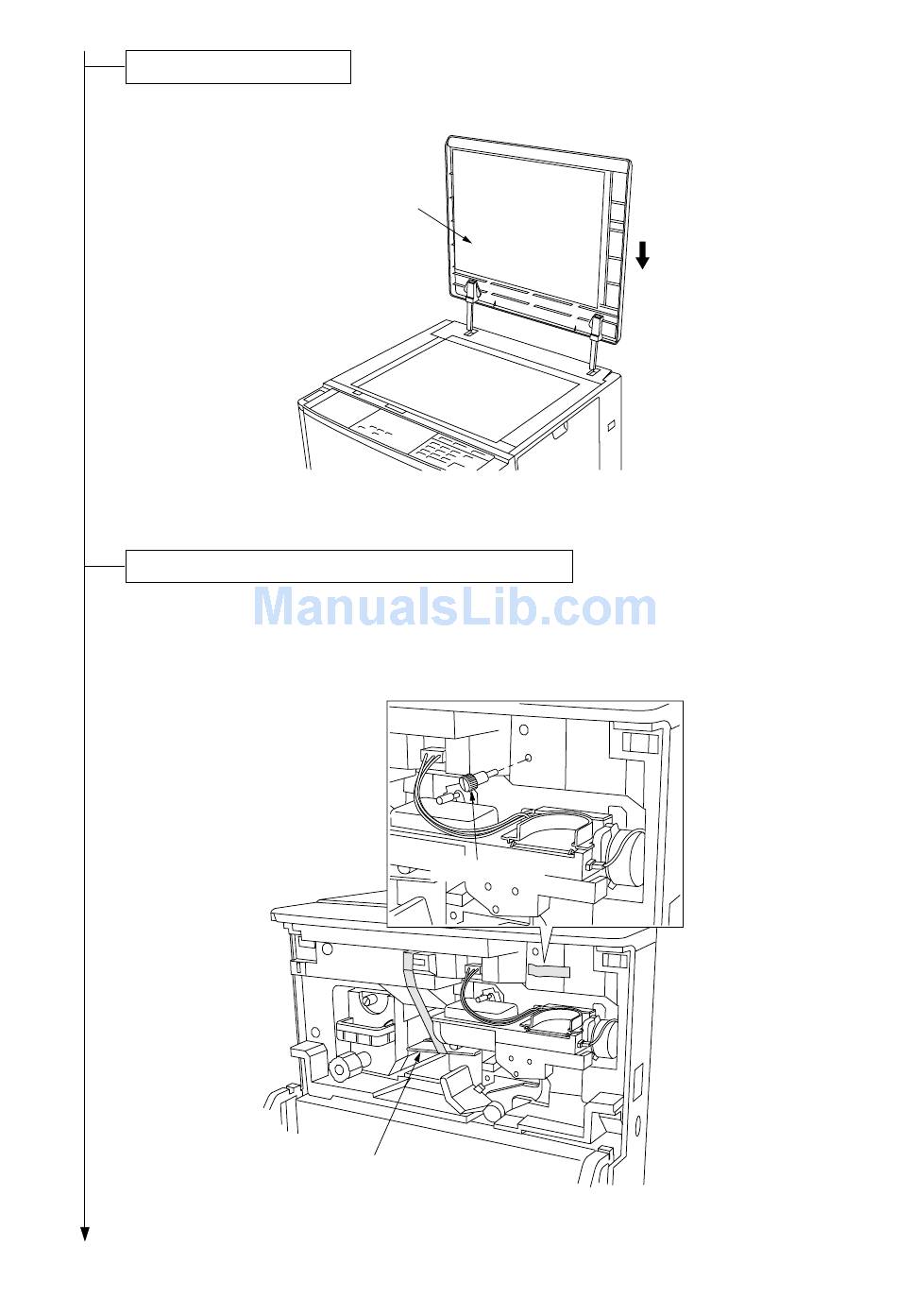

Original holder
Figure 3-1-6
Lens unit pin
Front paper conveying guide
Figure 3-1-7
