[3Com2-Ethernet0/0/0] qos car acl 2 outbound cir 1000000 cbs 1000000 ebs 0 green
pass red discard

2.6 MFR Interface LR Configuration Example

I. Network requirements
Router A and Router are connected through MFR interfaces formed by serial
interfaces.
Configure LR on the MFR interface on Router A, setting CIR to 10000 bps, CBS to
15000 bit, and EBS to 0 bits.
II. Network diagram
PCA

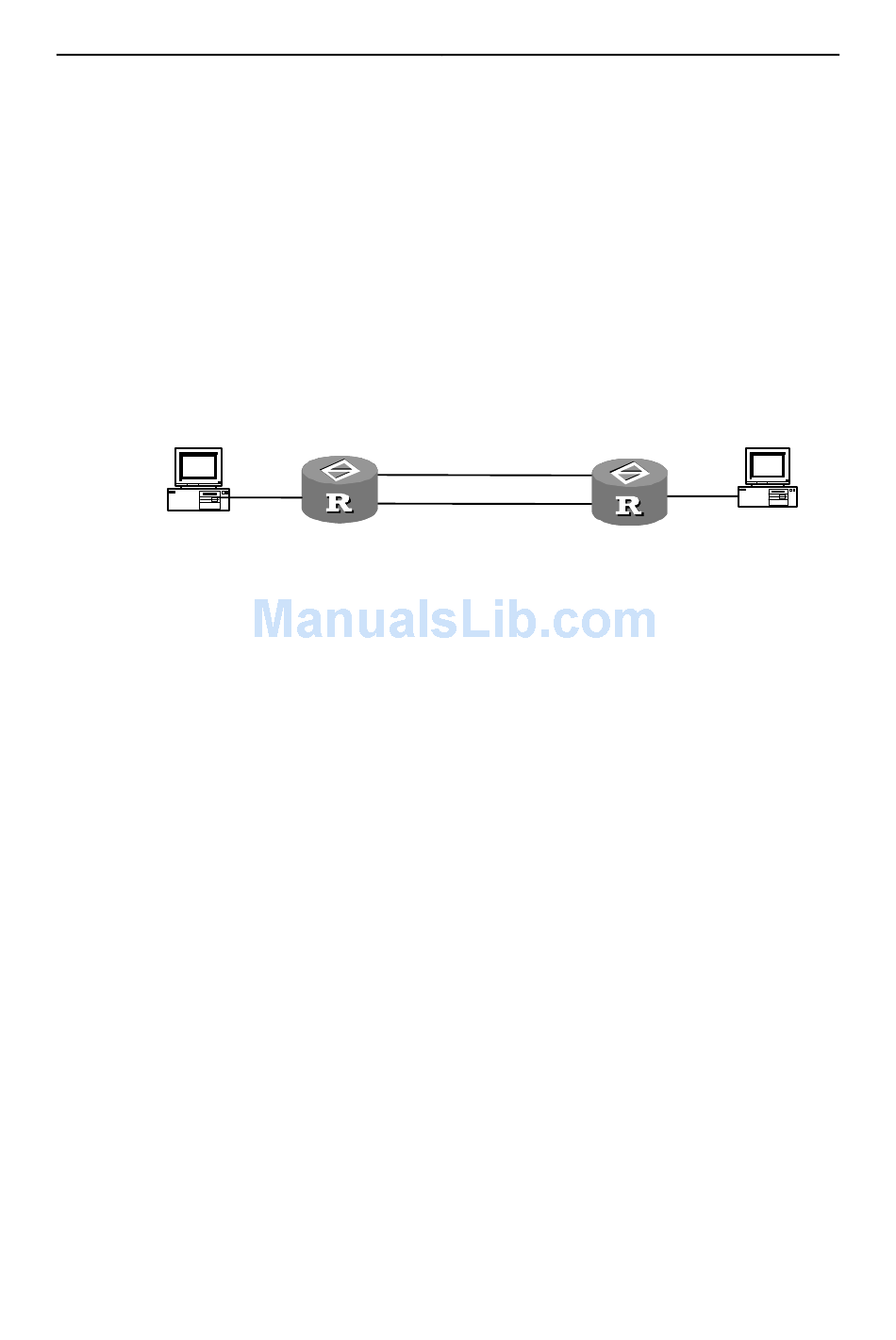

Figure 2-6 Network diagram for LR configuration on MFR interfaces
III. Configuration procedure
1) Configure Router A
# Create and configure interface MFR 4.
[3Com] interface mfr 4
[3Com-MFR4] ip address 10.140.10.1 255.255.255.0
[3Com-MFR4] fr interface-type dte
[3Com-MFR4] fr dlci 100
[3Com-fr-dlci-MFR4-100] quit
[3Com-MFR4] fr map ip 10.140.10.2 100
[3Com-MFR4] qos lr cir 10000 cbs 15000 ebs 0
[3Com-MFR4] quit
# Assign interfaces Serial 4/0/0 and Serial 4/0/1 to MFR 4.
[3Com] interface serial 4/0/0
[3Com-Serial4/0/0] link-protocol fr mfr 4
[3Com-Serial4/0/0] interface serial 4/0/1
[3Com-Serial4/0/1] link-protocol fr mfr 4
2) Configure Router B
# Create and configure interface MFR 4.
[3Com] interface mfr 4
[3Com-MFR4] ip address 10.140.10.2 255.255.255.0
Serial4/0/0
Eth0/0/0
Serial4/0/1
Router A MFR 4
10.140.10.1/24
3Com Corporation
Chapter 2 Traffic Classification, Policing, and Shaping
Serial4/0/0
Serial4/0/1
MFR 4
Router B
10.140.10.2/24
2-11
Eth0/0/0
PCB
