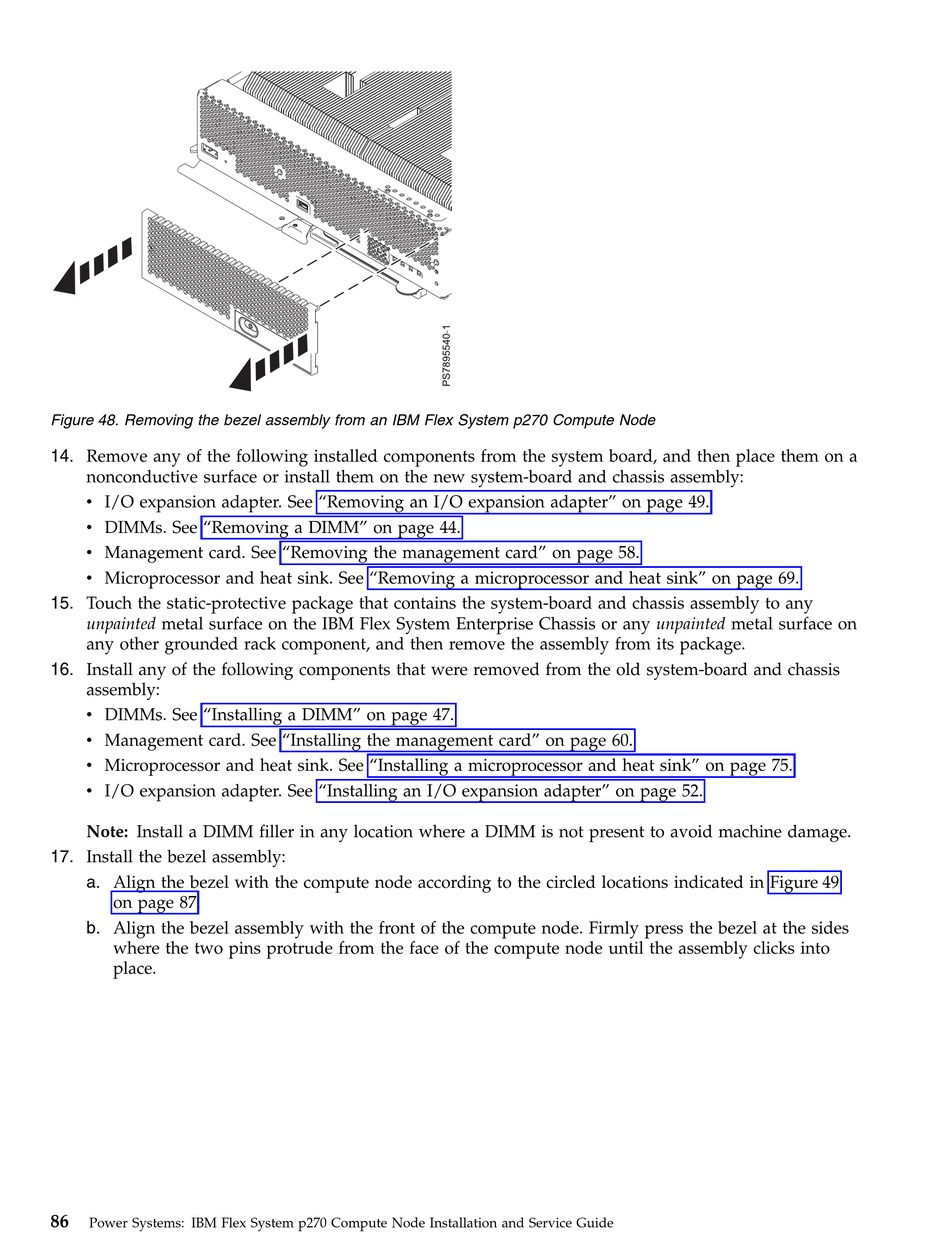

Figure 48. Removing the bezel assembly from an IBM Flex System p270 Compute Node
14. Remove any of the following installed components from the system board, and then place them on a
nonconductive surface or install them on the new system-board and chassis assembly:
v I/O expansion adapter. See "Removing an I/O expansion adapter" on page 49.
v DIMMs. See "Removing a DIMM" on page 44.
v Management card. See "Removing the management card" on page 58.
v Microprocessor and heat sink. See "Removing a microprocessor and heat sink" on page 69.
15. Touch the static-protective package that contains the system-board and chassis assembly to any
unpainted metal surface on the IBM Flex System Enterprise Chassis or any unpainted metal surface on
any other grounded rack component, and then remove the assembly from its package.
16. Install any of the following components that were removed from the old system-board and chassis
assembly:
v DIMMs. See "Installing a DIMM" on page 47.
v Management card. See "Installing the management card" on page 60.
v Microprocessor and heat sink. See "Installing a microprocessor and heat sink" on page 75.
v I/O expansion adapter. See "Installing an I/O expansion adapter" on page 52.
Note: Install a DIMM filler in any location where a DIMM is not present to avoid machine damage.
17. Install the bezel assembly:
a. Align the bezel with the compute node according to the circled locations indicated in Figure 49
on page 87.
b. Align the bezel assembly with the front of the compute node. Firmly press the bezel at the sides
where the two pins protrude from the face of the compute node until the assembly clicks into
place.
