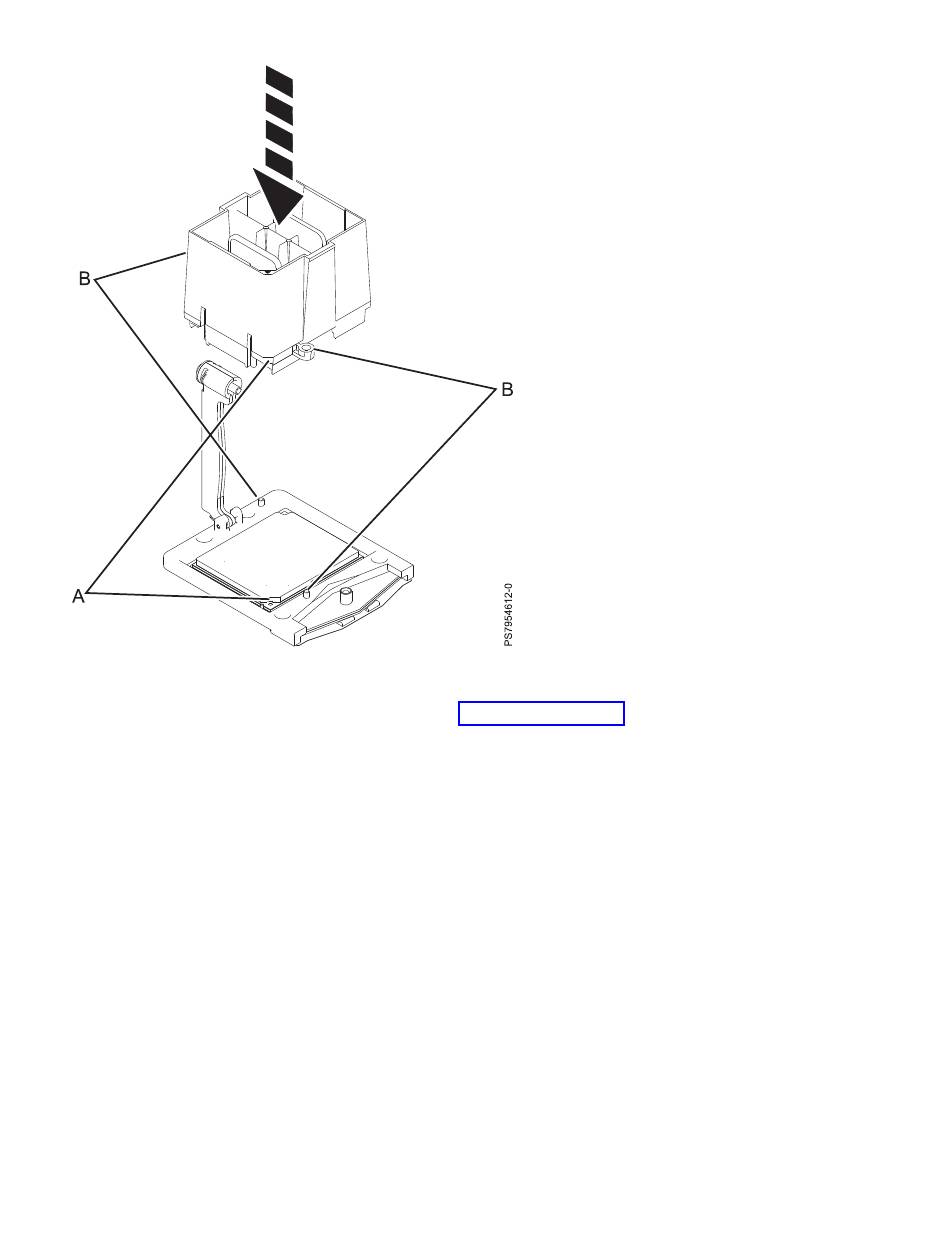

Figure 35. Preparing the microprocessor for removal
c. With the removal tool (A) sitting on top of the microprocessor, push down on the tool to lock the
microprocessor into the tool, as shown in Figure 36 on page 74.
Note: The tool drops slightly when you push down so that the jaws can grab the bottom of the
microprocessor.
