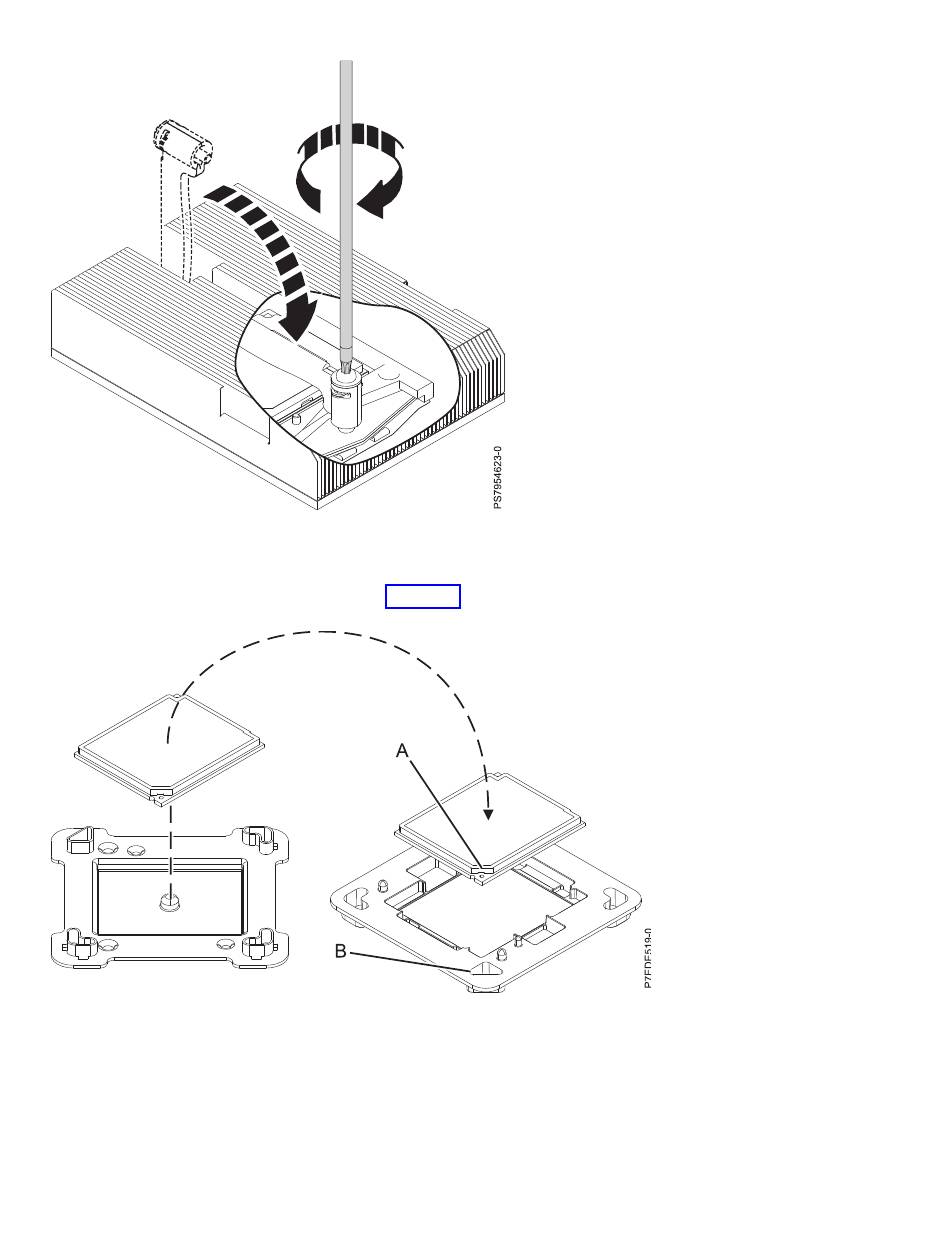

Figure 46. Securing the heat sink
13. Lightly grip the microprocessor that you replaced by the edges and lift it off of the packaging cover.
Align the beveled corner of the module (A) to the corner of the packaging with triangle (B) and
place it in the packaging, as shown in Figure 47. Close the packaging cover.
Figure 47. Placing the microprocessor into the packaging
