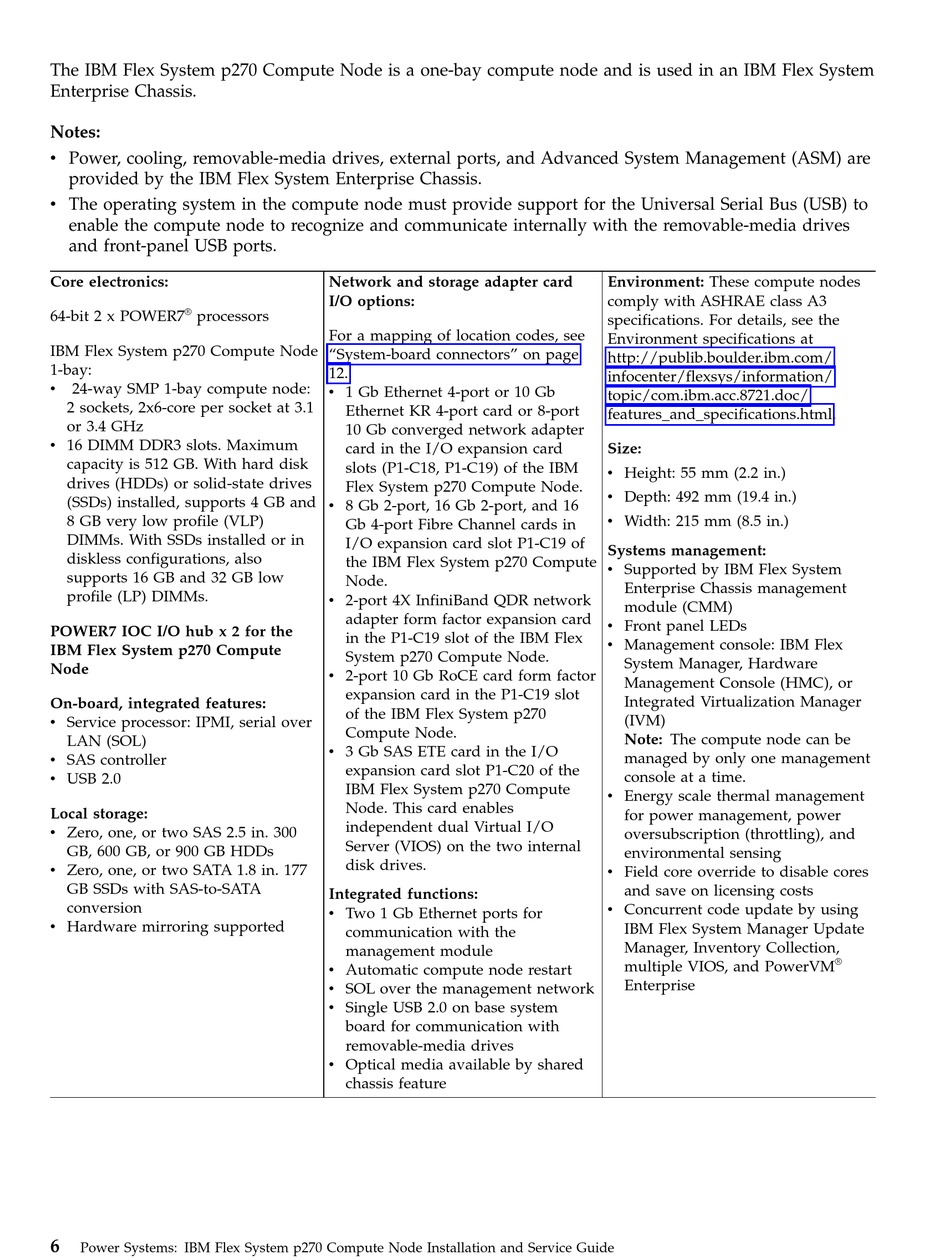

The IBM Flex System p270 Compute Node is a one-bay compute node and is used in an IBM Flex System
Enterprise Chassis.
Notes:
v Power, cooling, removable-media drives, external ports, and Advanced System Management (ASM) are
provided by the IBM Flex System Enterprise Chassis.
v The operating system in the compute node must provide support for the Universal Serial Bus (USB) to
enable the compute node to recognize and communicate internally with the removable-media drives
and front-panel USB ports.
Core electronics:
®
64-bit 2 x POWER7 processors
IBM Flex System p270 Compute Node
1-bay:
v 24-way SMP 1-bay compute node:
2 sockets, 2x6-core per socket at 3.1
or 3.4 GHz
v 16 DIMM DDR3 slots. Maximum
capacity is 512 GB. With hard disk
drives (HDDs) or solid-state drives
(SSDs) installed, supports 4 GB and
8 GB very low profile (VLP)
DIMMs. With SSDs installed or in
diskless configurations, also
supports 16 GB and 32 GB low
profile (LP) DIMMs.
POWER7 IOC I/O hub x 2 for the
IBM Flex System p270 Compute
Node
On-board, integrated features:
v Service processor: IPMI, serial over
LAN (SOL)
v SAS controller
v USB 2.0
Local storage:
v Zero, one, or two SAS 2.5 in. 300
GB, 600 GB, or 900 GB HDDs
v Zero, one, or two SATA 1.8 in. 177
GB SSDs with SAS-to-SATA
conversion
v Hardware mirroring supported
6
Power Systems: IBM Flex System p270 Compute Node Installation and Service Guide
Network and storage adapter card
I/O options:
For a mapping of location codes, see
"System-board connectors" on page
12.
v 1 Gb Ethernet 4-port or 10 Gb
Ethernet KR 4-port card or 8-port
10 Gb converged network adapter
card in the I/O expansion card
slots (P1-C18, P1-C19) of the IBM
Flex System p270 Compute Node.
v 8 Gb 2-port, 16 Gb 2-port, and 16
Gb 4-port Fibre Channel cards in
I/O expansion card slot P1-C19 of
the IBM Flex System p270 Compute
Node.
v 2-port 4X InfiniBand QDR network
adapter form factor expansion card
in the P1-C19 slot of the IBM Flex
System p270 Compute Node.
v 2-port 10 Gb RoCE card form factor
expansion card in the P1-C19 slot
of the IBM Flex System p270
Compute Node.
v 3 Gb SAS ETE card in the I/O
expansion card slot P1-C20 of the
IBM Flex System p270 Compute
Node. This card enables
independent dual Virtual I/O
Server (VIOS) on the two internal
disk drives.
Integrated functions:
v Two 1 Gb Ethernet ports for
communication with the
management module
v Automatic compute node restart
v SOL over the management network
v Single USB 2.0 on base system
board for communication with
removable-media drives
v Optical media available by shared
chassis feature
Environment: These compute nodes
comply with ASHRAE class A3
specifications. For details, see the
Environment specifications at
http://publib.boulder.ibm.com/
infocenter/flexsys/information/
topic/com.ibm.acc.8721.doc/
features_and_specifications.html.
Size:
v Height: 55 mm (2.2 in.)
v Depth: 492 mm (19.4 in.)
v Width: 215 mm (8.5 in.)
Systems management:
v Supported by IBM Flex System
Enterprise Chassis management
module (CMM)
v Front panel LEDs
v Management console: IBM Flex
System Manager, Hardware
Management Console (HMC), or
Integrated Virtualization Manager
(IVM)
Note: The compute node can be
managed by only one management
console at a time.
v Energy scale thermal management
for power management, power
oversubscription (throttling), and
environmental sensing
v Field core override to disable cores
and save on licensing costs
v Concurrent code update by using
IBM Flex System Manager Update
Manager, Inventory Collection,
multiple VIOS, and PowerVM
Enterprise
®
