8. If dust or debris is present, use an air bulb to blow small bursts of air from the center toward the
sides of the microprocessor, as shown in Figure 34.

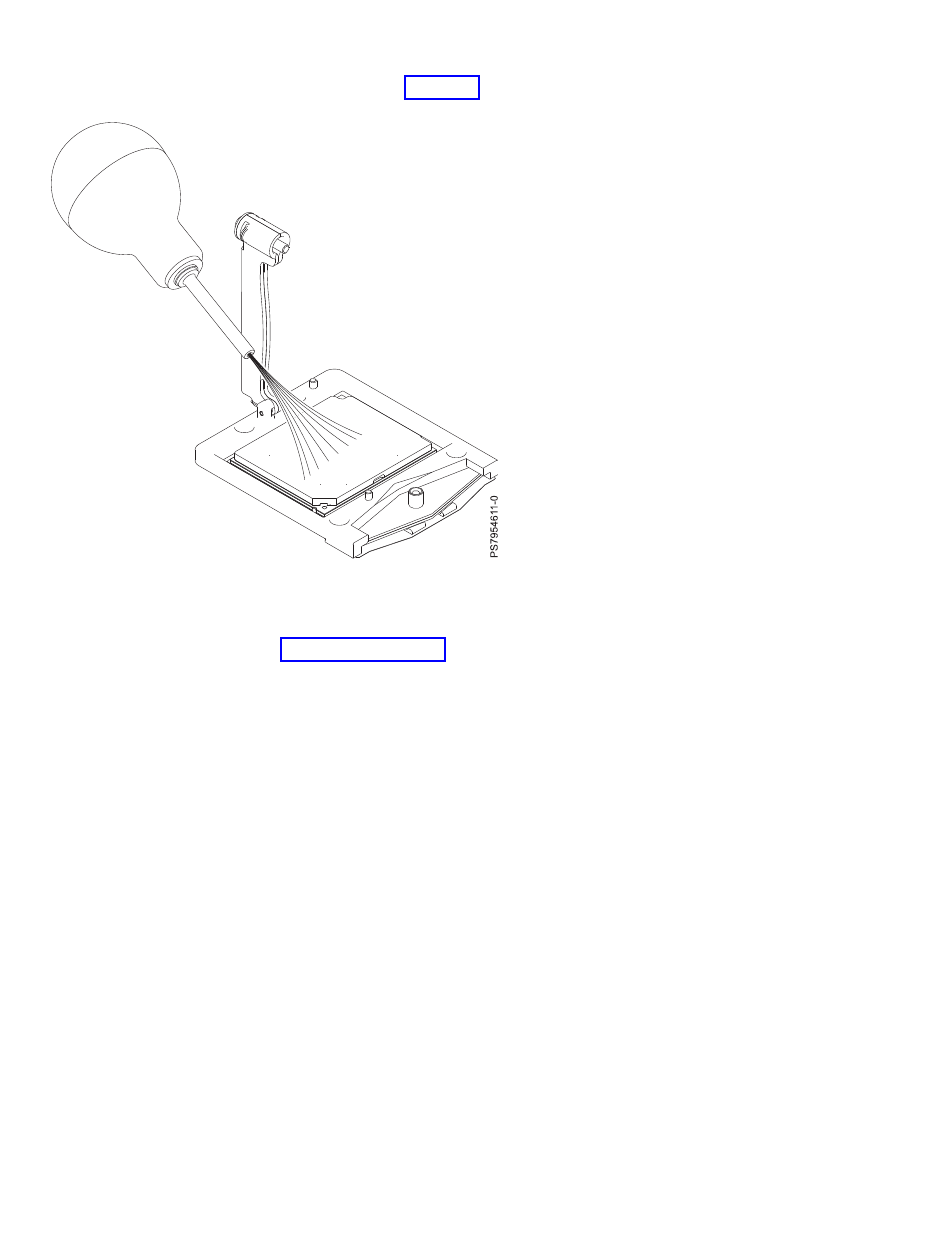

Figure 34. Dusting the processor area
9. Prepare the microprocessor for removal:
a. Using the removal tool, align the beveled corner (A) of the tool over the beveled corner of the
module, as shown in Figure 35 on page 73.
b. Lower the tool over the microprocessor by ensuring that the two guide pins (B) are inserted into
the alignment holes on each side of the tool.
