5. Prepare the microprocessor for installation:
a. Using the removal tool, align the beveled corner (A) of the tool over the beveled corner of the
module, as shown in Figure 1.
b. Lower the tool over the microprocessor by ensuring that the two guide pins (B) are inserted into
the alignment holes on each side of the tool, as shown in Figure 39. Then push down on the tool
to lock the microprocessor into the tool, as shown in Figure 40 on page 77.

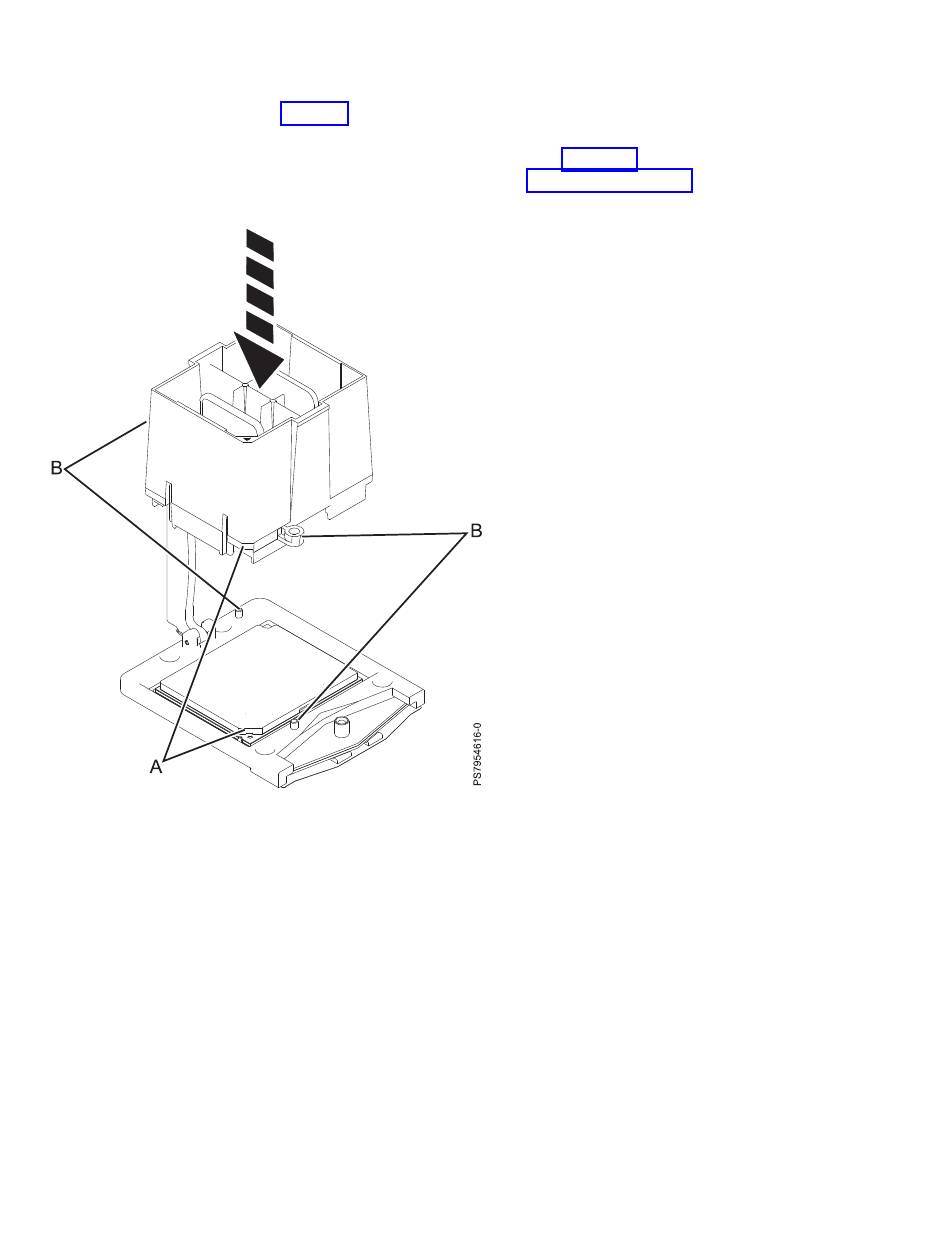

Figure 39. Preparing for microprocessor installation
