3

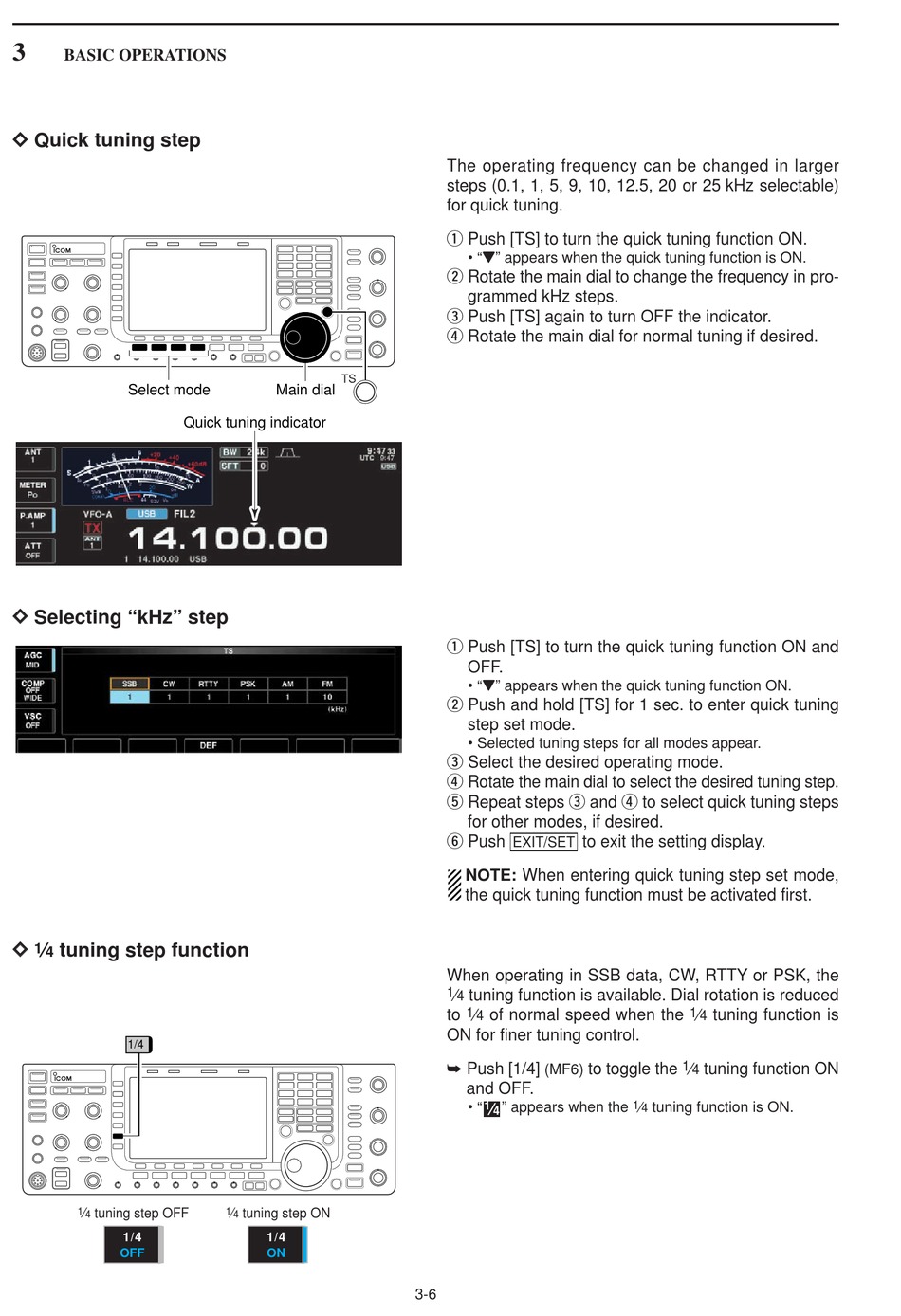

BASIC OPERATIONS
D D Quick tuning step
Select mode
D D Selecting "kHz" step
D D
1 ⁄

tuning step function

4
1/4
1
⁄ tuning step OFF
4
1 / 4
OFF
TS
Main dial
Quick tuning indicator
1
⁄ tuning step ON
4
1 / 4
ON
The operating frequency can be changed in larger
steps (0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz selectable)
for quick tuning.
q Push [TS] to turn the quick tuning function ON.
• "Z" appears when the quick tuning function is ON.
w Rotate the main dial to change the frequency in pro-
grammed kHz steps.
e Push [TS] again to turn OFF the indicator.
r Rotate the main dial for normal tuning if desired.
q Push [TS] to turn the quick tuning function ON and
OFF.
• "Z" appears when the quick tuning function ON.
w Push and hold [TS] for 1 sec. to enter quick tuning
step set mode.
• Selected tuning steps for all modes appear.
e Select the desired operating mode.
r Rotate the main dial to select the desired tuning step.
t Repeat steps e and r to select quick tuning steps
for other modes, if desired.
y Push
EXIT/SET
NOTE: When entering quick tuning step set mode,
the quick tuning function must be activated first.
When operating in SSB data, CW, RTTY or PSK, the
1
⁄ tuning function is available. Dial rotation is reduced
4
1
to ⁄ of normal speed when the
4
ON for finer tuning control.
➥ Push [1/4]
(MF6)
and OFF.
• " 1 " appears when the
⁄
4
3-6
to exit the setting display.
1
⁄ tuning function is
4
1
to toggle the ⁄ tuning function ON
4
1
⁄ tuning function is ON.
4
