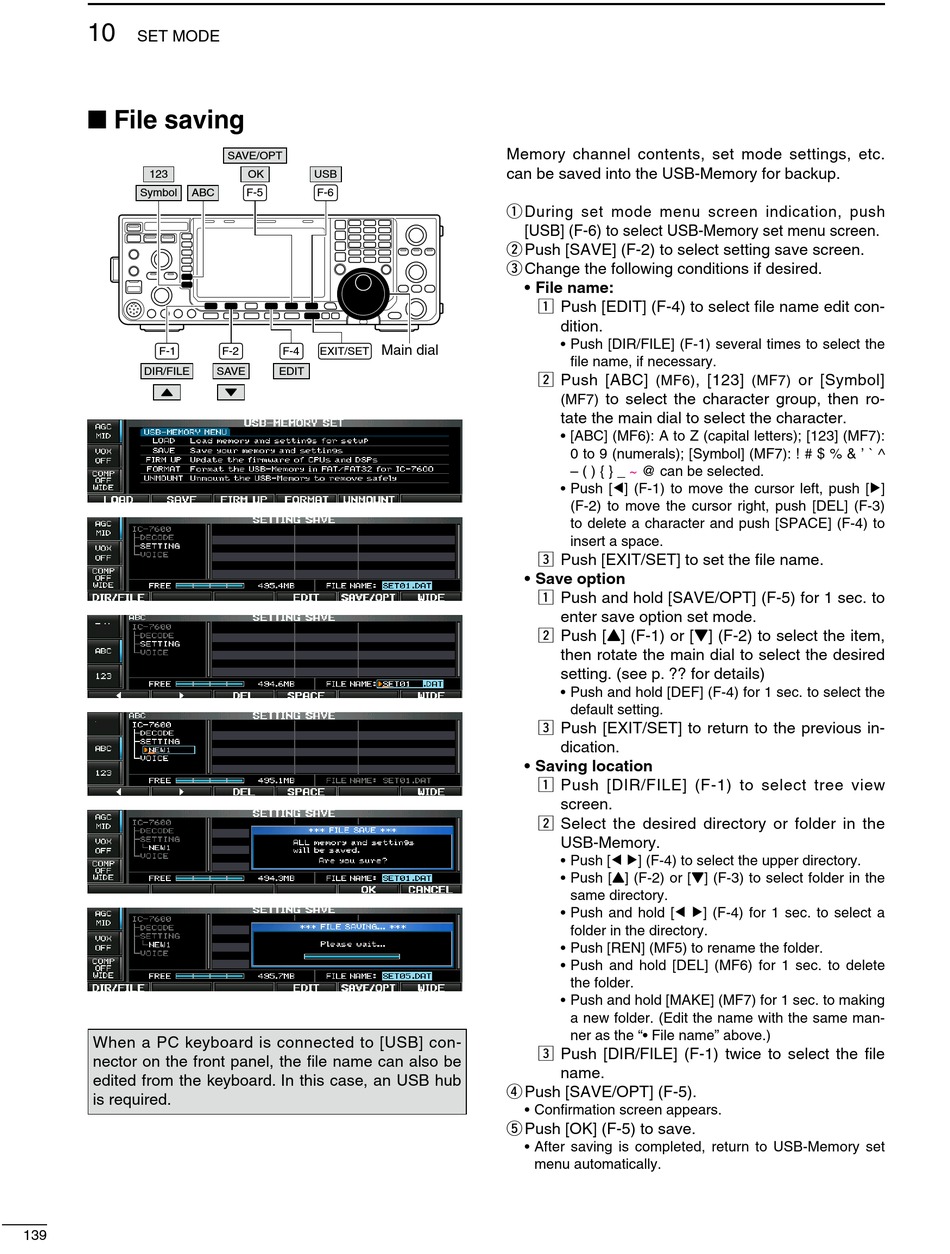

File Saving - Icom IC-718 Instruction Manual

10
SET MODE

File saving

123
Symbol ABC
F-1
DIR/FILE
When a PC keyboard is connected to [USB] con-
nector on the front panel, the file name can also be
edited from the keyboard. In this case, an USB hub
is required.
139
SAVE/OPT
OK USB
F-5 F-6
Main dial
F-2 F-4 EXIT/SET
SAVE EDIT
Memory channel contents, set mode settings, etc.
can be saved into the USB-Memory for backup.
q During set mode menu screen indication, push
[USB] (F-6) to select USB-Memory set menu screen.
w Push [SAVE] (F-2) to select setting save screen.
e Change the following conditions if desired.
• File name:
z Push [EDIT] (F-4) to select file name edit con-
dition.
• Push [DIR/FILE] (F-1) several times to select the
file name, if necessary.
x Push [ABC]
(MF6)
to select the character group, then ro-
(MF7)
tate the main dial to select the character.
• [ABC] (MF6): A to Z (capital letters); [123] (MF7):
0 to 9 (numerals); [Symbol] (MF7): ! # $ % & ' ` ^
– ( ) { } _ ~ @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈]
(F-2) to move the cursor right, push [DEL] (F-3)
to delete a character and push [SPACE] (F-4) to
insert a space.
c Push [EXIT/SET] to set the file name.
• Save option
z Push and hold [SAVE/OPT] (F-5) for 1 sec. to
enter save option set mode.
x Push [Y] (F-1) or [Z] (F-2) to select the item,
then rotate the main dial to select the desired
setting. (see p. ?? for details)
• Push and hold [DEF] (F-4) for 1 sec. to select the
default setting.
c Push [EXIT/SET] to return to the previous in-
dication.
• Saving location
z Push [DIR/FILE] (F-1) to select tree view
screen.
x Select the desired directory or folder in the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper directory.
• Push [Y] (F-2) or [Z] (F-3) to select folder in the
same directory.
• Push and hold [Ω ≈] (F-4) for 1 sec. to select a
folder in the directory.
• Push [REN] (MF5) to rename the folder.
• Push and hold [DEL] (MF6) for 1 sec. to delete
the folder.
• Push and hold [MAKE] (MF7) for 1 sec. to making
a new folder. (Edit the name with the same man-
ner as the "• File name" above.)
c Push [DIR/FILE] (F-1) twice to select the file
name.
r Push [SAVE/OPT] (F-5).
• Confirmation screen appears.
t Push [OK] (F-5) to save.
• After saving is completed, return to USB-Memory set
menu automatically.
, [123] or [Symbol]
(MF7)
