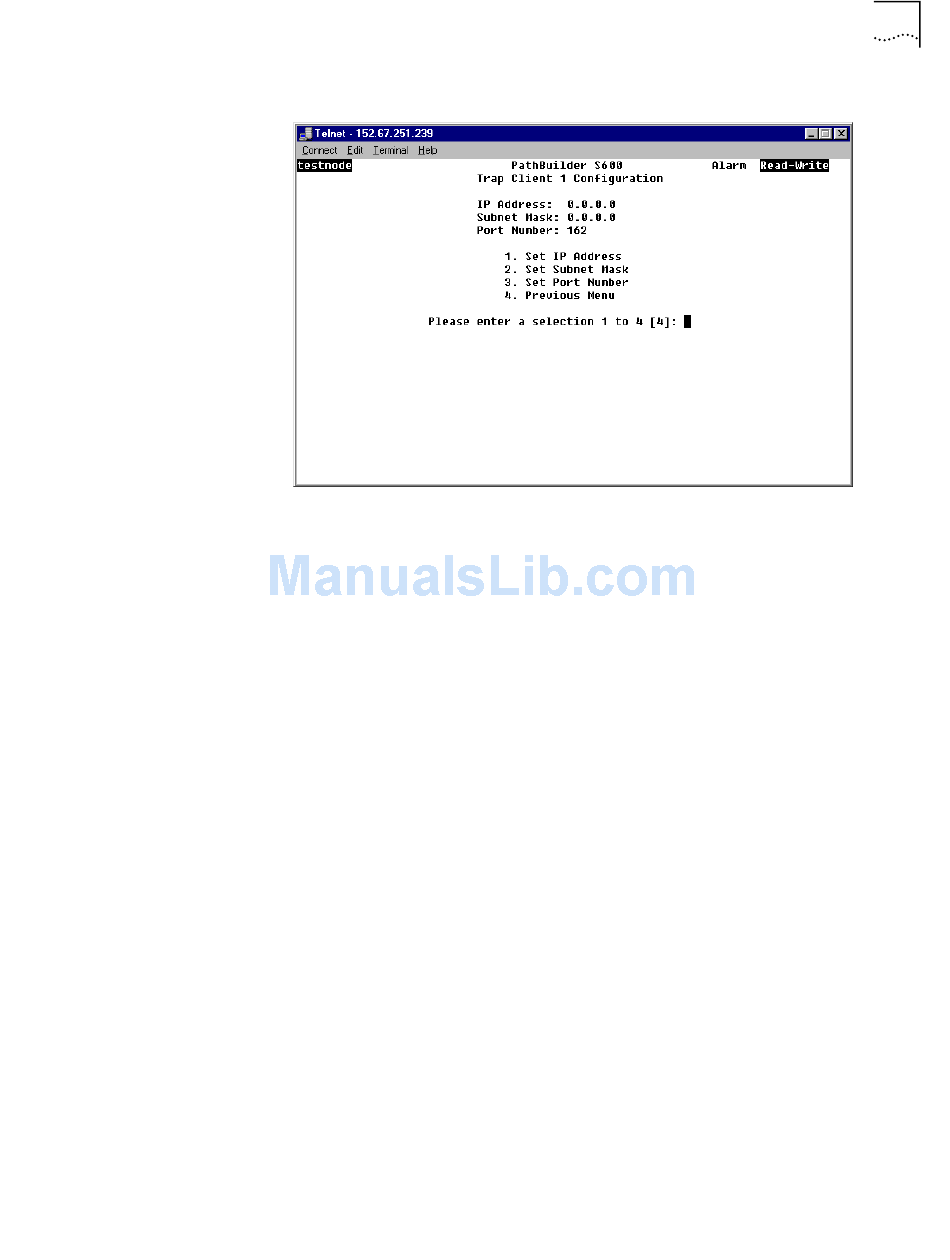

Figure 40 Trap Client 1 Conﬁguration Menu

3 Enter the following information (by selecting the appropriate options and

responding to the prompts that appear at the bottom of the screen) to conﬁgure

the trap client:

IP Address—The IP address of the network management station to which you

want the PathBuilder S600 to send traps.

Subnet Mask—The subnet mask for the network management station to which

you want the PathBuilder S600 to send traps.

Port Number—The system-deﬁned port number. You should not modify this

number.

4 Select [4] Previous Menu to return to the Trap Client Conﬁguration menu.

5 Select [5] Previous Menu to return to the Manage IP Network Conﬁguration menu.

Conﬁguring the Default Gateway

The default gateway routes IP data to non-local networks (Telnet sessions from

different subnetworks). To conﬁgure the default gateway, follow these steps:

1 From the Manage IP Network Conﬁguration menu, select [3] Default Gateway

Conﬁguration to display the Default Gateway Conﬁguration menu, shown in

Figure 41.

2 Enter the following information (by selecting the appropriate options and

responding to the prompts that appear at the bottom of the screen) to conﬁgure

the default gateway:

IP Address—The IP address of the router which you want to conﬁgure as the

default gateway.

Subnet Mask—The subnet mask for the router which you want to conﬁgure as

the default gateway.
