10. Install the processor air duct. For instructions, see
Duct".
11. Install the server system cover. For instructions, see
12. Plug all peripheral devices and the AC power cable(s) into the server.
Installing and Removing the I/O Expansion
Module(s)

Installing the I/O Expansion Module(s)

1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see
Cover".
4. Remove the PCI riser assembly. For instructions, see
Assembly".
5. Squeeze the sides of the I/O expansion module cover(s) to disengage it from the
server system back panel and remove it. See letter "A" in the figure below.
6. Attach the standoffs to the server board (see letter "B" in the figure below) and
attach the I/O expansion module(s) to the server board (see letter "C" in the figure
below).

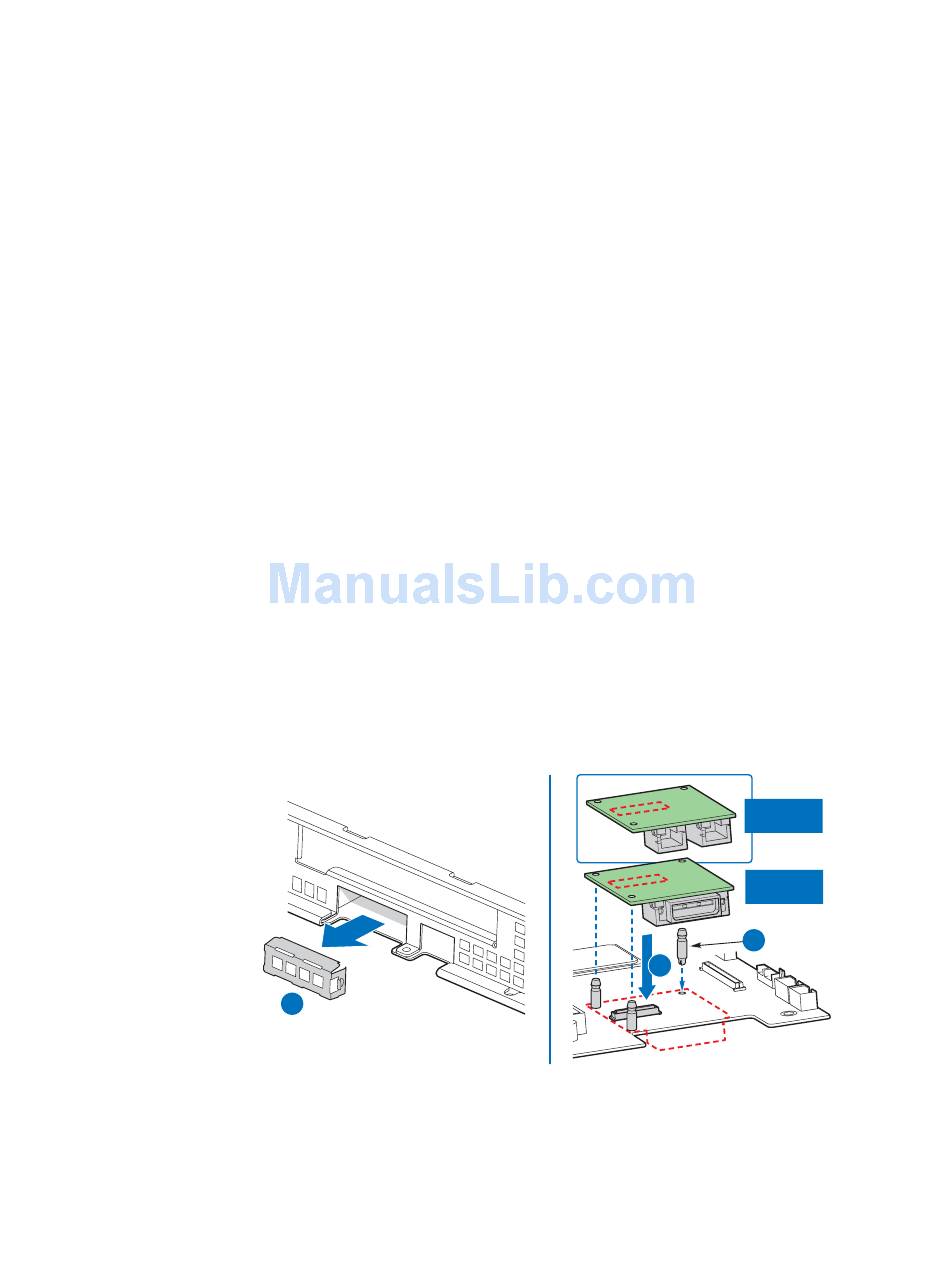

Figure 41. Installing the I/O Expansion Module to the Server Board

® ®
SGI Altix XE210 User's Guide
A
"Installing the Processor Air
"Installing the System
"Removing the System
"Removing the PCI Riser
I/O Module
(Dual Gigabit)
I/O Module
(External SAS)
B
C
AF000746
Cover".
"Safety
49
