Alarm Port

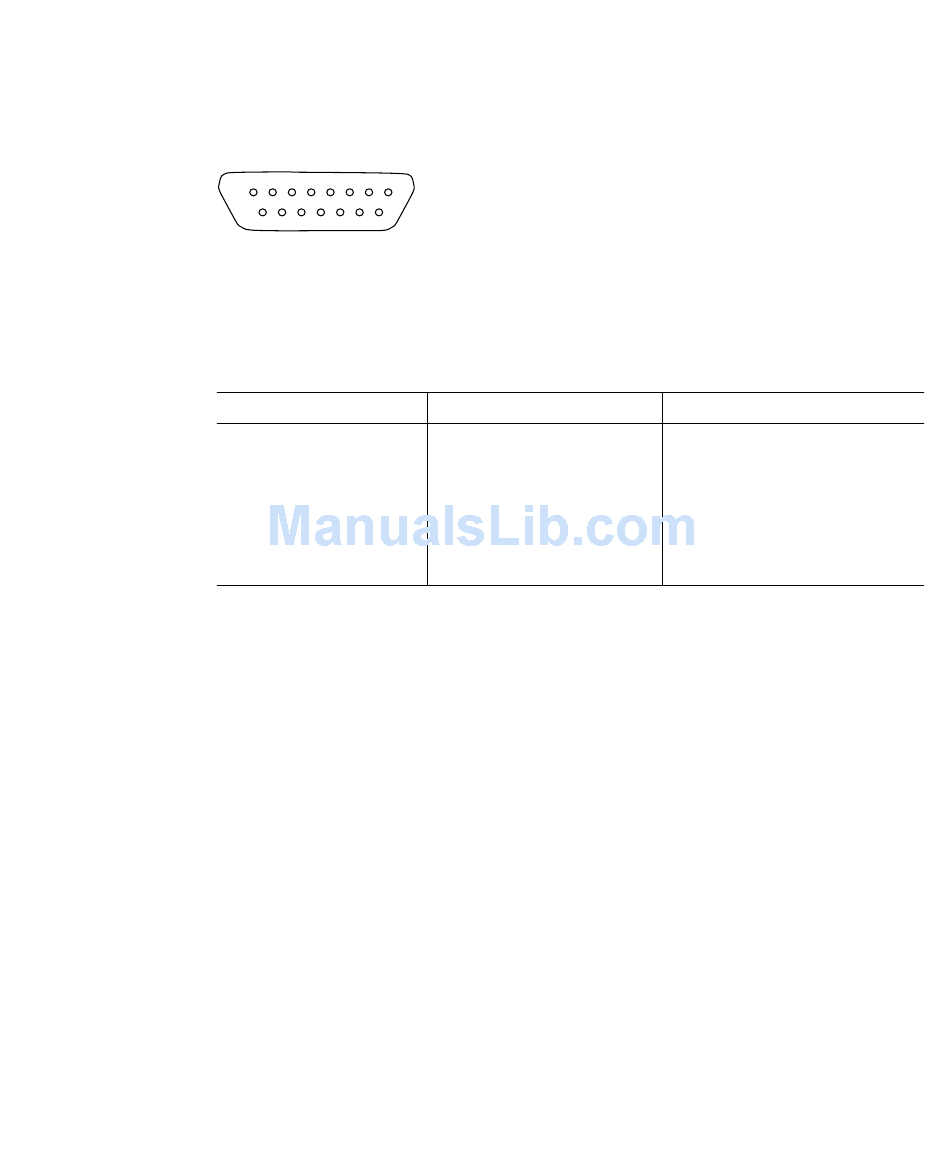

The alarm port on the alarm rear transition card uses a standard male DB-15
connector.
1
9
FIGURE A-21
TABLE A-19
Pin No.
1
2
3
4
5
8
15
Alarm Port
Alarm Port Pinouts
Signal Pin No.
RESET0 + 6
RESET0 - 7
RESET1 + 8
RESET1 - 9
ALARM0_NO 10
Signal Pin No.
ALARM0_NC 11
ALARM0_COM 12
ALARM1_NO 13
ALARM1_NC 14
ALARM1_COM 15
Appendix A Connector Pinouts
Signal
ALARM2_NO
ALARM2_NC
ALARM2_COM
ALARM3_NO
ALARM3_COM
A-25
