Figure 9-2 Loosening The Screws At The Top And Bottom Of A Netra Ct 810 Server - Sun Microsystems Netra CT Service Manual

8. Using a No. 2 Phillips screwdriver, loosen the captive screws that secure the server
to the chassis.
If you are removing a Netra CT 810 server, loosen the four black captives screws
I
at the top of the server and the three black captive screws at the bottom of the
server (
FIGURE 9-2
If you are removing a Netra CT 410 server, loosen the two black captive screws at
I
the top of the server and the two black captive screws at the bottom of the server
( ).
FIGURE 9-3

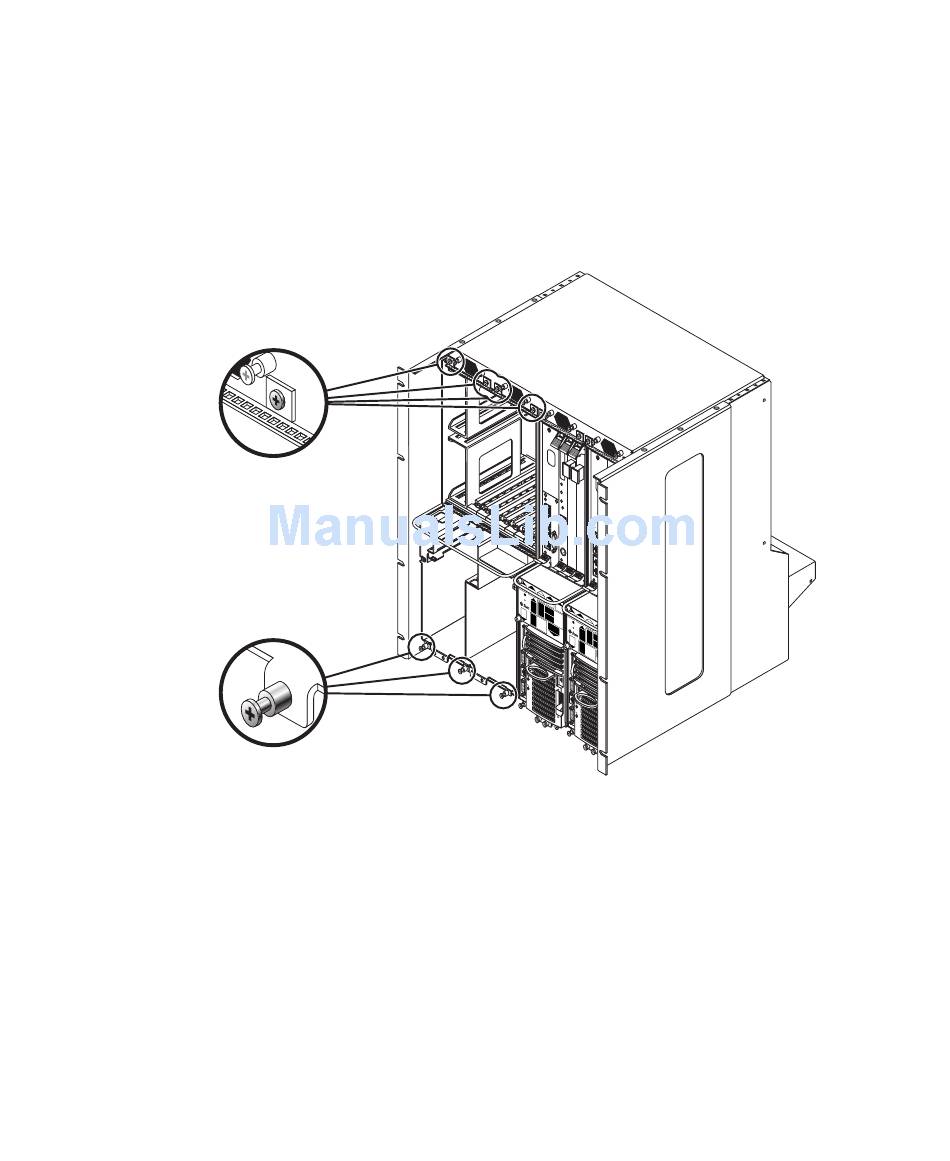

Loosening the Screws at the Top and Bottom of a Netra CT 810 Server
