5. Remove the fan tray from the system.

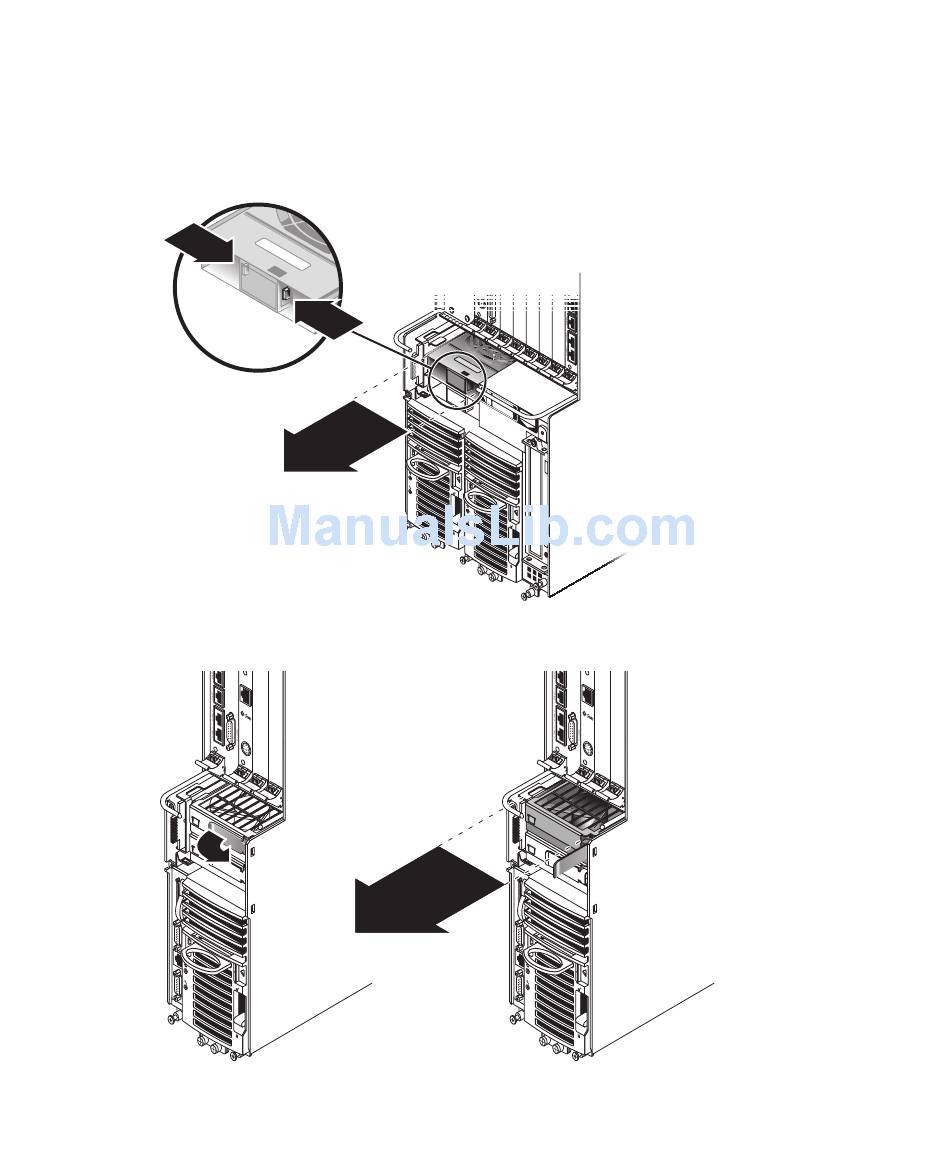

If you are removing a fan tray from a Netra CT 810 server, squeeze on the tabs on
I
the sides of the fan tray handle to disengage it from the server (
If you are removing a fan tray from a Netra CT 410 server, pull on the fan tray
I
handle to disengage it from the server (
1
FIGURE 8-19
FIGURE 8-20
8-20 Netra CT Server Service Manual • January 2004
1
2
Removing a Fan Tray from a Netra CT 810 Server
