Removing the Power Distribution Unit
FIGURE 10-8
7. Remove the power distribution unit from the chassis.
10.2.2

Replacing the Power Distribution Unit

1. Insert the power distribution unit into the slot in the chassis.
2. Tighten the two captive screws to secure the power distribution unit to the chassis
(

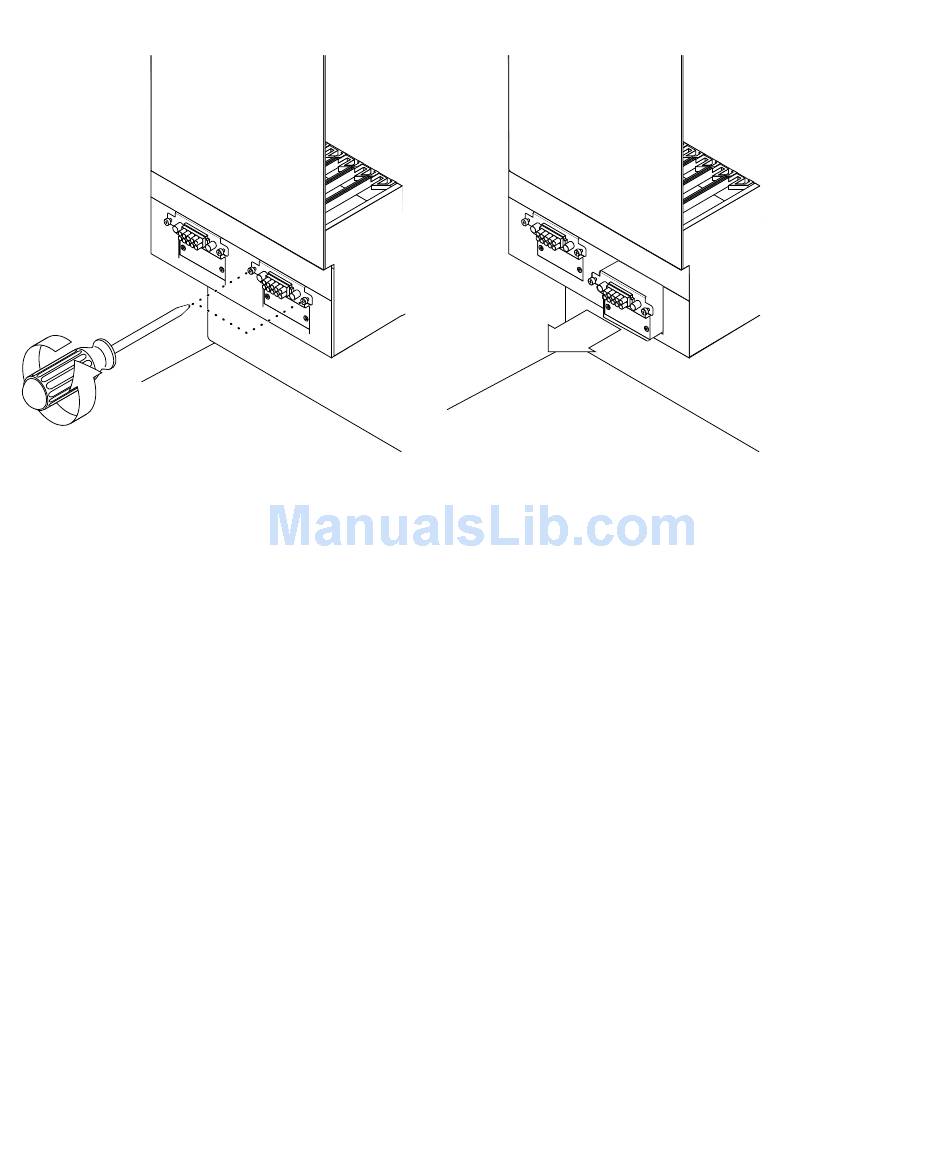

FIGURE 10-8
3. Plug the DC input power cable(s) into the appropriate DC connector(s).
FIGURE 10-5
the rear-access model and
into the DC connectors on the front-access model.
4. Perform all the necessary procedures to reinsert the server that you removed to
access the failed power distribution unit, including all system power-up
procedures.
Refer to
5. Once the system is powered up, go to the system status panel and verify that the
power distribution unit LEDs are in the appropriate states.
10-10 Netra CT Server Service Manual • January 2004
).
shows how to plug the DC input power cables into the DC connectors on
FIGURE 10-6
Section 9.1.2, "Installing a Server" on page 9-9
shows how to plug the DC input power cables
for those instructions.
