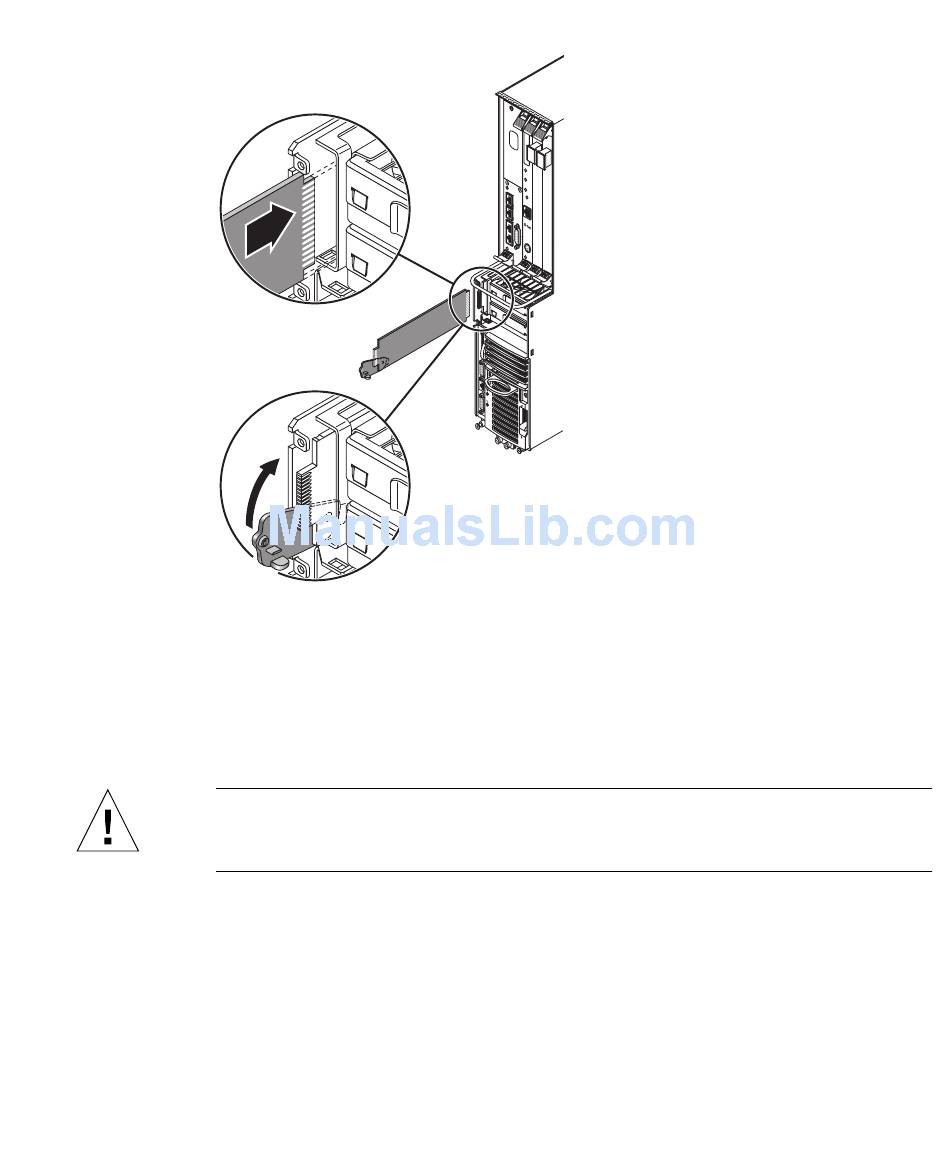

Inserting a System Controller Board
FIGURE 8-9
4. Slide the board into the slot (
5. Flip the ejection lever up as you slide the board into the slot to completely seat it
in the card cage.
The notch on the ejection lever should fit into the cutout.
Caution – Do not force any board into a slot; this can cause damage to the board
and system. The board should insert and seat smoothly. If it binds, remove the board
and inspect the card cage slot for any obvious obstructions.
When the board is completely seated, you should see a brief flash of light behind the
board.
If the light flashes on and off, and remains off, then the board is seated and
I
functioning properly.
If the light flashes on and remains on, then the board is either not seated properly
I
or is faulty. If the light continues to stay on after repeated attempts, then the
board is faulty.
H D
H D
D 0 D 0
A B O
R T
R E
S E T
A LA
R M
/U S
E R
R E
A D
Y
E T H
E R
N E
T
mic
ros yste
ms
C O
M
H O
T
S W
A P
H O
TS W
A P
).
FIGURE 8-9
Chapter 8 Removing and Replacing Hot-Swappable Subassemblies 8-9
