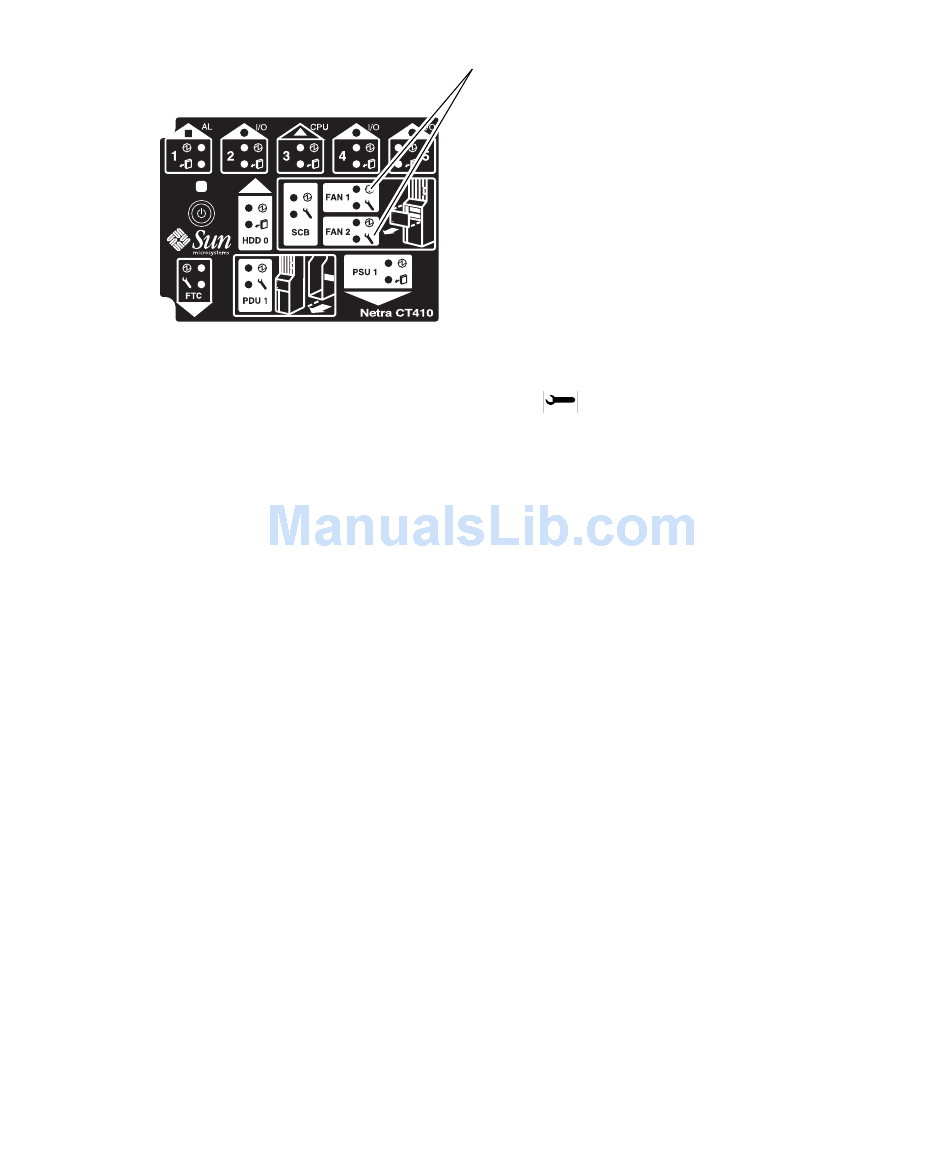

Figure 8-16 Locating The Fan Tray Leds On The System Status Panel (Netra Ct 410 Server) - Sun Microsystems Netra CT Service Manual

FIGURE 8-16
A fan tray has failed if the amber Fault LED (
2. Make a note of which fan tray has failed.
You must remove the system status panel in order to access the fan trays, and you
will not be able to determine which fan tray has failed after you've removed the
system status panel.
3. Remove the system status panel from the system.
Refer to
instructions.
4. Locate the fan tray that has failed.
If the Fan 1 LEDs were in a failed state on the system status panel, the upper fan
I
tray has failed.
If the Fan 2 LEDs were in a failed state on the system status panel, the lower fan
I
tray has failed.
FIGURE 8-17
FIGURE 8-18
8-18 Netra CT Server Service Manual • January 2004
Locating the Fan Tray LEDs on the System Status Panel (Netra CT 410 Server)
Section 8.1.1, "Removing the System Status Panel" on page 8-2
shows the locations of the fan trays in a Netra CT 810 server and
shows the locations of the fan trays in a Netra CT 410 server.
Fan tray LEDs
) on the system status panel is ON.
for those
