1.1 Introduction

Versatile Routing Platform (v2.4x) is the versatile operating system platform of 3Com
Technologies for data communications products. Focusing on IP services, it constructs
a componential architecture, and provides abundant functionality as well as the
application-based tailorability and scalability.
Taking the TCP/IP stack as the core, v2.4x integrates the data communications
technologies in routing, QoS, VPN, security, and VoIP into the operating system, and
offers remarkable data forwarding capability.
v2.4x is a network operating system of which 3Com Technologies owns the exclusive
intellectual property rights (IPR). It provides a uniform set of interfaces (network, user
and management) for various hardware platforms and therefore offers a variety of
flexible application solutions with hundreds of features. Moreover, as a platform of
sustainable development, it can protect network investments.

1.2 Architecture of v2.4x

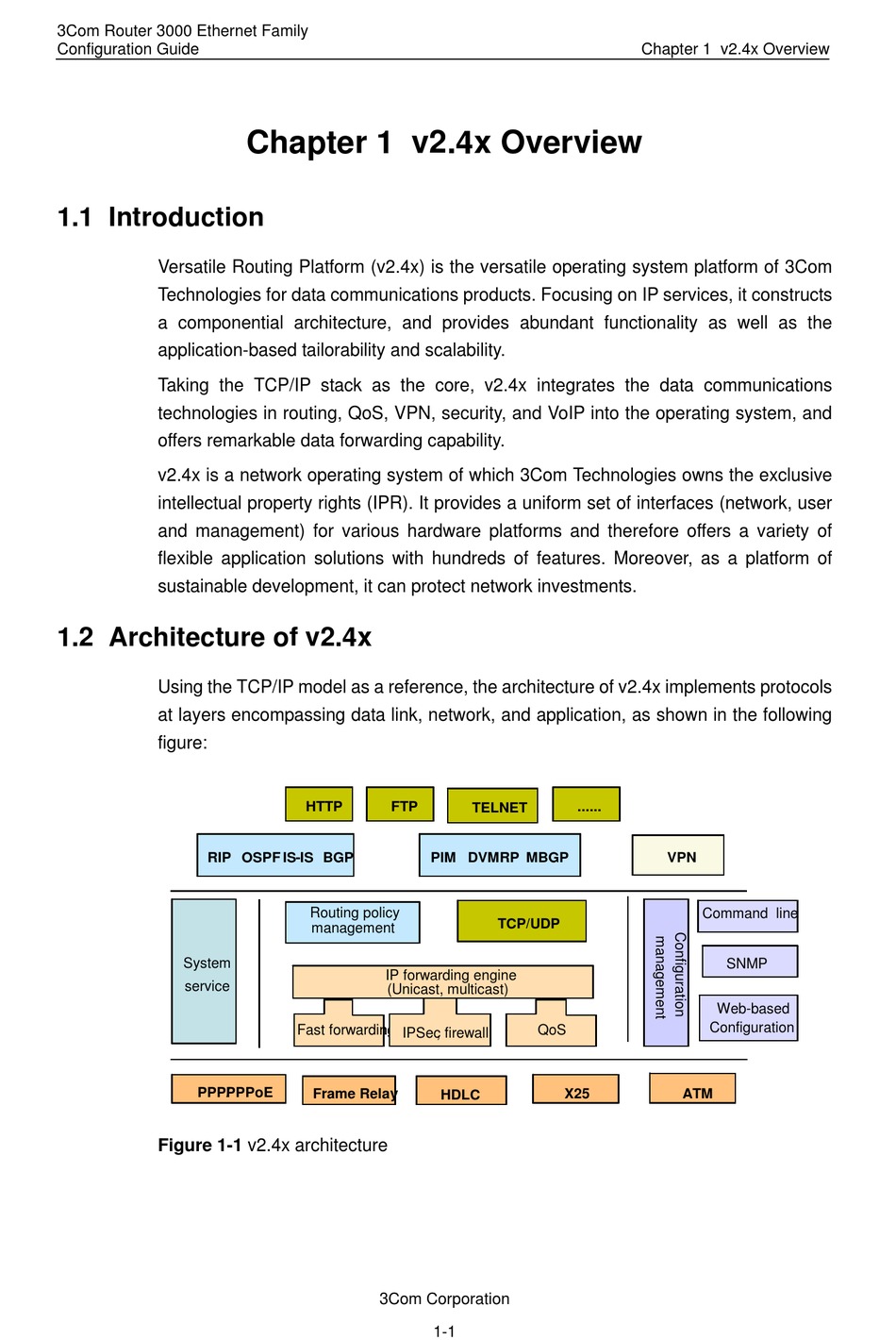

Using the TCP/IP model as a reference, the architecture of v2.4x implements protocols
at layers encompassing data link, network, and application, as shown in the following
figure:
