VLAN

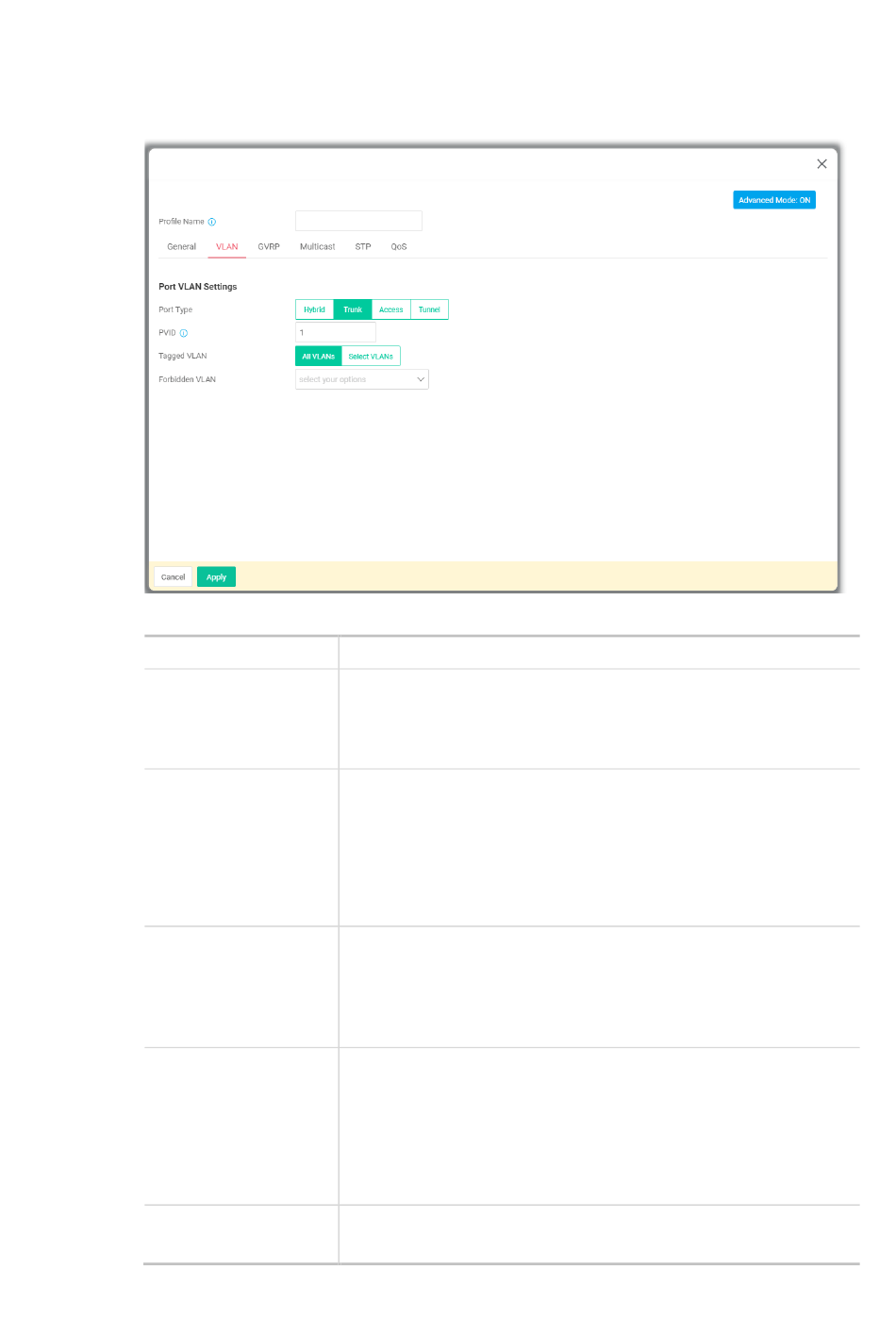

This page allows a user to configure interface (GE) settings related to VLAN.
Available settings are explained as follows:
Item
Profile Name
Port Type
PVID
Accepted Type
Untagged VLAN
Description
Enter a name for the Switch. The purpose of name is used for
identification.
It is useful when there are many VigorSwitch (same modes) devices
connecting to Vigor router.
Select the VLAN mode of the interface.
Hybrid – Support all functions as defined in IEEE 802.1Qspecification.
Trunk - An untagged member of one VLAN at most, and is a tagged
member of zero or more VLANs.
Access – Accepts only untagged frames and join an untagged VLAN.
Tunnel - Accepts only untagged frames and join an untagged VLAN.
A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames
received on a port so that the frames are forwarded to the VLAN
group that the tag defines.
For port under Access/Tunnel Mode, VLAN ID provided as PVID
would automatically be selected as the untagged VLAN.
It is available when Hybrid is selected as the port type.
Specify the acceptable-frame-type of the specified interfaces. It's only
available with Hybrid mode.
All - Accept frames regardless it's tagged with 802.1q or not.
Tag Only - Accept frames only with 802.1q tagged.
Untag Only - Accept frames untagged.
It is available when Hybrid is selected as the port type.
Specify the VLAN profile to be untagged in the VLAN.
