Draytek Vigor2136 Series User Manual page 23


Note:
Switch these two icons by click the mouse cursor on them.
- means "Enable".
- means "Disable".

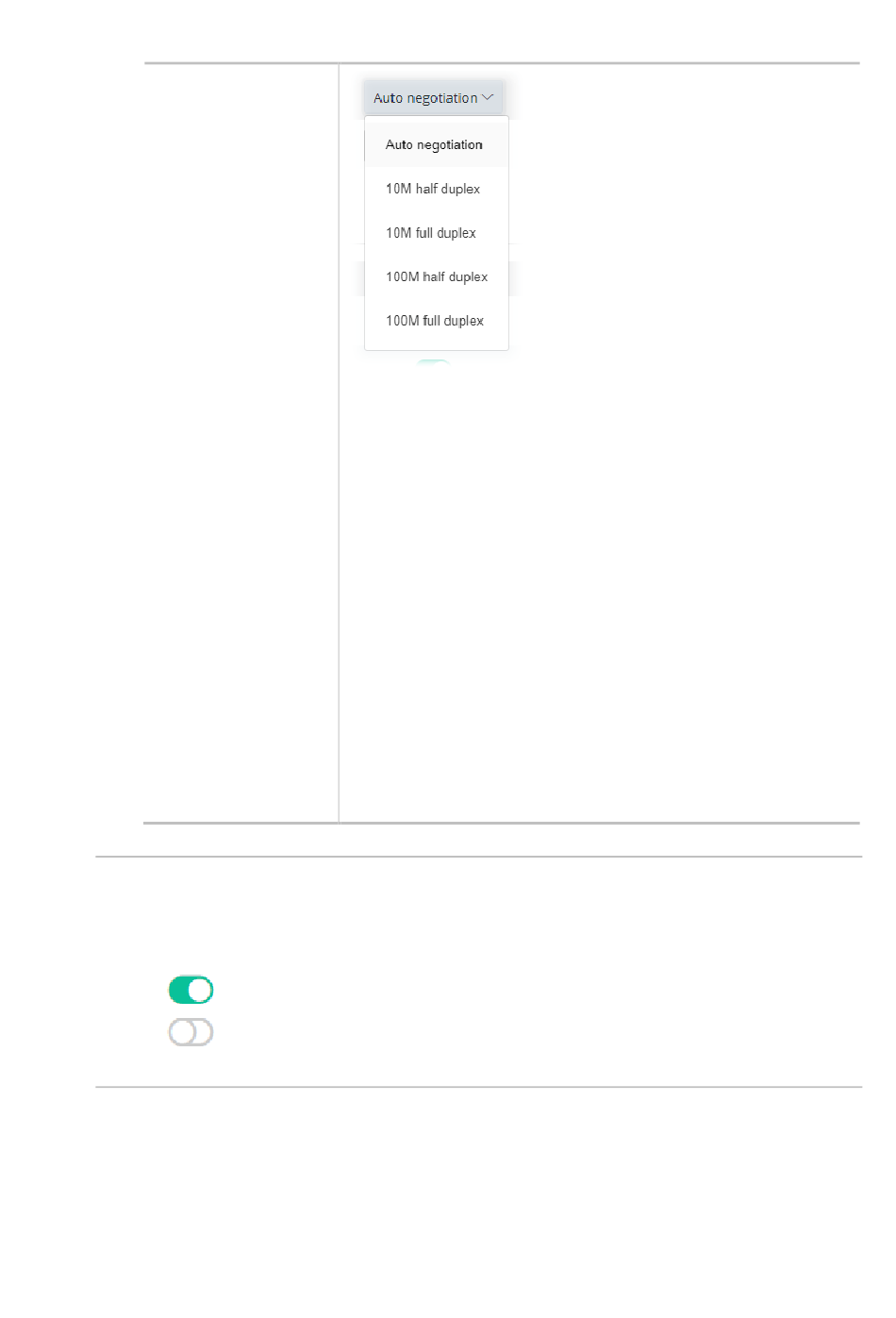

Port speed capabilities:
Auto negotiation - Auto speed with all capabilities.
2.5G - Force speed with 2.5G ability.
1G - Force speed with 1G ability.
10M half duplex - Force speed with 10M ability.
10M full duplex - Force speed with 10M ability.
100M half duplex - Force speed with 100M ability.
100M full duplex - Force speed with 100M ability.
Selecting Auto (auto-negotiation) allows one port to negotiate with a
peer port automatically to obtain the connection speed and duplex
mode that both ends support. When auto-negotiation is turned on, a
port on the switch negotiates with the peer automatically to
determine the connection speed and duplex mode. If the peer port
does not support auto-negotiation or turns off this feature, the switch
determines the connection speed by detecting the signal on the cable
and using half duplex mode. When the switch's auto-negotiation is
turned off, a port uses the pre-configured speed and duplex mode
when making a connection, thus requiring you to make sure that the
settings of the peer port are the same in order to connect.
13
For Port 2 to Port 4
