Duplex
Port Profile
Cancel
Apply
After finishing this web page configuration, please click Apply to save the settings.
Auto(1000M): Auto speed with 1000M ability only.

Auto(10/100M): Auto speed with 10/100M ability.

10M: Force speed with 10M ability.

100M: Force speed with 100M ability.

1000M: Force speed with 1000M ability.

Selecting Auto (auto-negotiation) allows one port to negotiate with a
peer port automatically to obtain the connection speed and duplex
mode that both ends support. When auto-negotiation is turned on, a
port on the switch negotiates with the peer automatically to
determine the connection speed and duplex mode. If the peer port
does not support auto-negotiation or turns off this feature, the switch
determines the connection speed by detecting the signal on the cable
and using half duplex mode. When the switch's auto-negotiation is
turned off, a port uses the pre-configured speed and duplex mode
when making a connection, thus requiring you to make sure that the
settings of the peer port are the same in order to connect.
For SFP fiber module, you might need to manually configure the
speed to match fiber module speed.

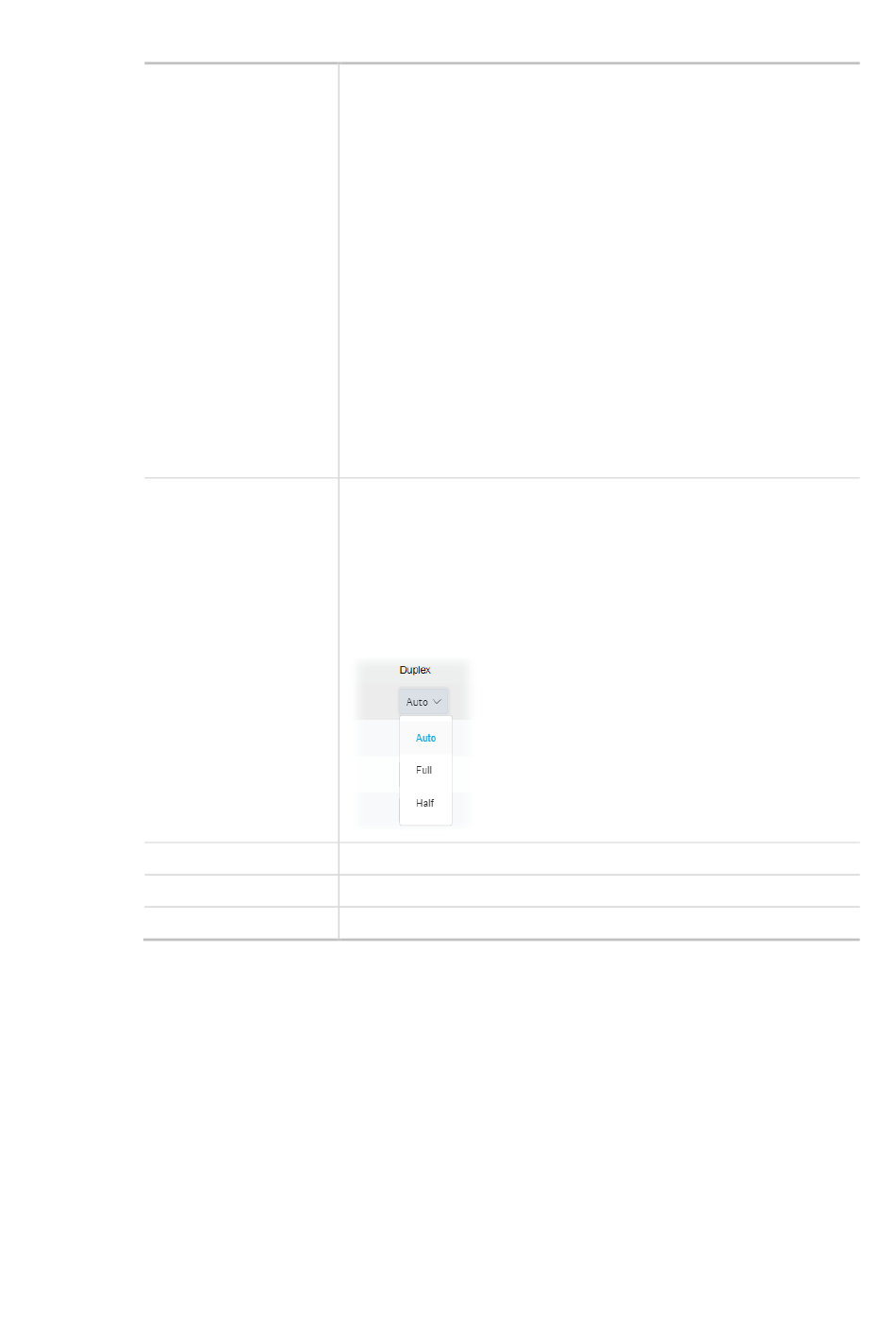

Select the duplex mode for the LAN port.
Auto – Auto duplex with all capabilities.
Full – Auto speed with 10/100/1000M ability only. Allows data
transmission in both directions.
Half - Auto speed with 10/100M ability only. Allows data transmission
in both directions. However, only one device (router or peer's device)
is allowed to transmit data at the same time.
Select a port profile to which the LAN port of VigorSwitch will apply.
Discard current settings and return to the previous page.
Save the current settings and exit the page.
