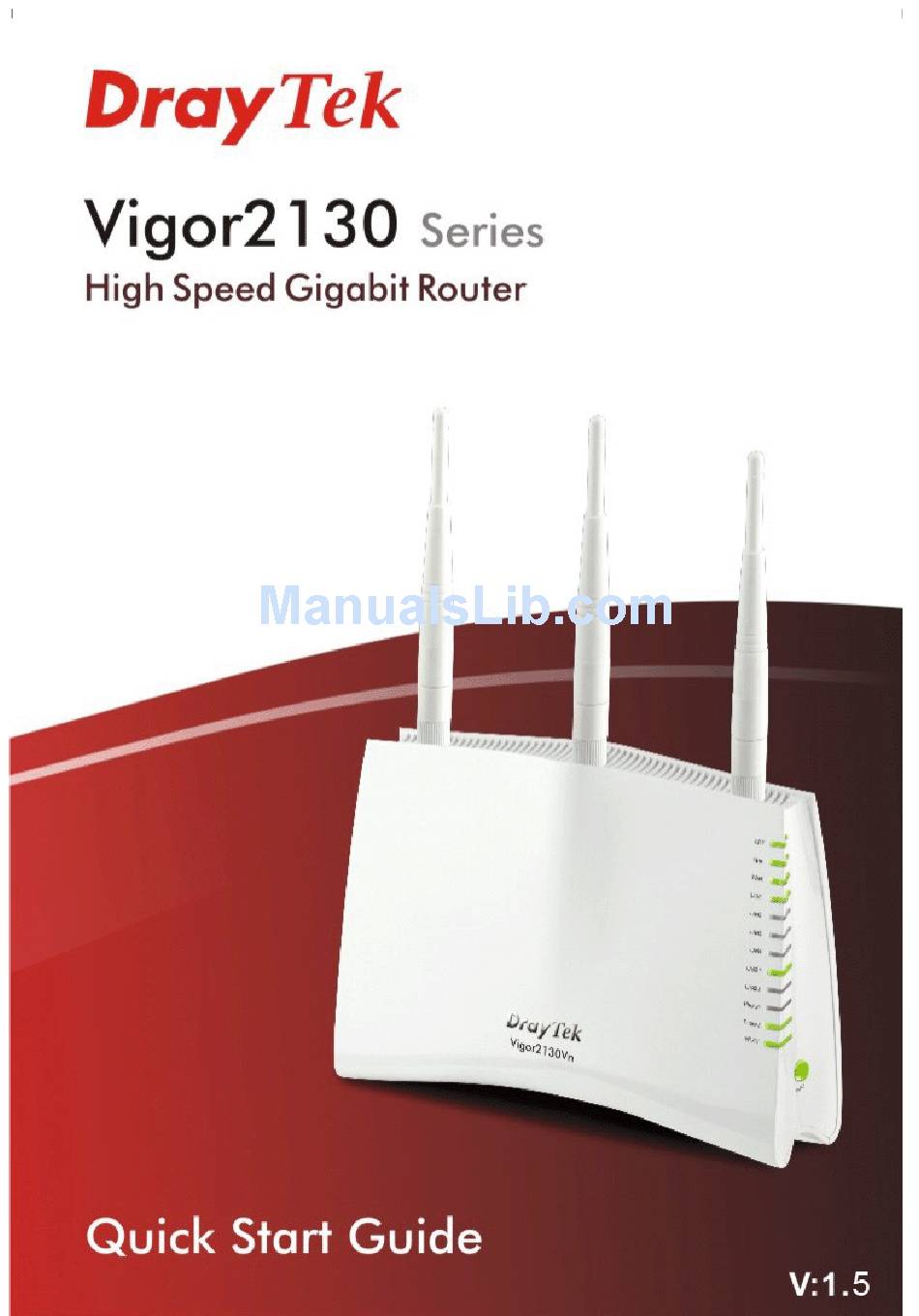

  • Page 1 Vigor2130 Series Quick Start Guide...
  • Page 2 Vigor2130 Series Quick Start Guide...

  • Page 3: Quick Start Guide

    Vigor2130 Series High Speed Gigabit Router Quick Start Guide Version: 1.5 Firmware: V1.5.0.1 Date: 10/01/2011 Vigor2130 Series Quick Start Guide...

  • Page 5: Copyright Information

    Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com Vigor2130 Series Quick Start Guide...

  • Page 6: European Community Declarations

    No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan Product: Vigor2130 Series Router DrayTek Corp. declares that Vigor2130 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

  • Page 7: Table Of Contents

    4.3 Pinging the Router from Your Computer .................. 30 4.4 Checking If the ISP Settings are OK or Not ................31 4.5 Backing to Factory Default Setting If Necessary..............32 4.6 Contacting Your Dealer ......................33 Vigor2130 Series Quick Start Guide...

  • Page 9: Introduction

    The Vigor2130 series are the routers with high speed in data transmission through WAN port and LAN ports. With hardware NAT acceleration, the rate of Vigor2130 series can be greater than 900 Mbps almost. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g.

  • Page 10: Panel Explanation

    The QoS function is active. The DoS/DDoS function is active. Interface Description Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. Vigor2130 Series Quick Start Guide...
  • Page 11 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Vigor2130 Series Quick Start Guide...

  • Page 12: For Vigor2130N

    Press the button once to enable (WLAN LED on) or WLAN disable (WLAN LED off) wireless connection. Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. Vigor2130 Series Quick Start Guide...
  • Page 13 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Vigor2130 Series Quick Start Guide...

  • Page 14: For Vigor2130Vn

    Press the button once to enable (WLAN LED on) or WLAN disable (WLAN LED off) wireless connection. Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. Vigor2130 Series Quick Start Guide...
  • Page 15 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Vigor2130 Series Quick Start Guide...

  • Page 16: Package Content

    The type of the power adapter depends on the country that the router will be installed. * The maximum power consumption is 17-23 Watt. UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter Vigor2130 Series Quick Start Guide...

  • Page 17: Installing Your Router

    4 PCs directly. Connect Phone port to a conventional analog telephone. Connect detachable antennas to the router for Vigor2130 series (n model). Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.

  • Page 18: Stand Installation

    The Vigor2130 must be placed erectly. Therefore you have to install a stand onto the router to make it standing firmly. Please follow the figures listed below to finish the installation. Vigor2130 Series Quick Start Guide...

  • Page 19: Printer Installation

    Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). Connect the printer with the router through USB port. Open Start->Settings-> Printer and Faxes. Vigor2130 Series Quick Start Guide...
  • Page 20 Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor2130 Series Quick Start Guide...
  • Page 21 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2130 Series Quick Start Guide...
  • Page 22 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and UPR name. Vigor2130 Series Quick Start Guide...
  • Page 23 Printer Server and click it; then click the What types of printers are compatible with Vigor router? link. Note 2: Vigor router supports printing request from computers via LAN ports but not WAN port. Vigor2130 Series Quick Start Guide...
  • Page 24 This page is left blank. Vigor2130 Series Quick Start Guide...

  • Page 25: Configuring Web

    The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity. Vigor2130 Series Quick Start Guide...

  • Page 26: Basic Configuration

    Now, the Main Screen for user operation will appear. Click Quick Start Wizard. The home page will change slightly in accordance with the router you have. The welcome page will be shown as below. Please click Next. Vigor2130 Series Quick Start Guide...
  • Page 27 Confirm Password. Then click Next to continue. After restarting the router, new password must be typed for accessing into router web page. On the next page as shown below, please choose time zone for your router. Then click Next for next step. Vigor2130 Series Quick Start Guide...
  • Page 28 PPPoE mode if the ISP provides you PPPoE interface. Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. Vigor2130 Series Quick Start Guide...
  • Page 29 DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. PPPoE: if you click PPPoE as the protocol, please manually enter the Username/Password provided by your ISP and all the required information. Then, click Next. Vigor2130 Series Quick Start Guide...
  • Page 30 Then, click Next. For the user of Vigor2130, please skip this step. Select an appropriate encryption mode to improve the security and privacy of your wireless data packets. WEP: if you choose WEP as the security configuration, you have to specify encryption key and authentication mode. Vigor2130 Series Quick Start Guide...
  • Page 31 WPA-PSK: if you choose WPA-PSK as the security configuration, you have to specify WPA mode, algorithm and pre-shared key. Vigor2130 Series Quick Start Guide...
  • Page 32 WPA mode, algorithm, Radius server, Radius server port and Radius server secret respectively. WPS: if you choose WPS as the security configuration, you can press Start WPS PIN and Start WPS PBC to complete the wireless connection. Vigor2130 Series Quick Start Guide...
  • Page 33 Click Next to continue. Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Now, you can enjoy surfing on the Internet. Vigor2130 Series Quick Start Guide...
  • Page 34 This page is left blank. Vigor2130 Series Quick Start Guide...

  • Page 35: Trouble Shooting

    Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2130 Series Quick Start Guide...
  • Page 36 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor2130 Series Quick Start Guide...
  • Page 37 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2130 Series Quick Start Guide...

  • Page 38: Pinging The Router From Your Computer

    Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2130 Series Quick Start Guide...

  • Page 39: Checking If The Isp Settings Are Ok Or Not

    Open WAN>>Internet Access page and then check whether the ISP settings are set correctly. Use the Connection Type drop down list to choose Static IP/DHCP/PPPoE/PPTP/L2TP for reviewing the settings that you configured previously. Vigor2130 Series Quick Start Guide...

  • Page 40: Backing To Factory Default Setting If Necessary

    While the router is running (ACT LED blinking), press the Factory Reset button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. Vigor2130 Series Quick Start Guide...

  • Page 41: Contacting Your Dealer

    If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2130 Series Quick Start Guide...
