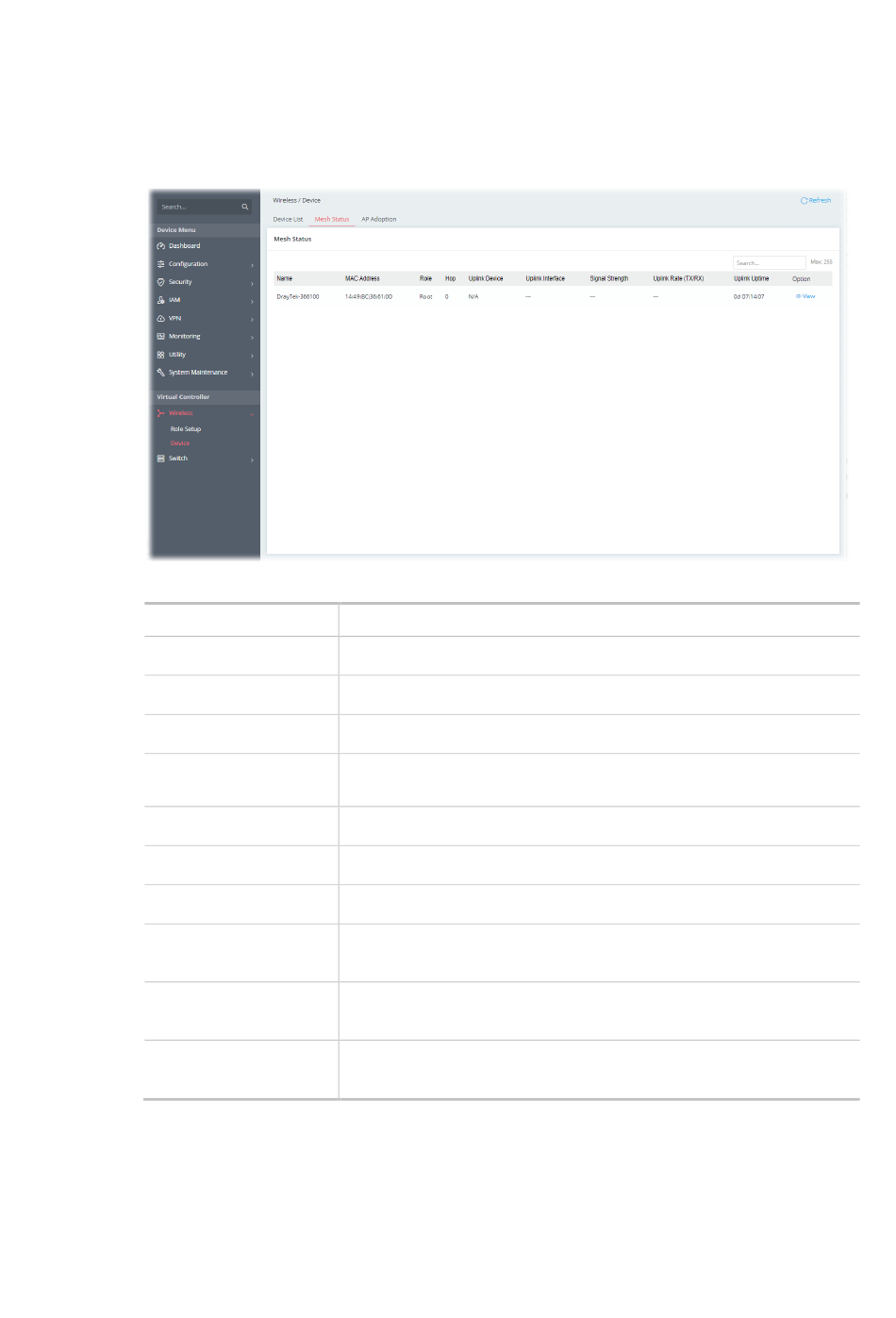

II-5-2-2 Mesh Status
Display general information of the Mesh network.
This page is available only when Mesh is enabled (Virtual Controller>>Role Setup).
Available settings are explained as follows:
Item
Name
MAC Address
Role
Hop
Uplink Device
Uplink Interface
Signal Strength
Uplink Rate(Tx/RX)
Uplink Uptime
Option
Description
Displays the name of the device (for identification).
Displays the MAC address of the device.
Displays the role of the device.
Displays the number of Wireless links from the device to Root.
"0" means the device is using a Wired uplink.
Displays the MAC address of the device that this device connects to.
Displays the interface which the device is using to connect to uplink.
Displays the signal strength of the device to its uplink.
It is available only when VigorMesh is selected as Mesh Protocol.
Displays the link rate of the device to its uplink.
It is available only when VigorMesh is selected as Mesh Protocol.
Displays how long the device is online.
Click View to modify the selected mesh device.
