C
ONFIGURING THE

Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a
configuration change has been made on a page, be sure to click on the
Apply button to confirm the new setting. The following table summarizes
the web page configuration buttons.
Button
Apply
Revert
Help
Notes: 1. To ensure proper screen refresh, be sure that Internet Explorer
2. When using Internet Explorer 5.0, you may have to manually

Panel Display

The web agent displays an image of the switch's ports. The Mode can be
set to display different information for the ports, including Active (i.e., up
or down), Duplex (i.e., half or full duplex), or Flow Control (i.e., with or
without flow control). Clicking on the image of a port opens the Port
Configuration page as described on page 3-107.
3-4
S
WITCH

Table 3-1 Configuration Options

Action
Sets specified values to the system.
Cancels specified values and restores current values prior to
pressing Apply.
Links directly to web help.
5.x is configured as follows: Under the menu "Tools/Internet
Options/General/Temporary Internet Files/Settings," the
setting for item "Check for newer versions of stored pages"
should be "Every visit to the page."
refresh the screen after making configuration changes by
pressing the browser's refresh button.

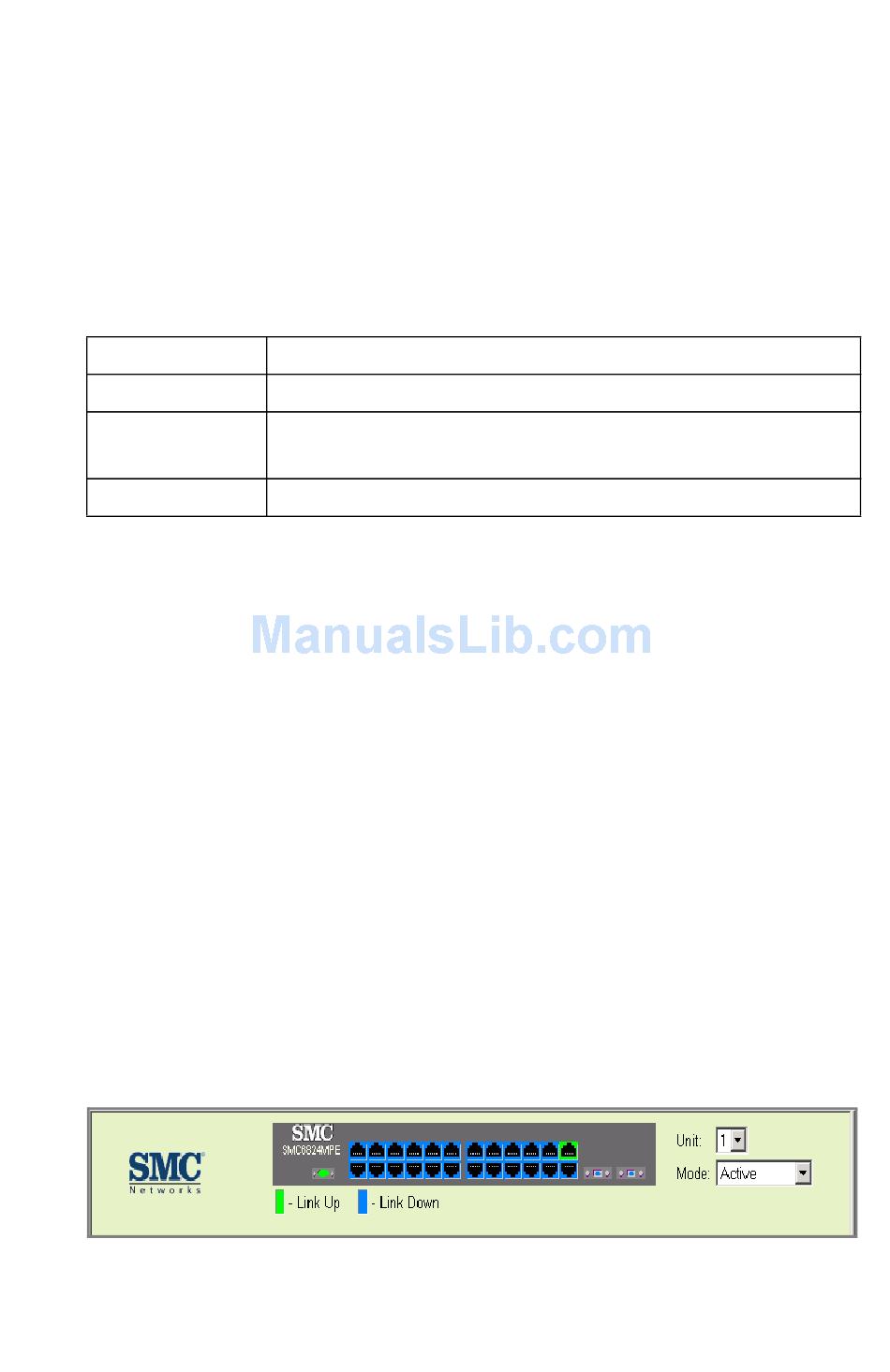

Figure 3-2 Ports Panel
