• Class of Service Value – Sets a CoS value for a new IP port. Note that
"0" represents low priority and "7" represent high priority.
Web – Click Priority, IP Port Status. Set IP Port Priority Status to Enabled.
Web – Click Priority, IP Port Priority. Select a port or trunk from the
Interface field. Enter the port number for a network application in the IP
Port Number box and the new CoS value in the Class of Service box, and
then click Add IP Port.

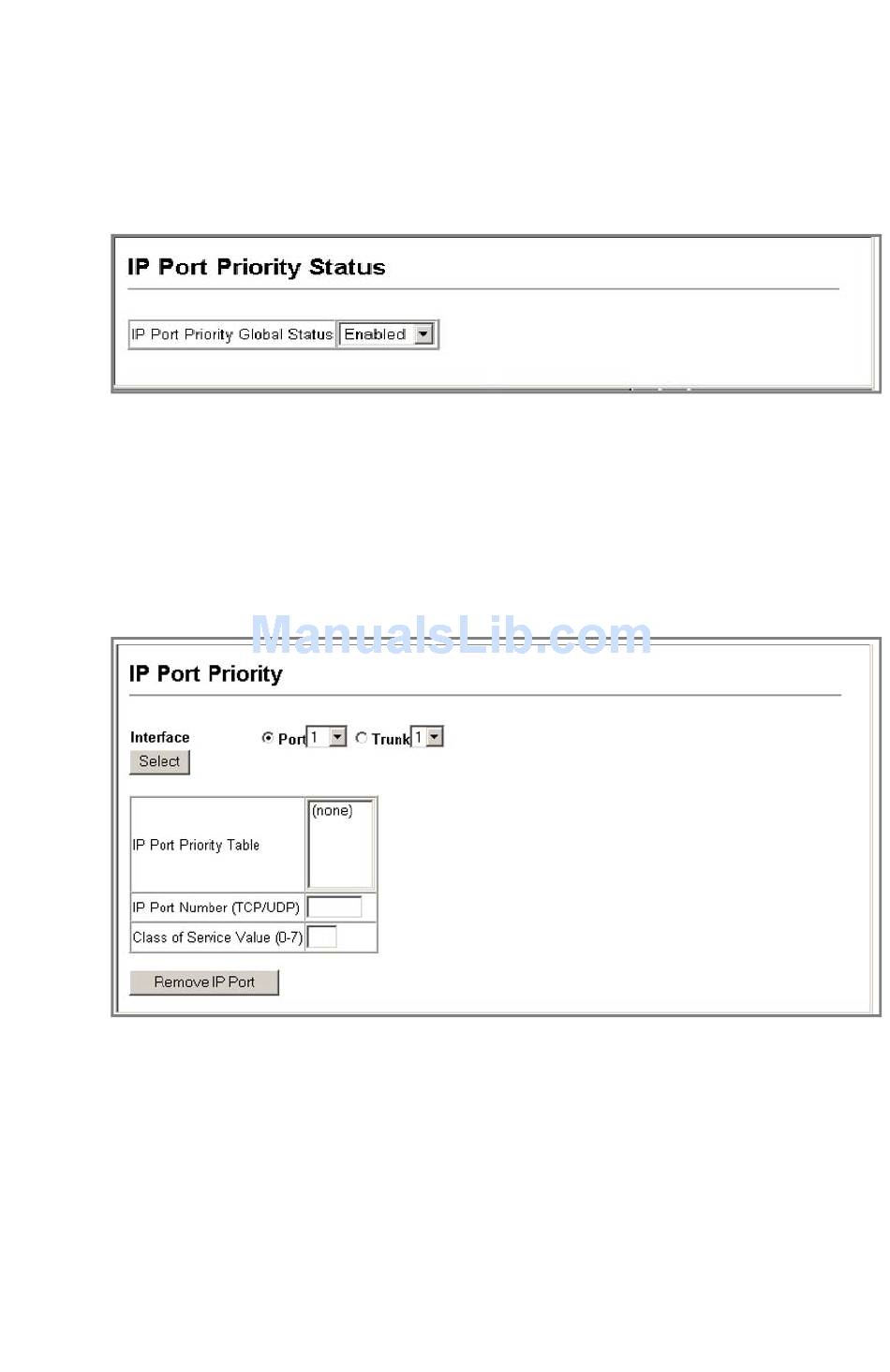

Figure 3-85 IP Port Priority Status
Figure 3-86 IP Port Priority
C S
LASS OF ERVICE
C
ONFIGURATION
3-191
