C
ONFIGURING THE
Command Usage
• This switch provides four priority queues for each port. It uses
Weighted Round Robin to prevent head-of-queue blockage.
• The default priority applies for an untagged frame received on a port
set to accept all frame types (i.e, receives both untagged and tagged
frames). This priority does not apply to IEEE 802.1Q VLAN tagged
frames. If the incoming frame is an IEEE 802.1Q VLAN tagged
frame, the IEEE 802.1p User Priority bits will be used.
• If the output port is an untagged member of the associated VLAN,
these frames are stripped of all VLAN tags prior to transmission.
Command Attributes
• Default Priority* – The priority that is assigned to untagged frames
received on the specified interface. (Range: 0 - 7, Default: 0)
• Number of Egress Traffic Classes – The number of queue buffers
provided for each port.
* CLI displays this information as "Priority for untagged traffic."
Web – Click Priority, Default Port Priority or Default Trunk Priority.
Modify the default priority for any interface, then click Apply.
3-178
S
WITCH

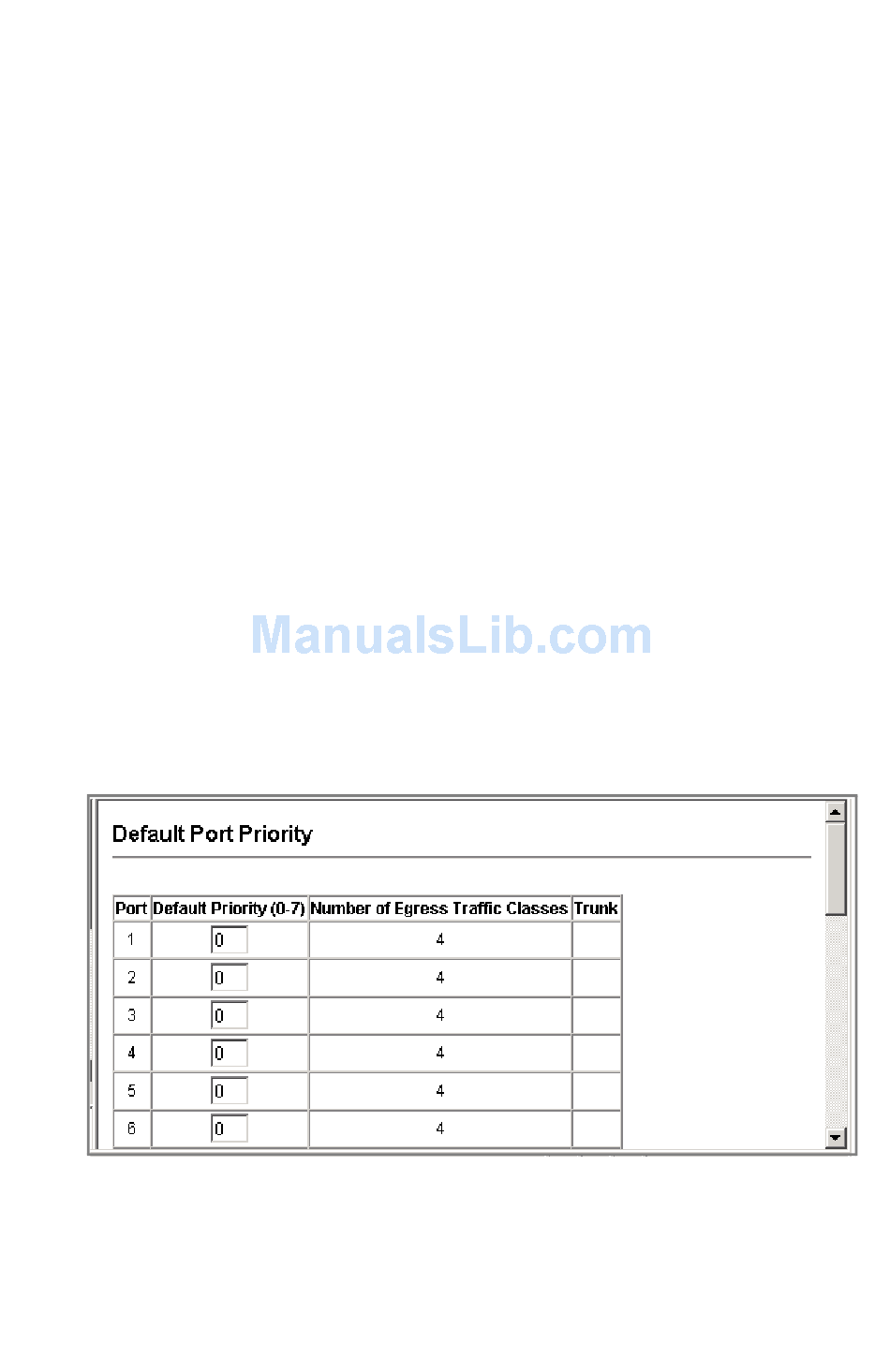

Figure 3-77 Default Port Priority
