Manual Configuration; Figure 3-6 Vlan Ip Configuration - SMC Networks 6824MPE INT Management Manual

• Subnet Mask – This mask identifies the host address bits used for
routing to specific subnets.
• Gateway IP Address – IP address of the gateway router between this
device and management stations that exist on other network segments.
• MAC Address – The MAC address of this switch.
• Restart DHCP – Releases the current IP address and requests a new
IP address from the DHCP server.

Manual Configuration

Web – Click System, IP Configuration. Specify the management interface,
IP address and default gateway, then click Apply.
CLI – Specify the management interface, IP address and default gateway.
Console#config
Console(config)#interface vlan 1
Console(config-if)#ip address 10.2.13.30 255.255.255.0
Console(config-if)#exit
Console(config)#ip default-gateway 10.2.13.254
Console(config)#

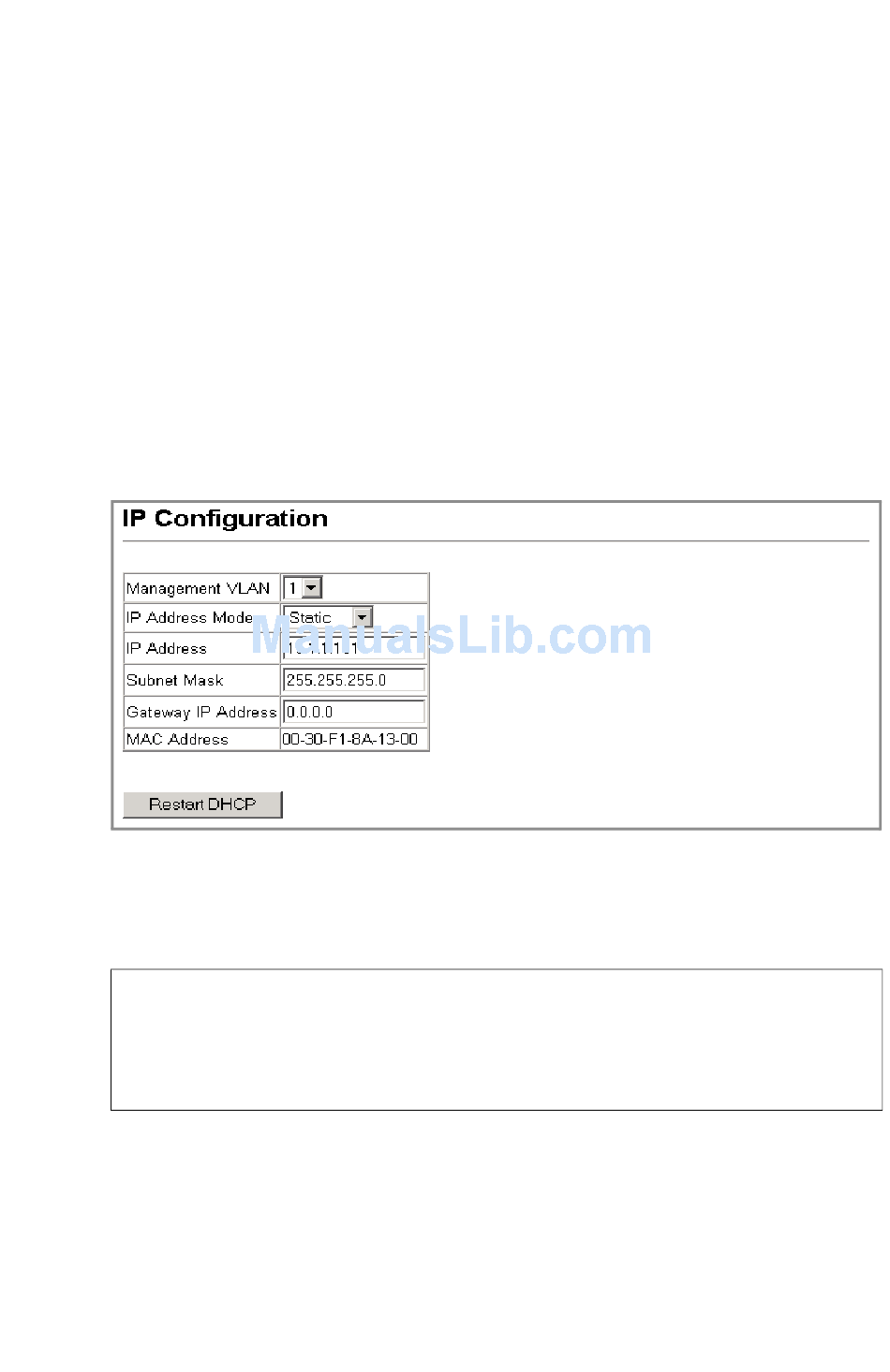

Figure 3-6 VLAN IP Configuration
