Web – Specify the action (i.e., Permit or Deny). Specify the source and/or
destination addresses. Select the address type (Any, Host, or IP). If you
select "Host," enter a specific address. If you select "IP," enter a subnet
address and the mask for an address range. Set any other required criteria,
such as service type, protocol type, or TCP control code. Then click Add.

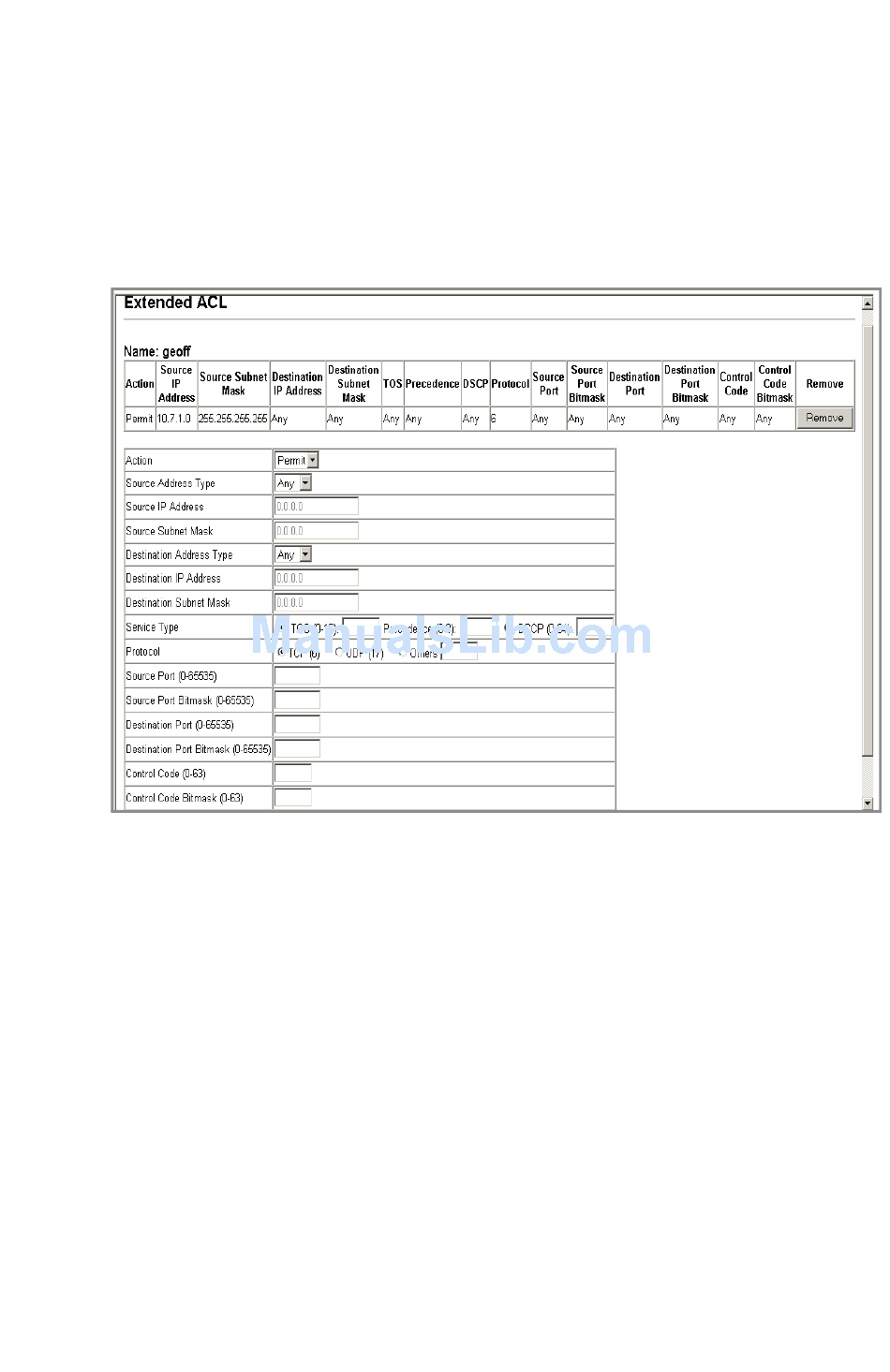

Figure 3-41 ACL Configuration - Extended IP

CLI – This example adds three rules:
1. Accept any incoming packets if the source address is in subnet
10.7.1.x. For example, if the rule is matched; i.e., the rule (10.7.1.0 &
255.255.255.0) equals the masked address (10.7.1.2 & 255.255.255.0),
the packet passes through.
2. Allow TCP packets from class C addresses 192.168.1.0 to any
destination address when set for destination TCP port 80 (i.e., HTTP).
A C
CCESS ONTROL
L
ISTS
3-93
