Figure 3-22 Configuring Snmp Community Strings - SMC Networks 6824MPE INT Management Manual

C
ONFIGURING THE
• Community String – A community string that acts like a password
and permits access to the SNMP protocol.
Default strings: "public" (read-only access), "private" (read/write
access)
Range: 1-32 characters, case sensitive
• Access Mode – Specifies the access rights for the community string:
- Read-Only – Authorized management stations are only able to
retrieve MIB objects.
- Read/Write – Authorized management stations are able to both
retrieve and modify MIB objects.
Web – Click SNMP, SNMP Configuration. Add new community strings as
required, select the access rights from the Access Mode drop-down list,
then click Add.

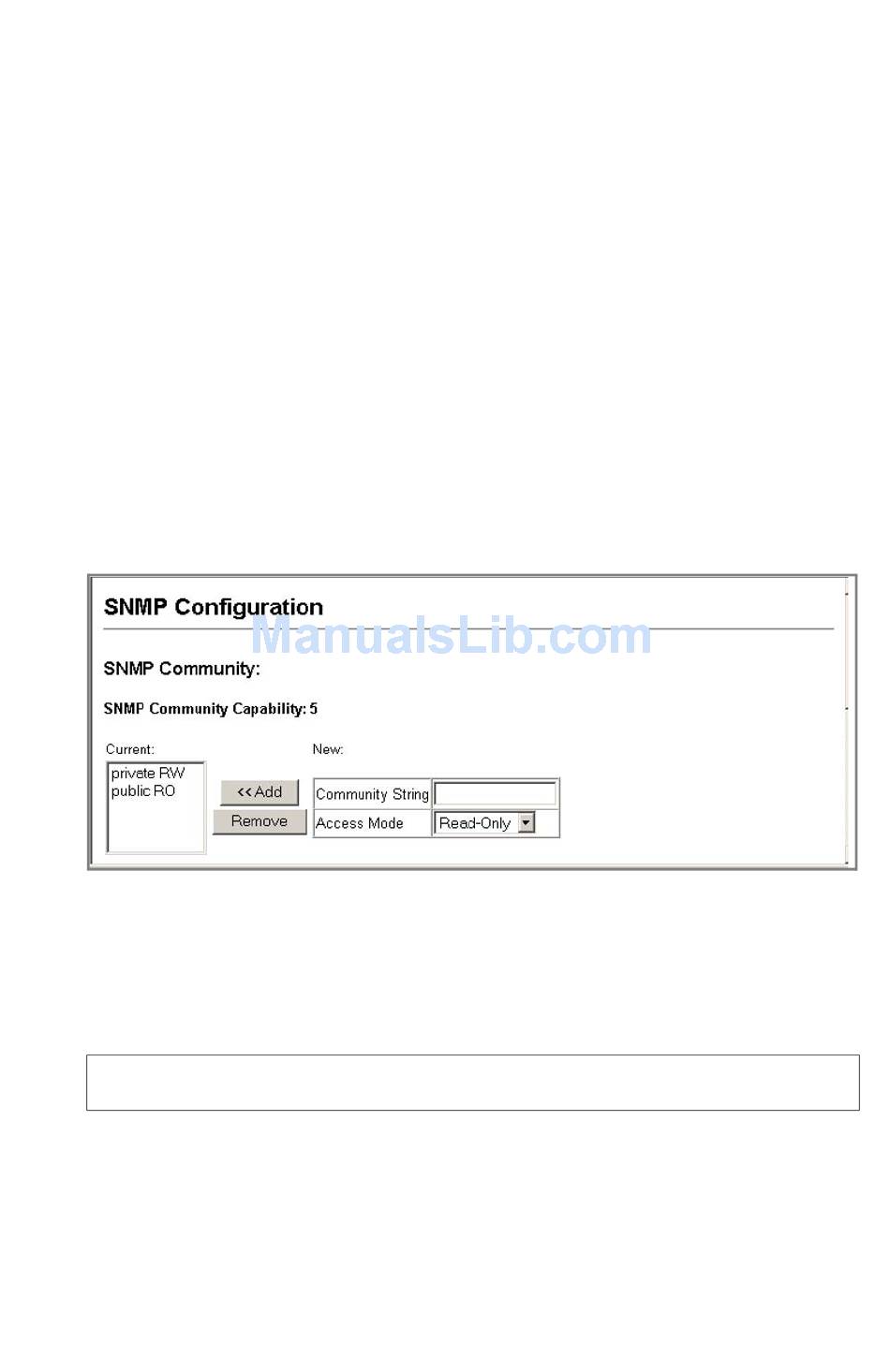

Figure 3-22 Configuring SNMP Community Strings

CLI – The following example adds the string "spiderman" with read/write
access.
Console(config)#snmp-server community spiderman rw
Console(config)#
3-48
